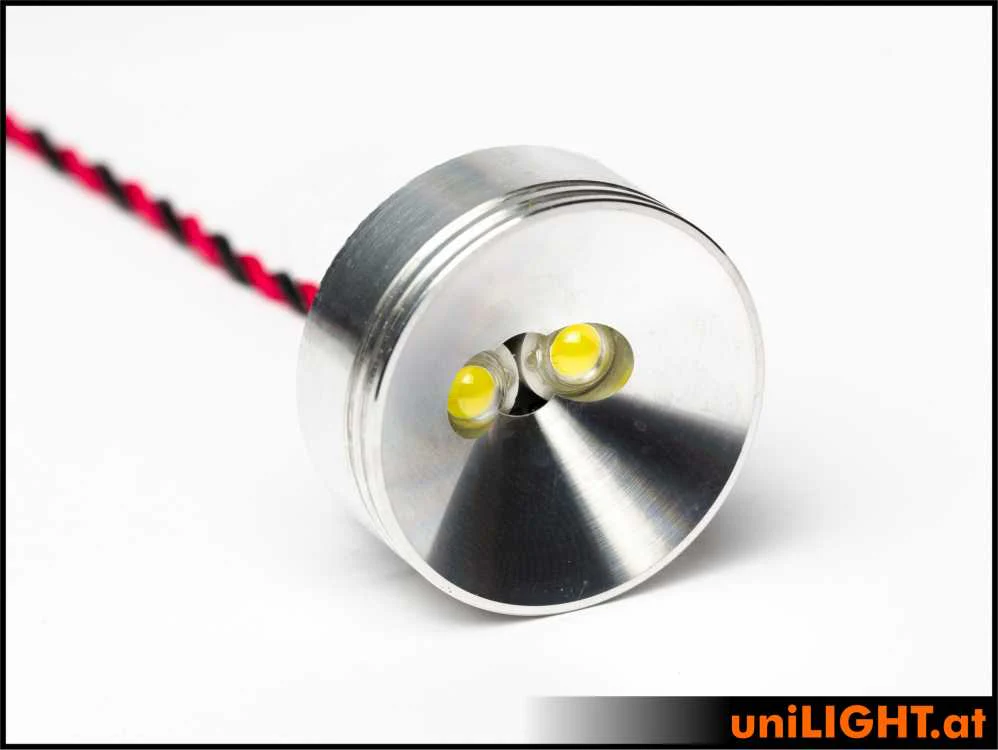

UniLight 30mm Alu-Spotlight, 4Wx2 - White SPOT30-040x2-WE

This innovative 30mm category spotlight is suitable for all larger models and provides, on the basis of its enormous light power and wide angle beam, maximum visibility under all conditions.

Ideal in tiptanks, hoods or also as landing light in big high-winger. Due to the short construction, they are perfectly suitable for fuselage nose and drop down spotlight.

Direct operation with 2S LiPo (8V). With 3S (12V), the additional enclosed resistor has to be soldered in or use a 4W adaption cable (accessories). The reflector operates as heatsink, which means permanent operation is possible - provided that air circulation is available (at flight). If this is not the case, a duty cycle of 5-10 minuntes should not be exceeded. Please check operating temperatures after installation!

High-quality aluminium reflector

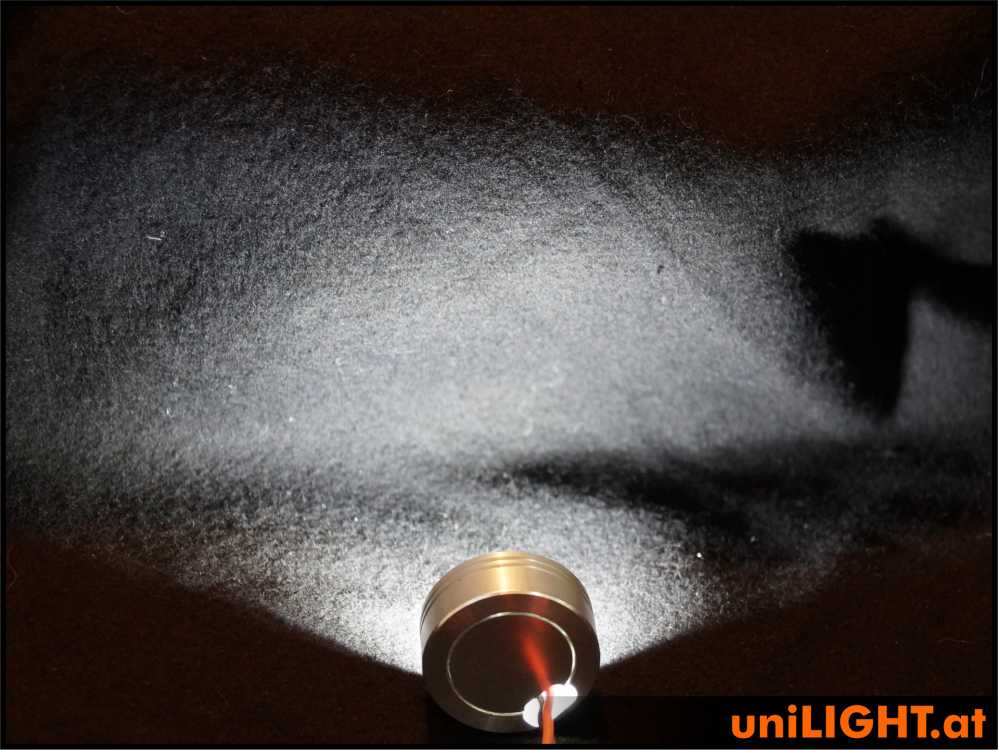

Wide angle beam: 100°
Completely made of massive aluminium, CNC manufactured
Extremely short construction
x2-technology for doubling light intensity

Performance: 2x4W reference power
Voltage: 8V, use enclosed resistor additionally for 12V!
Electricity: 0.7A
Beam angle: ~100°
Light intensity: 100x2 Lumen WHITE
Light intensity: 95x2 Lumen WARMWHITE
Dimension: D30x12mm
Weight: 13g (without cable)

Ready to use with 1m connection cable and additional resistor for 3S operation

With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!

30mm PRO Spotlight

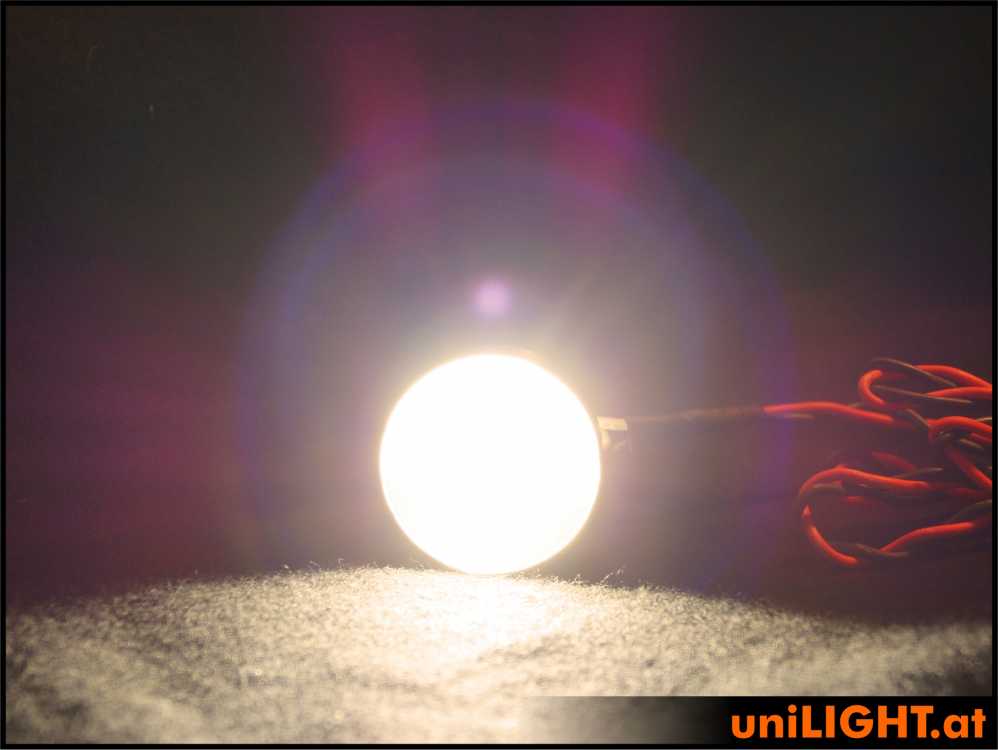

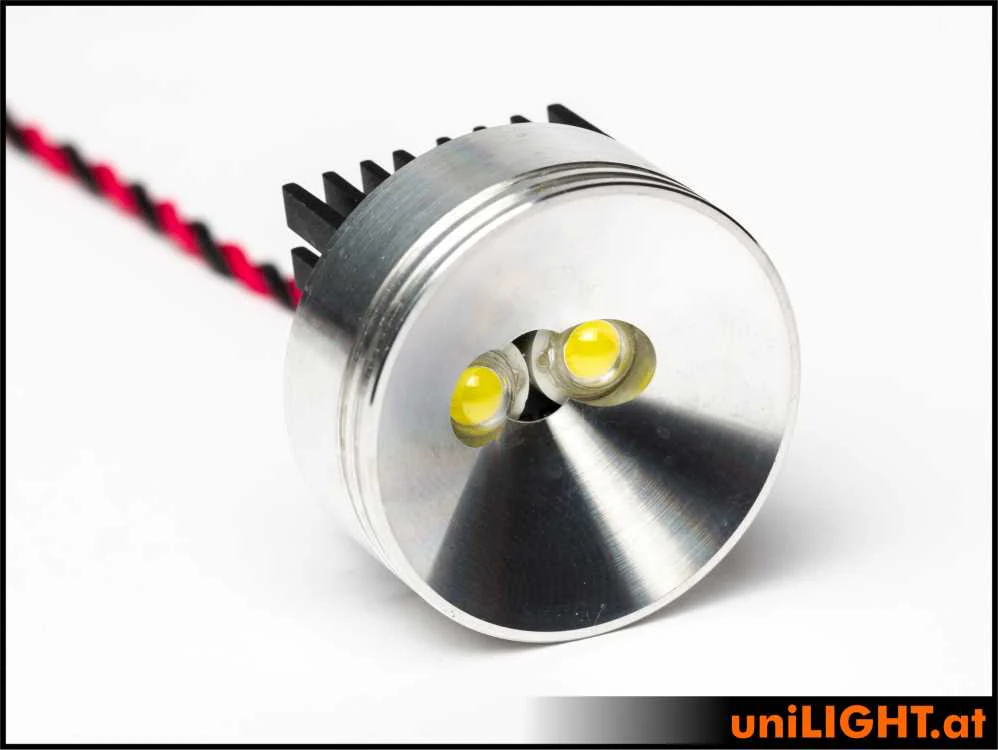

UniLight 30mm Alu-Spotlight, 8Wx2, T-Fuse - White
