16 Pin Click Connect Multipin Connectors Ideal for Wing or Stab Wiring from IRC Emcotec A85250 / 2853

16 Pin Click Connect Multipin Connectors Ideal for Wing or Stab Wiring from IRC Emcotec A85250 / 2853

The Click Connect Fuselage plug kit is a versatile plugging system for self crimping. Polarity protected and lockable plugs and sockets e. g. for wiring of up to six servos.

The pins can be assigned freely, combinations of e. g. wing servos, lighting modules or smoke pumps are possible. With the two pin variant for example battery cables can be equipped with a secure plugging connection.

The plugs and sockets must be crimped by the customer.

This set is supplied with the Medium Pin A85252 / 2865

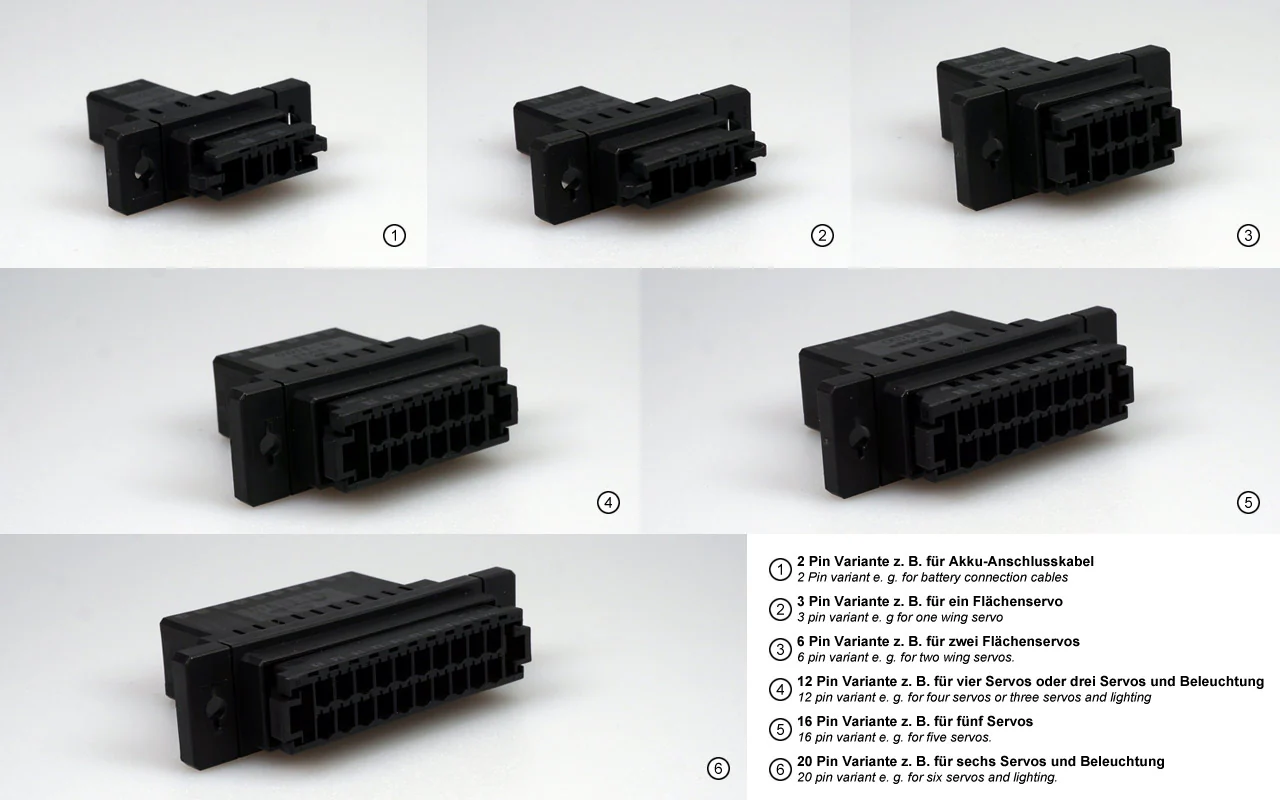

Variant description and examples
2 Pin variant e. g. for battery connection cables
3 pin variant e. g for a single wing servo
6 pin variant e. g. for two wing servos.
12 pin variant e. g. for four servos or three servos and lighting
16 pin variant e. g. for five servos
20 pin variant e. g. for six servos and lighting

Please Note: Nexus offer the Crimp Die for the Powerbox & Emcotec Ratchet Crimp tool.

Delivery contents: 1 plug housing, 1 socket housing, contact pins for plug and socket housings according to pin variant.
