Original: $4.49
-65%$4.49
$1.57The Story

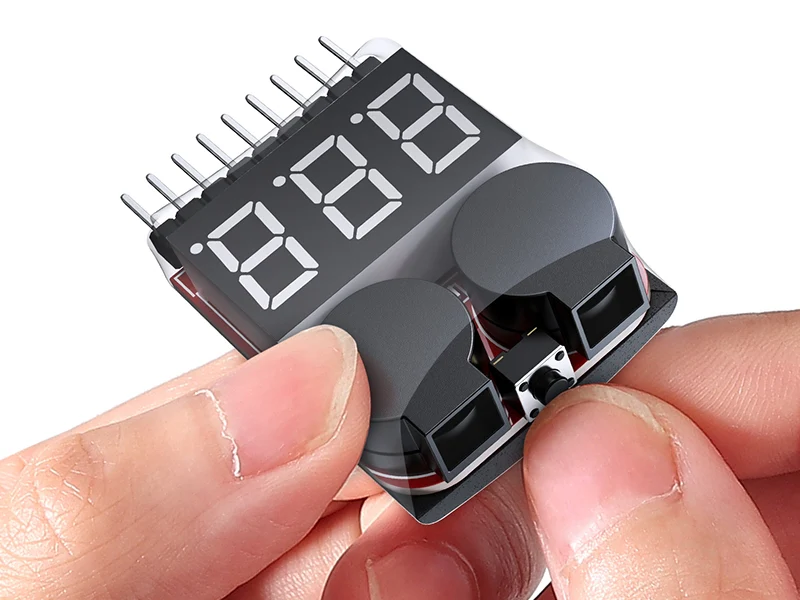

1S-8S Lipo Battery Low Voltage Alarm with Cell Voltage Checker Display
This unit is designed to be used on board the model to give a low voltage warning that can be heard from the air with the added feature of a up to 8s battery cell checker.
Use for 1-8s Lipo/Li-ion/LiMn/Li-Fe.
Voltage detection precision: 0.01V.
Unit voltage display range: 0.5V-4.5V.
Total voltage display range: 0.5V-36V.
1S test mode voltage range: 3.7v-30v.

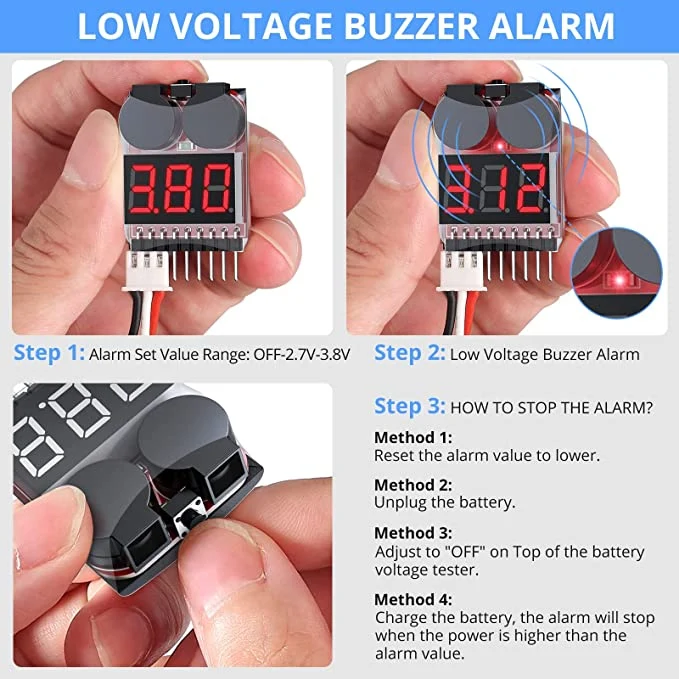

Low voltage alarm mode for 2-8S.
Alarm set value range: OFF-2.7V-3.8V.
When the voltage is below the set value, it will buzzer with red LED light, pre-set value 3.3V.
Push key which can change the voltage settings and save.
Size: 3.9cm x 2.4cm x 0.9cm
Weight 0.015 grams
N.B. The Smart Guard connects directly to JST-XH and JST-EH type balance connectors. Please use the O-FS-BATP balance board with O-FS-BLEAD for Thunderpower/Flightpower or O-FS-BAPQ with O-FS-BLEAD for Polyquest type connectors.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
1S-8S Lipo Battery Low Voltage Alarm with Cell Voltage Checker Display
This unit is designed to be used on board the model to give a low voltage warning that can be heard from the air with the added feature of a up to 8s battery cell checker.
Use for 1-8s Lipo/Li-ion/LiMn/Li-Fe.
Voltage detection precision: 0.01V.
Unit voltage display range: 0.5V-4.5V.
Total voltage display range: 0.5V-36V.
1S test mode voltage range: 3.7v-30v.
Low voltage alarm mode for 2-8S.
Alarm set value range: OFF-2.7V-3.8V.
When the voltage is below the set value, it will buzzer with red LED light, pre-set value 3.3V.
Push key which can change the voltage settings and save.
Size: 3.9cm x 2.4cm x 0.9cm
Weight 0.015 grams
N.B. The Smart Guard connects directly to JST-XH and JST-EH type balance connectors. Please use the O-FS-BATP balance board with O-FS-BLEAD for Thunderpower/Flightpower or O-FS-BAPQ with O-FS-BLEAD for Polyquest type connectors.
