Castle Creations 14XX SERIES ENDBELL REPLACEMENT KIT CC011-0133-00
HomeStore

Castle Creations 14XX SERIES ENDBELL REPLACEMENT KIT CC011-0133-00

Castle Creations 14XX SERIES ENDBELL REPLACEMENT KIT CC011-0133-00

$8.84

Original: $25.25

-65%
Castle Creations 14XX SERIES ENDBELL REPLACEMENT KIT CC011-0133-00—

$25.25

$8.84

The Story

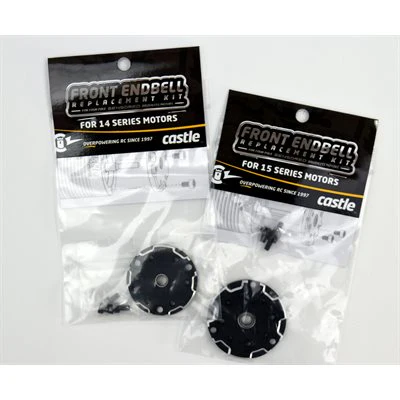

Castle Creations 14XX SERIES ENDBELL REPLACEMENT KIT CC011-0133-00

FOR 14XX SERIES SENSORED MOTORS

PACKAGE CONTAINS:

• Front Endbell with Ball Bearing

• Endbell Screws M3 x 5mm (Qty. 3)

Instructions:

  • Remove front endbell screws using a 2.5mm hex key.
  • Pull damaged endbell away, keeping shaft and endbell concentric. Rotating endbell may help break it free.
  • Replace with the new endbell. The rotor will be magnetically attracted to the stator, so the endbell must force the rotor back to the center.
  • Apply removable threadlocker to threads of the new screws and torque until snug.

Description

Castle Creations 14XX SERIES ENDBELL REPLACEMENT KIT CC011-0133-00

FOR 14XX SERIES SENSORED MOTORS

PACKAGE CONTAINS:

• Front Endbell with Ball Bearing

• Endbell Screws M3 x 5mm (Qty. 3)

Instructions:

  • Remove front endbell screws using a 2.5mm hex key.
  • Pull damaged endbell away, keeping shaft and endbell concentric. Rotating endbell may help break it free.
  • Replace with the new endbell. The rotor will be magnetically attracted to the stator, so the endbell must force the rotor back to the center.
  • Apply removable threadlocker to threads of the new screws and torque until snug.
