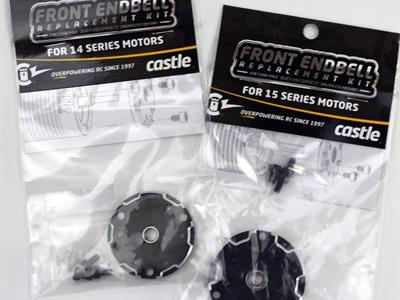

Castle Creations 15XX SERIES ENDBELL REPLACEMENT KIT CC011-0134-00
HomeStore

Castle Creations 15XX SERIES ENDBELL REPLACEMENT KIT CC011-0134-00

Castle Creations 15XX SERIES ENDBELL REPLACEMENT KIT CC011-0134-00

$8.84

Original: $25.25

-65%
Castle Creations 15XX SERIES ENDBELL REPLACEMENT KIT CC011-0134-00—

$25.25

$8.84

The Story

Castle Creations 15XX SERIES ENDBELL REPLACEMENT KIT CC011-0134-00

FOR 15 SERIES SENSORED MOTORS

PACKAGE CONTAINS:

  • Front Endbell with Ball Bearing
  • Endbell Screws M3 x 5mm (Qty. 3)
Instructions:
  • Remove front endbell screws using a 2.5mm hex key.
  • Pull damaged endbell away, keeping shaft and endbell concentric. Rotating endbell may help break it free.
  • Replace with the new endbell. The rotor will be magnetically attracted to the stator, so the endbell must force the rotor back to the center.
  • Apply removable threadlocker to threads of the new screws and torque until snug.

Description

Castle Creations 15XX SERIES ENDBELL REPLACEMENT KIT CC011-0134-00

FOR 15 SERIES SENSORED MOTORS

PACKAGE CONTAINS:

  • Front Endbell with Ball Bearing
  • Endbell Screws M3 x 5mm (Qty. 3)
Instructions:
  • Remove front endbell screws using a 2.5mm hex key.
  • Pull damaged endbell away, keeping shaft and endbell concentric. Rotating endbell may help break it free.
  • Replace with the new endbell. The rotor will be magnetically attracted to the stator, so the endbell must force the rotor back to the center.
  • Apply removable threadlocker to threads of the new screws and torque until snug.
