CHASERVO DS09 Micro Servo 9kg/0.10@8.4v CHA-DS09

CHASERVO DS09 Micro Servo CHA-DS09

9 mm 9 kg DS – Servo

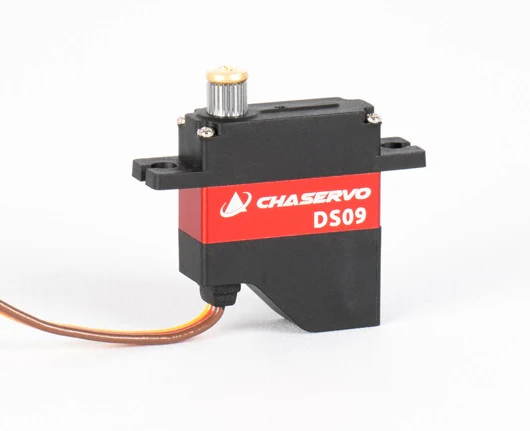

The Chaservo DS09 is a high-quality 9mm digital servo, featuring dual ball bearings and a robust metal gearbox. This precise and powerful servo is well-suited for a variety of model building applications, particularly in confined spaces like small sail models and HLGs. With a broad voltage range from 4.8V to 8.4V, the programmable Chaservo DS09 stands out as a versatile and dependable servo with impressive performance. Even at 4.8V, it delivers a stall torque of 6kg and achieves a quick positioning time of just 0.16s. The aluminum-reinforced, high-strength technopolymer housing ensures reliable vibration damping for long-lasting durability.

Powerful and precise

The DS09 is equipped with a powerful digital motor and a robust metal gearbox. It achieves a stalling torque of 6 kg and a maximum speed of 0.16 s/60°. This makes it an ideal servo for demanding applications such as model airplanes, micro RC cars, drones and robots.

Holding and operating torque

Impressively fast

Robust and Durable

The DS09 is equipped with an aluminum-reinforced, high-strength technopolymer housing. This makes it a robust and durable servo that can also be used in extreme conditions.

Application areas

• Model airplanes
• Micro RC-Cars
• Drones
• Robots
• and many other small applications

In the box:

• 2 high strength plastic output arms
• 2 arm retaining screws
• 4 mounting screws
• 2 wing mounting brackets
