$85.32

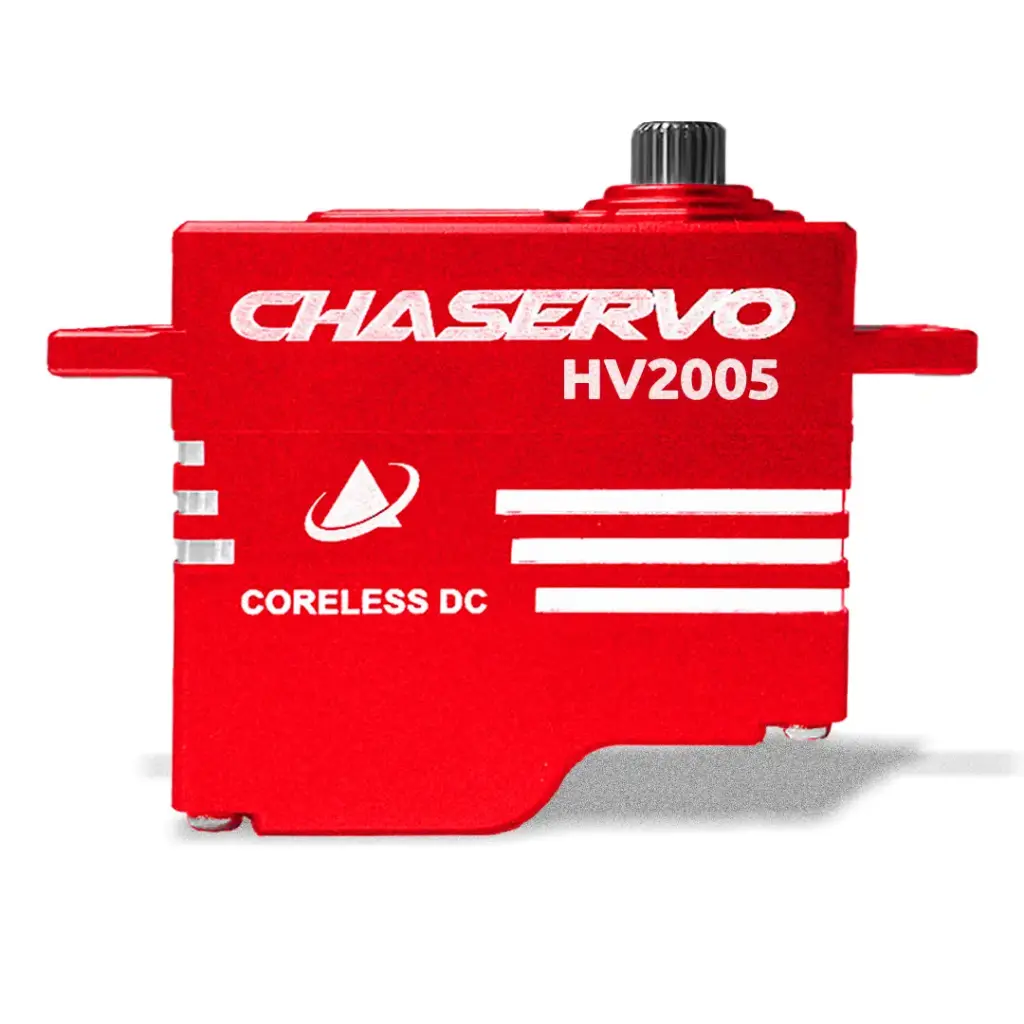

CHASERVO HV2005 Servo 15kg/0.05s 8.4V CHA-HV2005—
$85.32
The Story
CHASERVO HV2005 Servo 15kg/0.05s 8.4V CHA-HV2005
Specifications
| Servo Data | |
|---|---|
| Brand | Chaservo |
| Weight | 81g |
| Dimensions | 40.5 x 20 x 40 mm |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 4.8 – 8.4V |
| Output Shaft Spline | 25T, 0.236 in (6 mm) |
| Ball Bearing | 2 x Ball Bearing |
| Position sensor | Potentiometer |
| Motor | Coreless DC |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 500 μs – 2500 μs |
| Programmable | Ja |
| Material | |
|---|---|
| Case Material | Aluminium |
| Gear Set Material | Metallgetriebe |
| Holding Torque | |
|---|---|
| Holding Torque @ 4.8V | 13.5 kg·cm |
| Holding Torque @ 6.0V | 16.5 kg·cm |
| Holding Torque @ 7.4V | 20 kg·cm |
| Holding Torque @ 8.4V | 22.5 kg·cm |
| Output Torque | |
|---|---|
| Output Torque @ 4.8V | 9 kg·cm |
| Output Torque @ 6.0V | 11 kg·cm |
| Output Torque @ 7.4V | 13.5 kg·cm |
| Output Torque @ 8.4V | 15 kg·cm |
| No-load Speed | |
|---|---|
| No-load Speed @ 4.8V | 0.090sec/60° |
| No-load Speed @ 6.0V | 0.070sec/60° |
| No-load Speed @ 7.4V | 0.055sec/60° |
| No-load Speed @ 8.4V | 0.050sec/60° |
| max. Current | |
|---|---|
| max. Current @ 6.0V | 4.55 A |
| max. Current @ 7.4V | 5.12 A |
| max. Current @ 8.4V | 6 |
