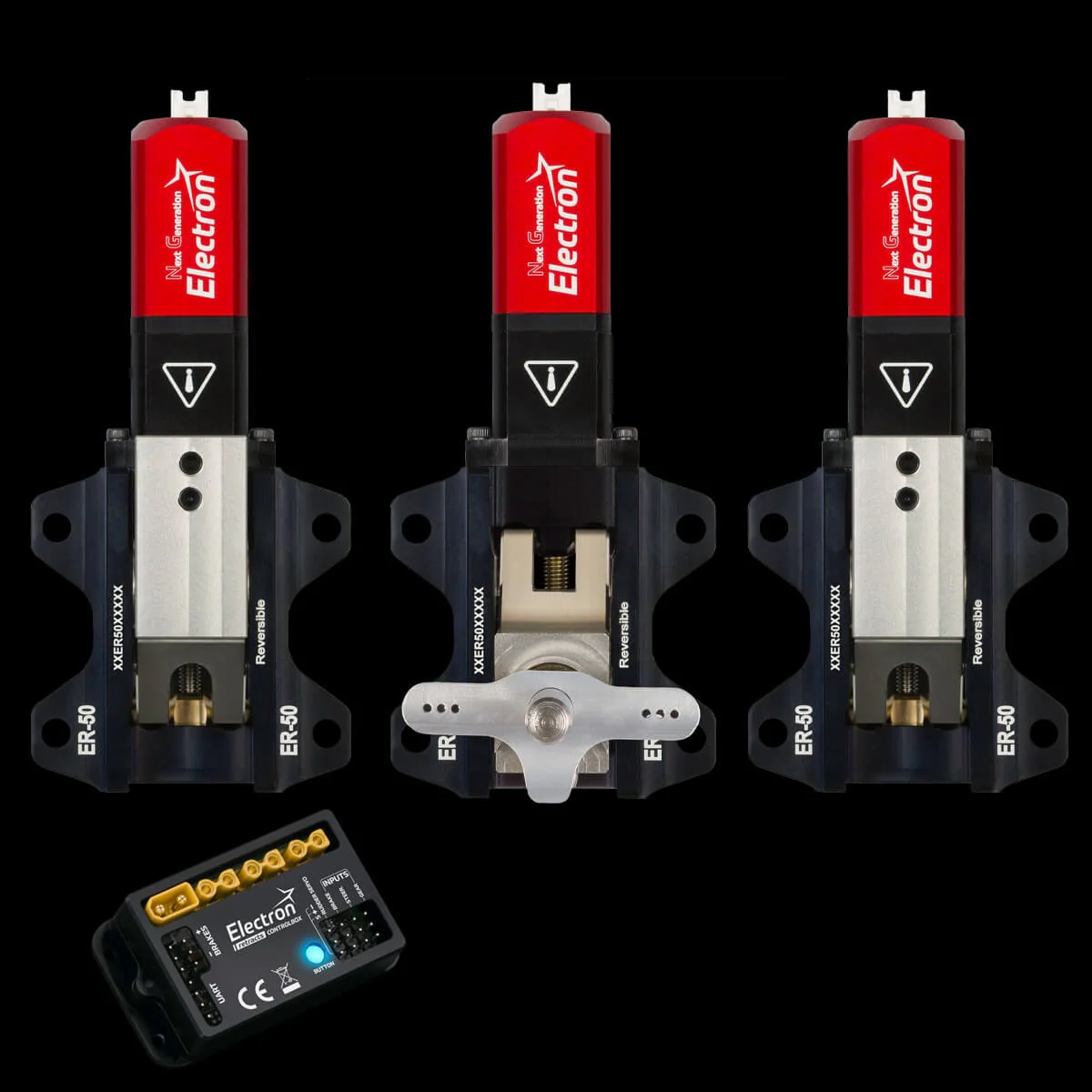

Electron ER-50 NG Set B (Special Order Custom Set)
Increased power and quality
The new ER-50NG builds on the already extremely popular ER50eVo, with further improvements to materials and with a more powerful 12v motor.
Pick up an ER50NG and even before operating it you can tell the power and precision for which it was designed.
With it’s main cage and parts being milled from solid 7075 T6 aviation grade aluminium, it is capable of working day in and day out from any kind of runway with models of up to 30kg.
Improved Spindle
Keeping the same proven square thread design, the ER-50NG’s spindle is now produced from AISI304 Stainless Steel, which together offer incredibly low friction, meaning every last drop of torque is transmitted directly to the retract.
Geared for perfection
Each motor housing incorporates a custom precision milled Electron Retracts carbon steel gearbox that provides a powerful, reliable and compact power output to the retract.
Extreme reliability
Combined with the GS-200PRO which offers an increased load capacity and independent signal and power processors, this takes our already world renowned reliability to the next level.
Currently undergoing certification testing for use in UAV’s, this setup offers a guaranteed 100.000 cycles.
Highly customisable
Like with all Electron Retract’s systems, the ER-50NG is still both reversible and available in array of different trunions providing flexibility for installation in mostly any model.
Choice of steering systems
Choose from between any of the Electron Retract steering systems, such as integrating the steering servo to the leg (upright or inverted), a coupling system which disconnects when retracted or even the traditional pull-pull system.
Specifications
Weight - 290g
Max weight model - 30kg (66lbs)
Cycle time @ 12v - 3.5sec
Voltage allowed - Up to 13v (3S LiPo)
Torque @ 12v - 200kgxcm
Front clamp version - Yes
Includes
2x ER-50NG retract with options selected
1x ER-50NG (steering system) retract with options selected
1x Controller selected
1x Cables and connector Set
Please Note
Delivery of custom sets will normally take up to 3 weeks from time of order but we usually keep some of the more common sets in stock ready for immediate dispatch.
