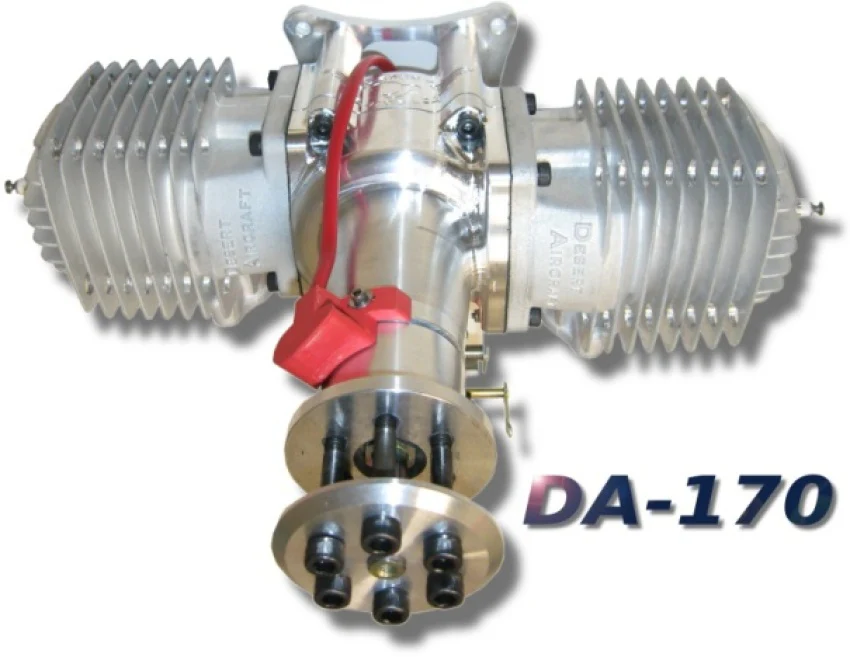

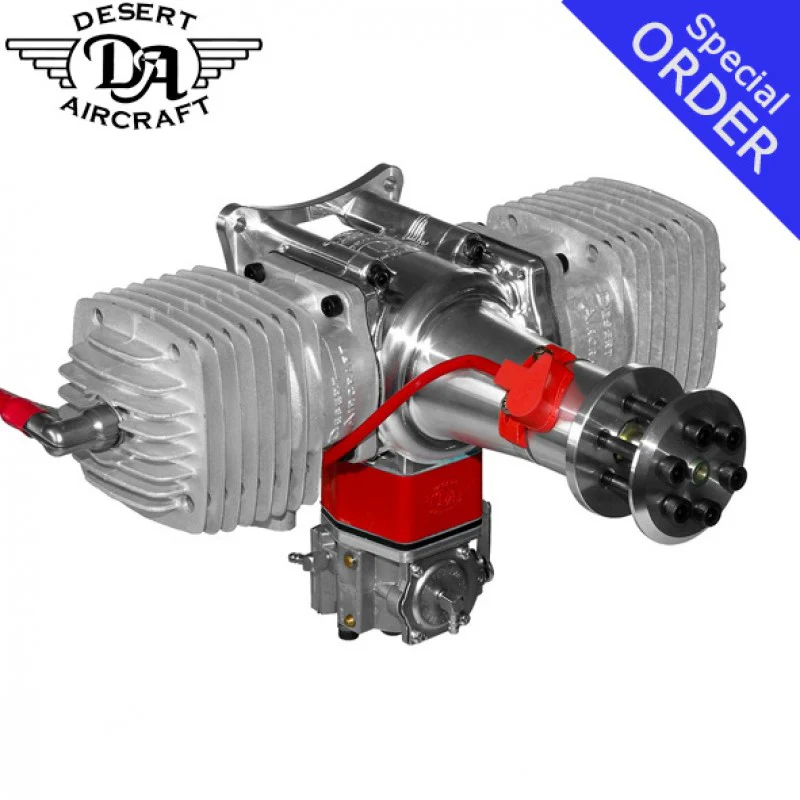

Desert Aircraft DA-170 Petrol Engine

Desert Aircraft DA-170 Petrol Engine

The new benchmark for 40% aerobatic planes!
With the experience of the extremely reliable DA-150 in our mind, we created the all-new DA-170. Even lighter, even stronger and the same reliability as the 150: The new champion for your 40% airplane.

Specifications:
Displacement: 171.8ccm
Bore: 52.0mm
Stroke: 40.5mm
Weight: 3650g
Including Ignition: 3790g
Output: 13.2 kW / 18.0 PS
RPM Range: 1000 - 6500 1/min
RPM Max: 9200 1/min
Fuel Consumption: 7.1 Litres/h @ 6000 1/min

Propellers:
2-Blade: 30x12", 32x10", 32x12"
3-Blade: 29x12", 30x12"

Fuel: 1:50

·         Same length and mounting as the DA-150.
·         Aerobatic power curve.
·         Fast throttle response.
·         Most torque in its class.
·         Low vibration.
·         Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
·         CNC milled, 7075 aluminium alloy crankcase.
·         Three crank bearings, long spacing between front bearings.
·         Long conrod with gudgeon pin located very near to piston crown to reduce side loads.
·         Walbro Carburator
·         Four petal reed valve, bottom induction.
·         Electronic ignition with auto advance and retard.
·         DA engines are designed using the latest tools and techniques, Including 3D CAD and Stereo Lithography.
