Dynamite 120A Brushless Marine ESC 2-6S LiPo DYNM3875

Dynamite 120A Brushless Marine ESC 2-6S LiPo DYNM3875

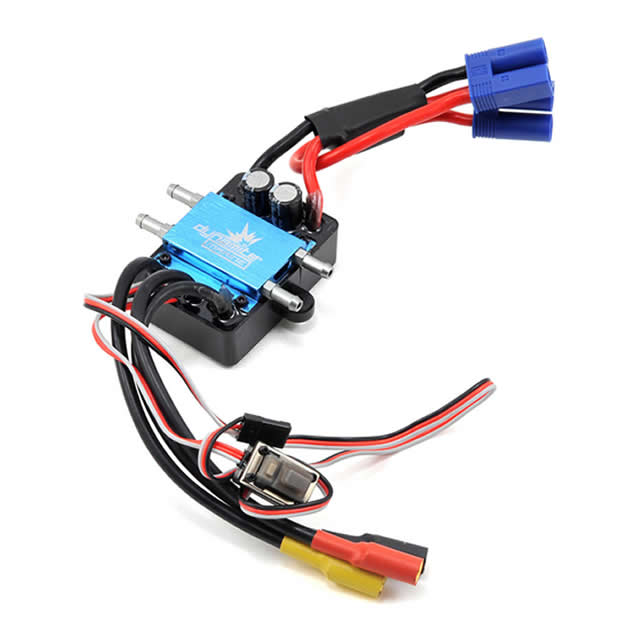

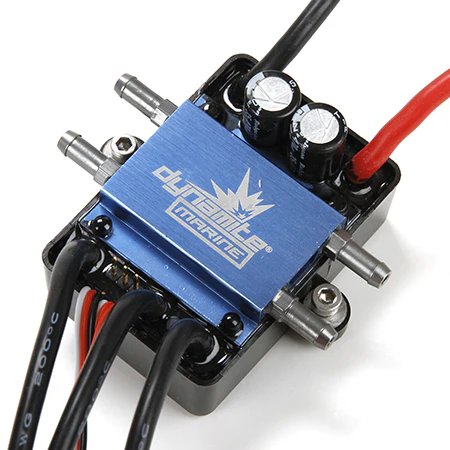

This is a Dynamite 120 Amp, 2-6S, Brushless Marine ESC. This ESC is the stock replacement for the Pro Boat Blackjack 29 V3, but can also be used in any marine application that could benefit from a high current, water-cooled, programmable ESC.

Features:

• 120A Continuous current
• 2-6S LiPo / 6-18 cell NiMH compatible
• Fully Programmable
• Waterproof and water-cooled

Specifications:
Forward - Yes
Reverse - Yes
Brake - Yes
Time Delay Brake - Yes
Continuous Maximum Current - 120A
Input Voltage - 2-6S LiPo, 6-18 Cells NiMh
Input Connector Types - EC5 x2
Output Connector Types - 5.5mm Bullet
Momentary Peak Current - 720A
Length - 2.40 in (61mm)
Width - 2.26 in (57.3mm)
Height - 1.19 in (30.2mm)
Weight - 5.29oz (150g)
BEC Voltage - 6V
PWM Frequency - 8kHz
Overload Protection - Yes
Full On Resistance - .0005 ohms
Auto Cut-off – Yes
