Electron Linear Actuator 20mm Travel Inc Ball Link High Speed 45N @ 6v in 2.5sec

Electron Linear Actuator 20mm Travel Inc Ball Link High Speed 45N @ 6v in 2.5sec

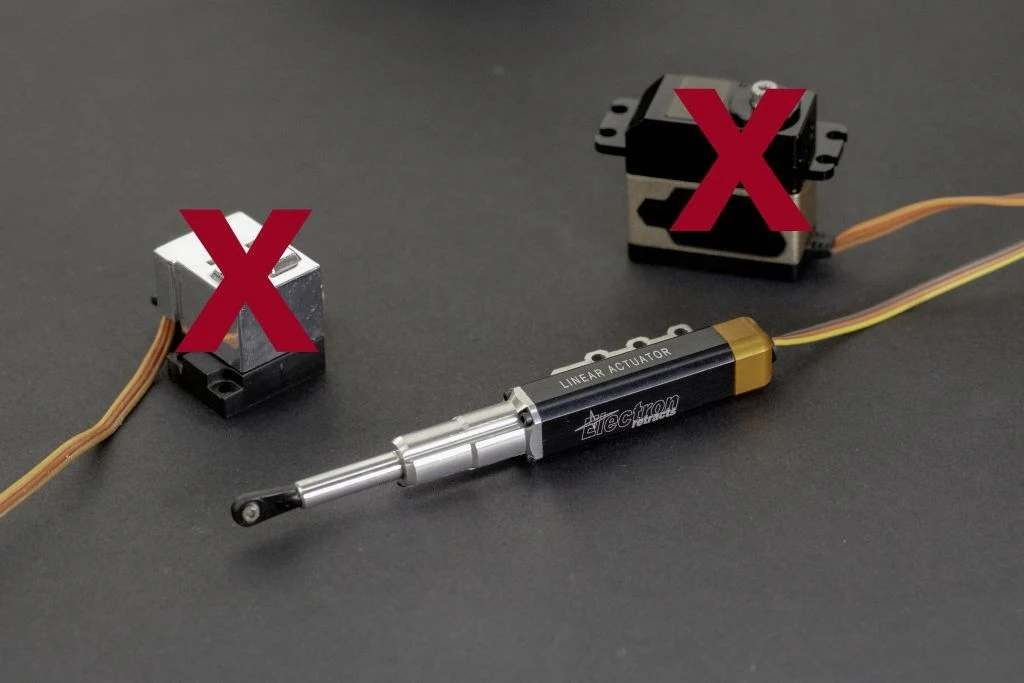

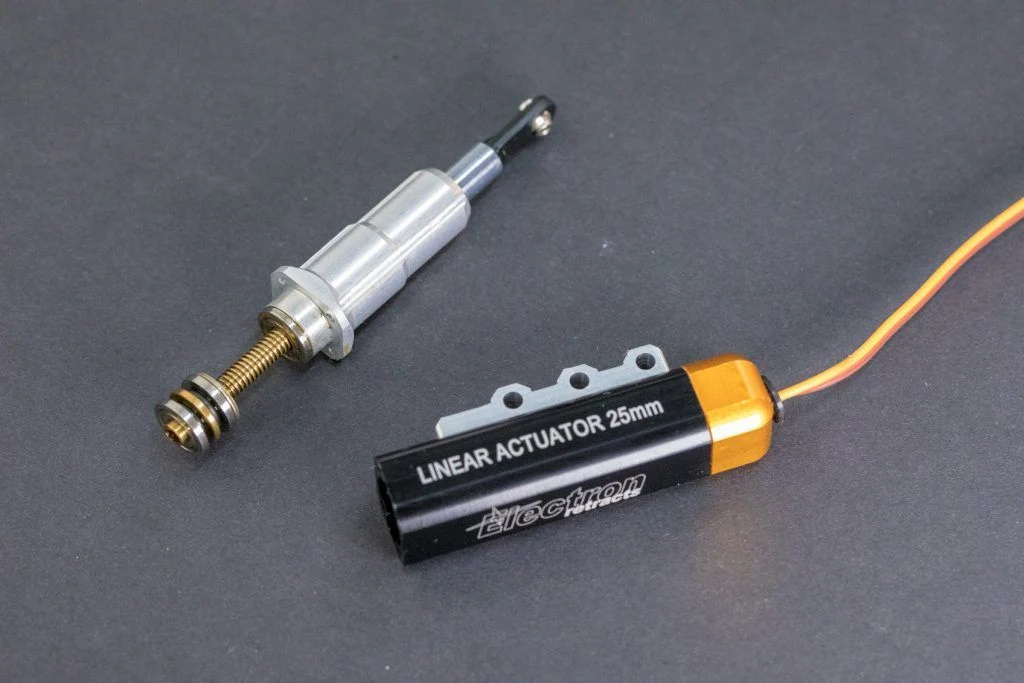

Electron Linear Actuator designed to move the RC planes gear doors. Manufactured in aeronautical aluminium 7075-T6 with CNC machines. All parts are anodized, and manufactured with very small tolerances. The control unit is integrated inside the actuator housing. The result is a very compact and robust system. The innovative installation bracket adjustable in 3 points, and their small size, allow install this in small places.

Specifications:
Weight - 45g (cable and bracket included)
Voltage supply - 4.5-8.4V
Max current - 1.1A Thrust at Max current 8kg
Cycle time - 2.5 sec/ 45N (at 6v) - 3.5 sec 35N (at 4.8v) in function of Voltage, door weight, and position.
Stroke - 20mm no adjustable. Current limitation in case of obstruction.
Operation - Can be controlled direct from a receiver, RS-200 or GS-200
Included - Adjustable bracket, Ball link installed.
