Emcotec ECM MPX 6 pins without connector PCB Solder Wire Connector 5 pieces A86008
No longer available

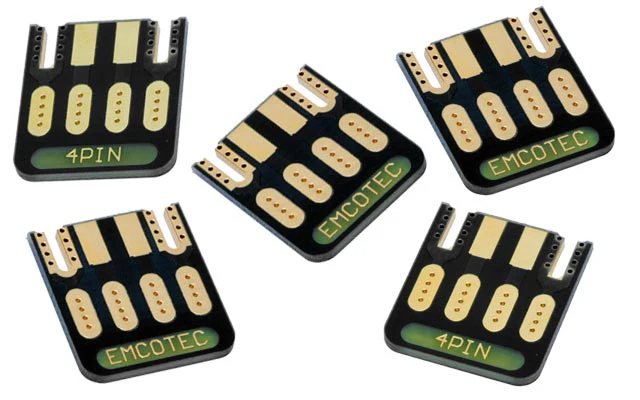

Adapter PCB, which allows for directly soldering of EMC connectors. (MPX compatible with double contacts). Cables (e. g. servo cables) can be soldered simply onto large soldering pads.

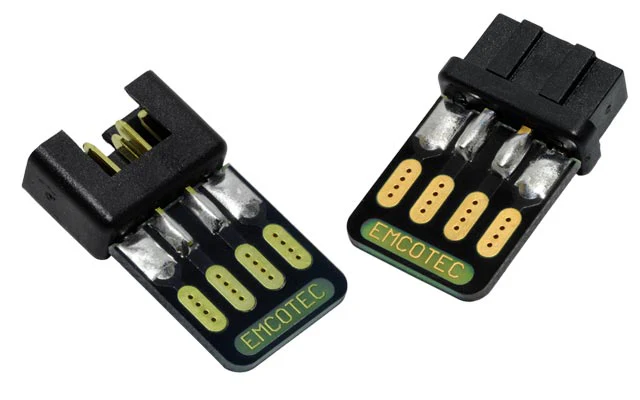

For isolation use suitable heat shrinkable tube (Item no. A84025). Especially suitable for supplying servos at wing connections. In conjunction with the EMC housings contained in the EMC connector set (Item no. A85022 or A85023), no gluing is necessary, because the PCB fixes the EMC connector through soldering.
The 6 pin variant are not merged, here in total 6 electric separated contacts lead to 8 soldering pads. Perfect for wing connectors.

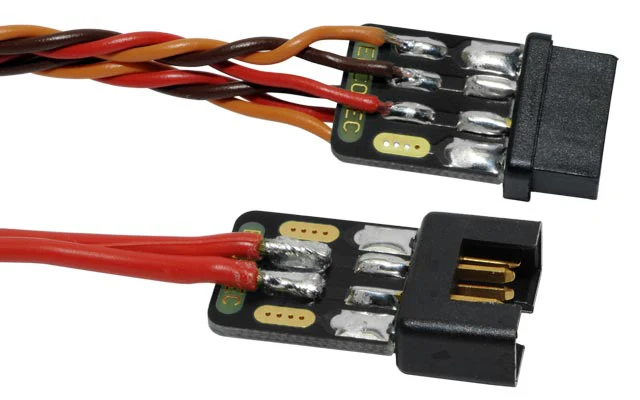

So soldering of servo cables to the top side and the bottom side of the PCB is possible. Suitable for the EMC connector the PCB has thickness of 1.2mm (0.05in) (also suitable for original MPX).
Please note: MPX connectors not included
Please Note: The 6 pin version is supplied in this pack
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Emcotec ECM MPX 6 pins without connector PCB Solder Wire Connector 5 pieces A86008
No longer available
Adapter PCB, which allows for directly soldering of EMC connectors. (MPX compatible with double contacts). Cables (e. g. servo cables) can be soldered simply onto large soldering pads.
For isolation use suitable heat shrinkable tube (Item no. A84025). Especially suitable for supplying servos at wing connections. In conjunction with the EMC housings contained in the EMC connector set (Item no. A85022 or A85023), no gluing is necessary, because the PCB fixes the EMC connector through soldering.
The 6 pin variant are not merged, here in total 6 electric separated contacts lead to 8 soldering pads. Perfect for wing connectors.
So soldering of servo cables to the top side and the bottom side of the PCB is possible. Suitable for the EMC connector the PCB has thickness of 1.2mm (0.05in) (also suitable for original MPX).
Please note: MPX connectors not included
Please Note: The 6 pin version is supplied in this pack
