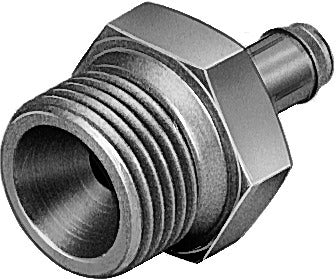

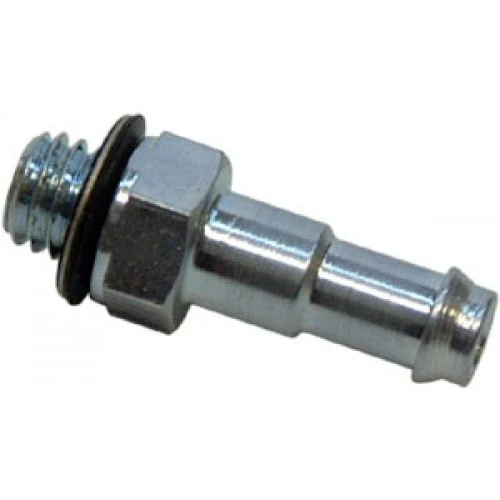

FESTO M5 to 4mm Barbed Fittings od Tube for Intairco Mega & HP Filters plus Mini Trap CN-M5
Straight with thread M5 and hexagon.
Sold individually.
Pneumatic connection, port 1
Male thread M5
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Nominal size
2.5 mm
Ambient temperature
0 °C - 60 °C
Technical Data:
- Nominal size: 2.5 mm
- Type of seal on screwed plug: Sealing ring
- Operating pressure complete temperature range: -0.95 bar ... 10 bar
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC: 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Ambient temperature: 0 °C ... 60 °C
- Pneumatic connection, port 1: Male thread M5
- Pneumatic connection, port 2: For tubing outside diameter of 4 mm
- Note on materials: RoHS-compliant
- Material housing: Steel
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
FESTO M5 to 4mm Barbed Fittings od Tube for Intairco Mega & HP Filters plus Mini Trap CN-M5
Straight with thread M5 and hexagon.
Sold individually.
Pneumatic connection, port 1
Male thread M5
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Nominal size
2.5 mm
Ambient temperature
0 °C - 60 °C
Technical Data:
- Nominal size: 2.5 mm
- Type of seal on screwed plug: Sealing ring
- Operating pressure complete temperature range: -0.95 bar ... 10 bar
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC: 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Ambient temperature: 0 °C ... 60 °C
- Pneumatic connection, port 1: Male thread M5
- Pneumatic connection, port 2: For tubing outside diameter of 4 mm
- Note on materials: RoHS-compliant
- Material housing: Steel
