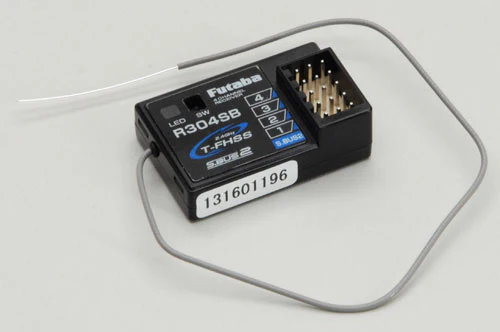

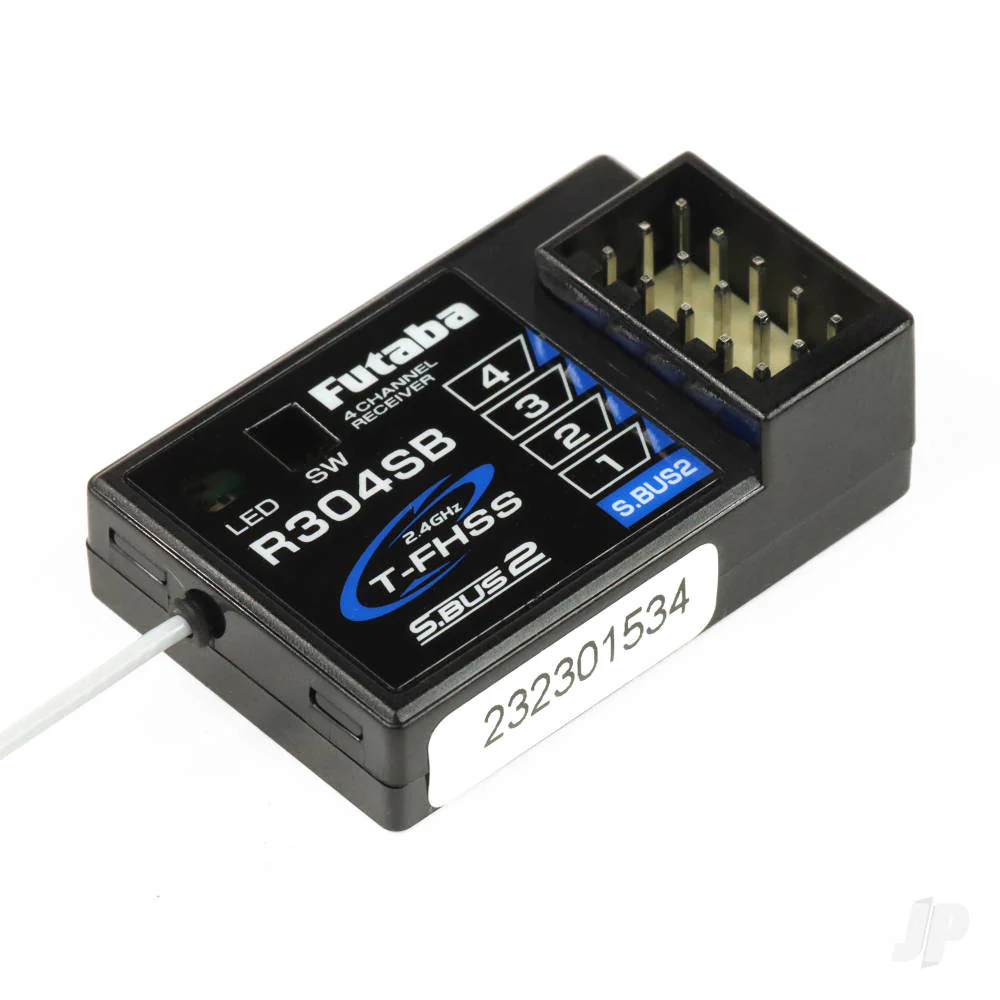

Futaba R304SB 4ch Rx With Telemetry FHSS (S-Bus) (HV) 2.4GHz FUT05102588-3
4-channel PWM, S.BUS2 T-FHSS receiver, with telemetry, up to 7.4V.
The R304SB is a compact little 4 channel receiver using T-FHSS telemetry. Suitable for HV applications the R304SB has an operating voltage range of 3.6 up to 8.4v.
T-FHSS is a variation of Futaba's FHSS technology with the added bonus of telemetry. As standard the receiver will monitor its own voltage and transmit that back to your T-FHSS transmitter. There is also a S.Bus2 port included allowing you to plug in additional futaba telemetry sensors.
Features:
- Compact size
- T-FHSS telemetry
- Operating voltage of 3.6 - 8.4v
- Input Voltage: 4.8-7.4 V
- High Voltage
- Weighs only 6.7g
Specifications:
Modulation - T-FHSS
Weight - 6.7g
Voltage - 3.6 - 8.4v
Channels - 4
Dimensions - 35 x 33 x 12 mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Futaba R304SB 4ch Rx With Telemetry FHSS (S-Bus) (HV) 2.4GHz FUT05102588-3
4-channel PWM, S.BUS2 T-FHSS receiver, with telemetry, up to 7.4V.
The R304SB is a compact little 4 channel receiver using T-FHSS telemetry. Suitable for HV applications the R304SB has an operating voltage range of 3.6 up to 8.4v.
T-FHSS is a variation of Futaba's FHSS technology with the added bonus of telemetry. As standard the receiver will monitor its own voltage and transmit that back to your T-FHSS transmitter. There is also a S.Bus2 port included allowing you to plug in additional futaba telemetry sensors.
Features:
- Compact size
- T-FHSS telemetry
- Operating voltage of 3.6 - 8.4v
- Input Voltage: 4.8-7.4 V
- High Voltage
- Weighs only 6.7g
Specifications:
Modulation - T-FHSS
Weight - 6.7g
Voltage - 3.6 - 8.4v
Channels - 4
Dimensions - 35 x 33 x 12 mm
