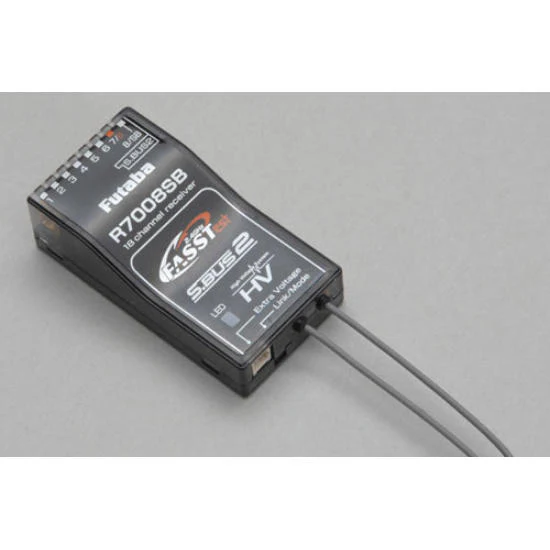

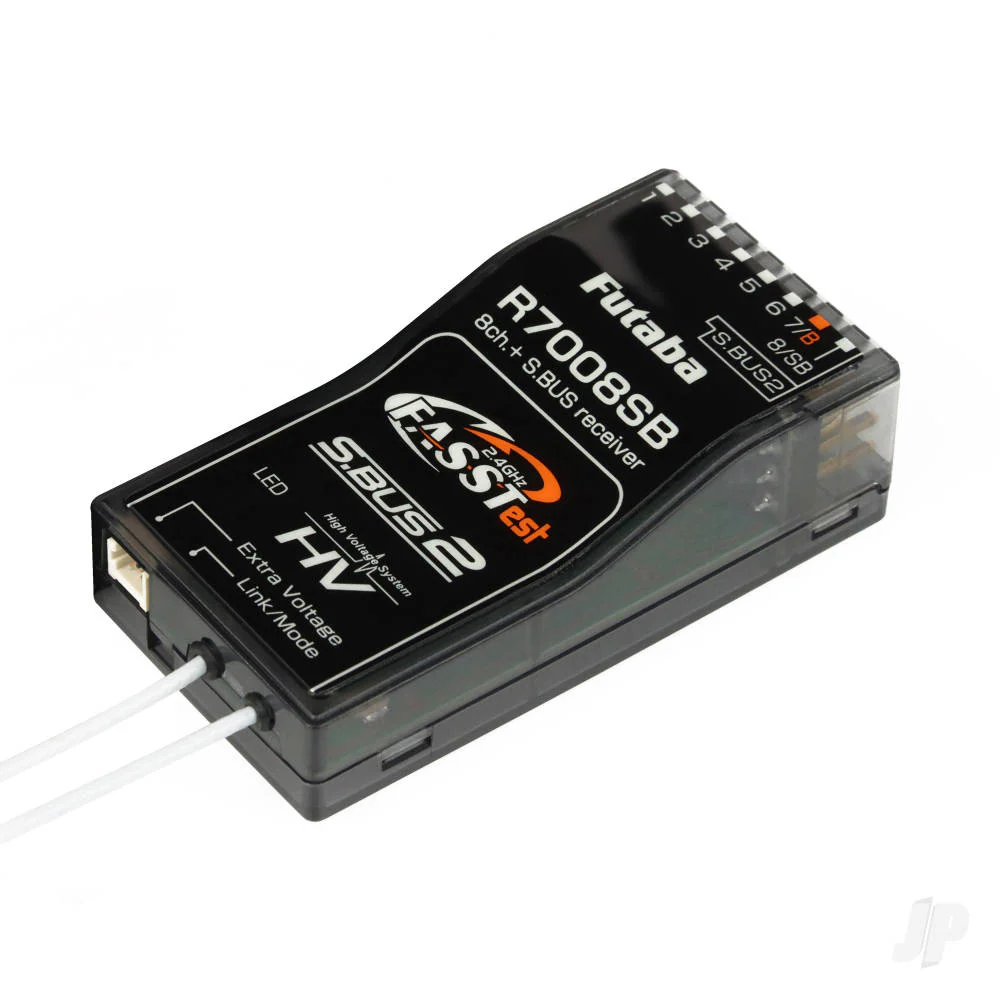

Futaba R7008SB Receiver (S-Bus) (HV) 2.4GHz No Box Offer

Futaba R7008SB Receiver (S-Bus) (HV) 2.4GHz No Box Offer

Please Note: This R7008SB is new from the supplier but has no box or instructions.

The Futaba R7000SB is a FASSTest telemetry enabled receiver, a high-voltage design that operates up to 8 channels using the 8 standard PWM outputs or up to 18 channels (16 proportional + 2 digital) using the S-Bus port.

That means a simpler setup and full support for S-Bus and S-Bus2 servos. As supplied the R7008SB receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further separate sensors available separately.

Although originally developed for use in helicopters it is equally suitable for fixed wing models especially those fitted with a Powerbox due to its S-bus output.

Specification:
Modulation: FASSTest
Channels: 8 PWM / 18 S-BUS
Weight: 10.9g
Dimensions: 24.9 x 47.3 x 14.3mm
Input Voltage: 3.7-7.4 V
Dual Antenna

Warning:
Analog servos cannot be used with the R7008SB in the FASSTest 12CH mode.

The R7008SB receiver can only be used with FASSTest capable transmitters

Don't connect to Extra Voltage before turning on a receiver.
