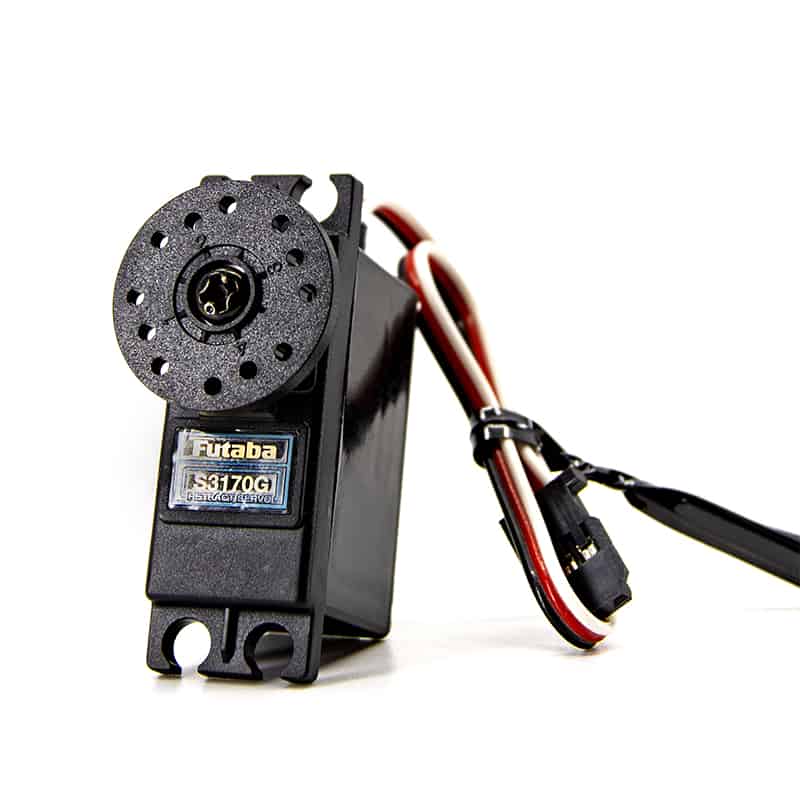

Futaba S3170G Mini Digital Retract Servo MG 8.5kg/0.47s 4.8V - 6V

Futaba S3170G Mini Digital Retract Servo MG 8.5kg/0.47s 4.8V - 6V FUT05102422-1

The S3170G Mini Digital Retract Servo with metal gears provides 8.5kgf·cm torque and 0.47s/60° speed at 6.0V. It measures 34.5×16.0×25.8mm, weighs 26g, and operates between 4.8V and 6.0V.

The Mini servo S3170G is a small and extremely powerful 16mm servo with proportional displacement of 180°. Ideal as a retractable landing gear servo or servo for special applications. The small, only 16 mm thickness S S3170G servo has a momentum of force of up to 85 Ncm. Ideally suited for small and medium-sized retractable airplane models. Double ball-bearing gear.

High return accuracy
Low wear potentiometer
Waterproof
Supported by ball bearings
80° adjustment path (runs to the end position in each case)
Suitable for retractable landing gears and special functions
Robust plastic housing
High resolution
25 Tooth Spline
