Hacker Damped Brackets For Electric Drives And Combustion Engines 10108410

Hacker Damped Brackets For Electric Drives And Combustion Engines 10108410



Brackets with rubber damping for installing an electric motors or combustion engines into the R/C model. The motor mount can be screwed onto the four rubber dampers on the head frame.

The bracket consists of turned cover and foot plates, which form a unit when plugged together with a spacer sleeve. The motor mount sits in the rubber dampers between the two plates.







Advantages of the bracket

- Damping vibration peaks

- Noise reduction

Designed and made in Germany.







Required accessories

Depending on the thickness and material of the motor frame, M5 or M6 screws or corresponding threaded rods with a length of approx. 50 to 60 millimeters (1.97 to 2.36 inches) are required for fastening. These are not included in delivery.







Suitable motors and engines

Electric motors from approx. 2.0 to 9.5kW, combustion engines from approx. 30 to 180ccm.

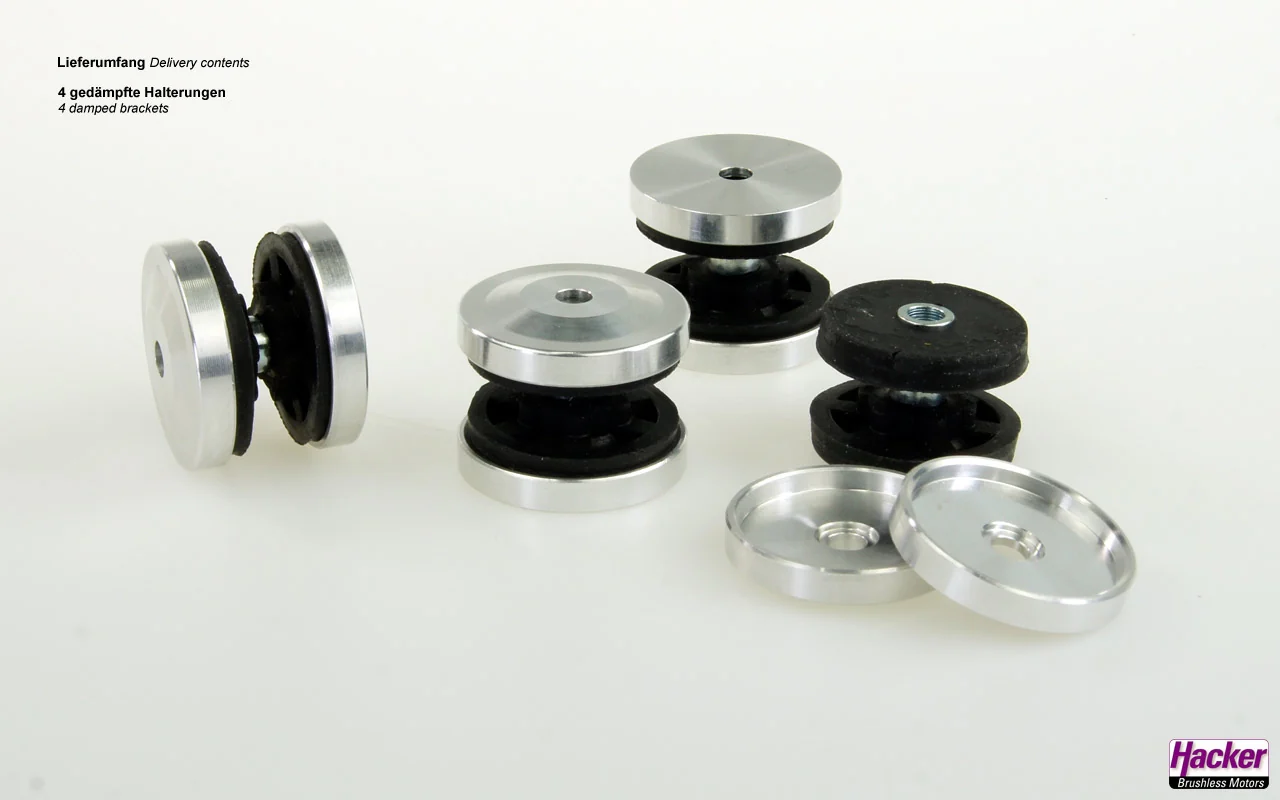

Delivery contents

Damped brackets for electric drives and combustion engines consisting of 4 cover plates, 4 foot plates, 4 spacer sleeves and 4 rubber dumpings.
