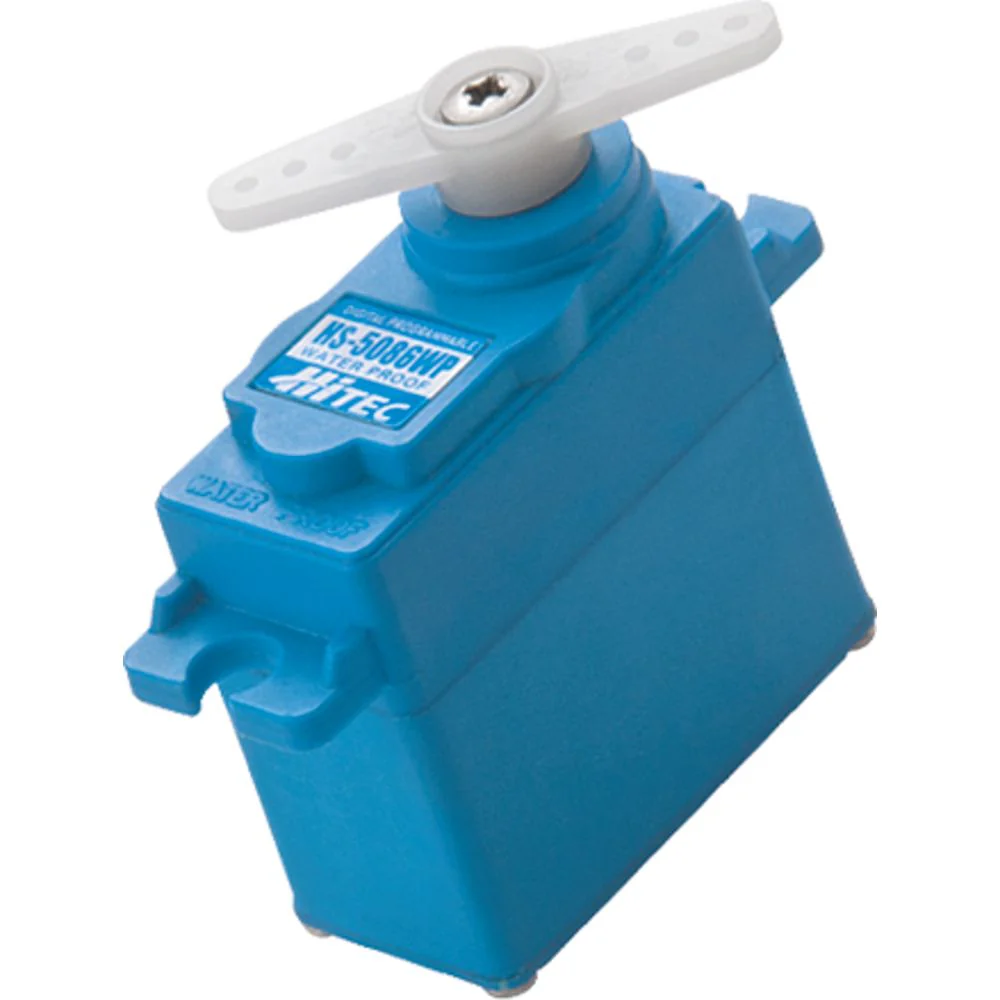

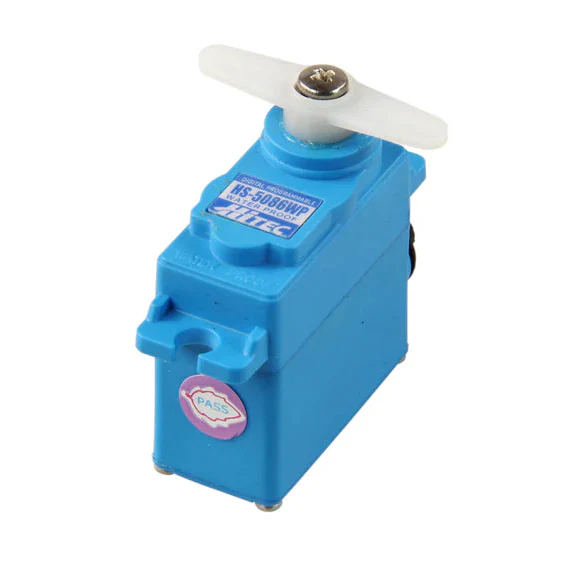

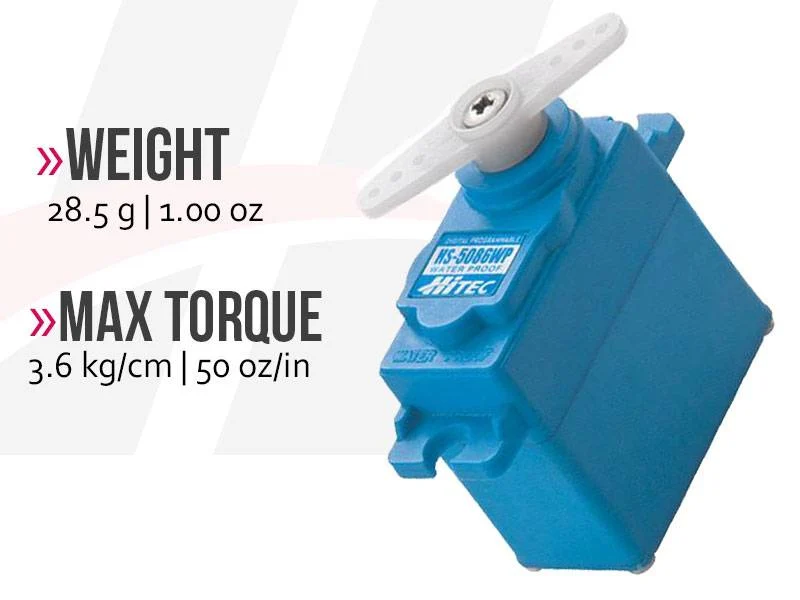

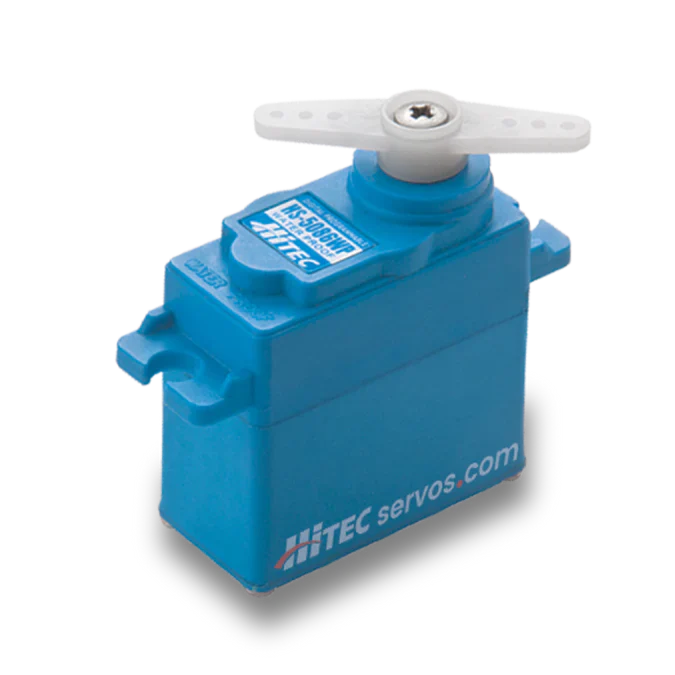

INDUSTRY FIRST! HS-5086WP DIGITAL MICRO WATER PROOF 4.8v to 6.0v

The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings. Expect More. Expect Hitec!

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset
• 24 Tooth Spline

Advanced Specifications:

Control System:	Programmable Digital
Operating Voltage Range:
Idle Current @ 6.0v:	3 mA
No Load Running Current @ 6.0v:	280 mA
Stall Current @ 6.0v:	1800 mA
Dead Band Width:	2
Potentiometer Type:	2 Slider 500K Cycle Rated
Connector Wire Length:	9.8 in / 250 mm
Connector Wire Type:	Flat
Connector Wire Strand Count / Gauge:	40 Strand / 25 ga.
