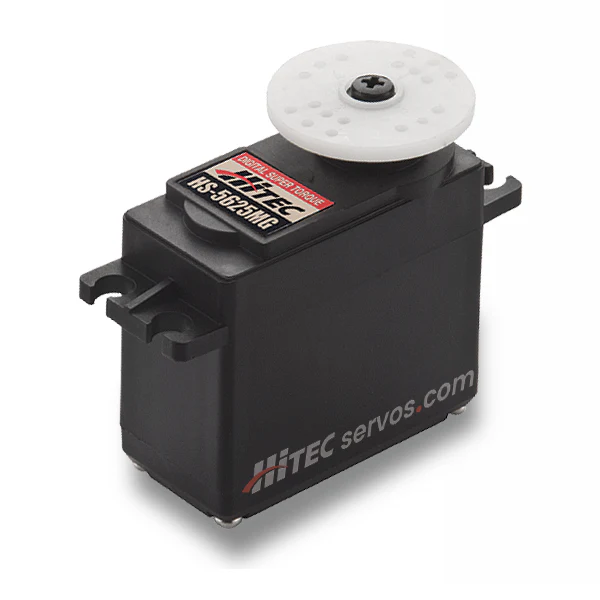

Hitec HS5625MG Standard Digital Cored Servo 60g 9.4kg/0.14s 4.8V - 6.0V 2217610

Hitec HS-5625MG Standard Digital Cored Servo 60g 9.4kg/0.14s 4.8V - 6.0V 2217610

For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique M/P and metal gear train technology, the HS-5645MG will deliver powerful high speed results!

Note: Metal Horn (R-ML) Included

Features:

• Most Popular High Speed Standard Digital Servo
• Strong Three-Pole Ferrite Motor
• Metal Gear Train with MP Gear Technology
• Dual Ball Bearing-Supported Output Shaft
• Standard Programmable Digital Circuit Provides Fine Resolution and Centring
• Spline: Standard 24 Tooth

Programming Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.17 ~ 0.14
Maximum Torque Range oz. / in.	110 ~ 131
Maximum Torque Range kg. / cm.	7.9 ~ 9.4
Current Draw at Idle	3 mA
No Load Operating Current Draw	500 mA
Stall Current Draw	2,400 mA
Dead Band Width	4 µs

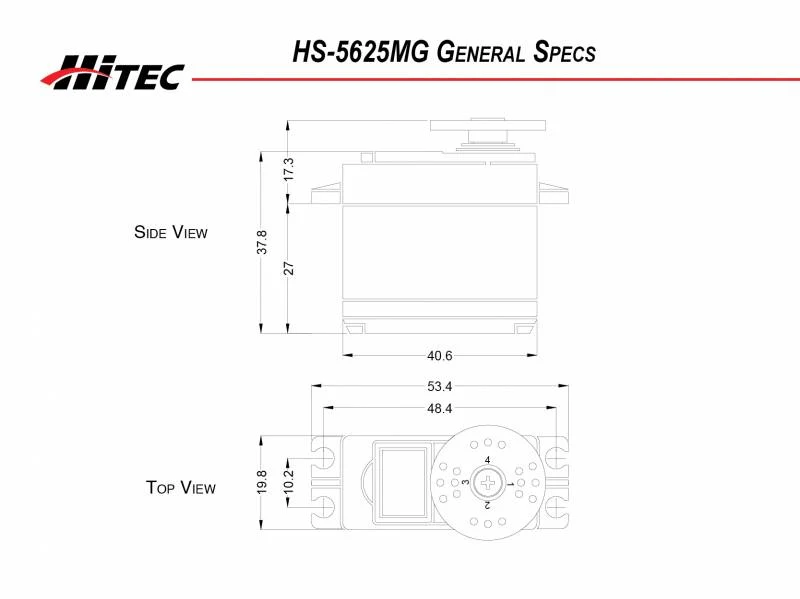

Physical Specifications
Dimensions (Inches)	1.59 x 0.77 x 1.48
Dimensions (Metric)	40.6 x 19.8 x 37.8
Weight (Ounces)	2.11
Weight (Gram)	60.0
Circuit Type	G1 Programable Digital
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	22 / 60
