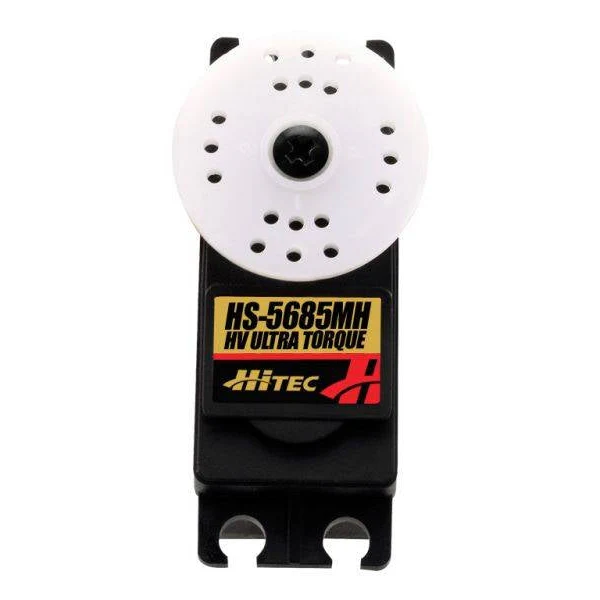

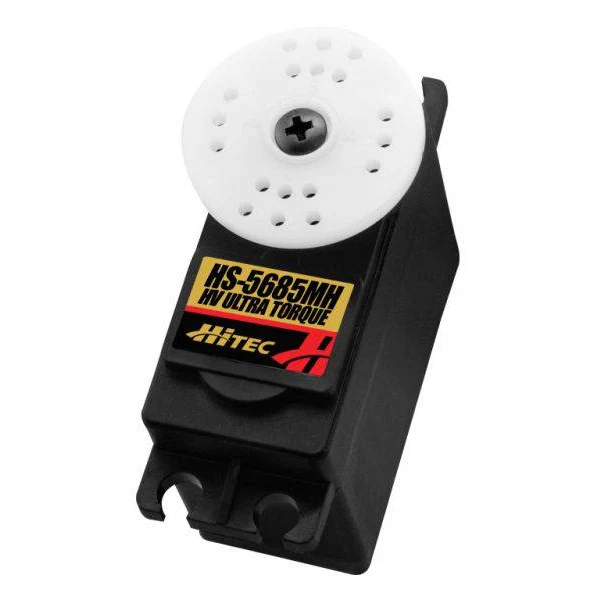

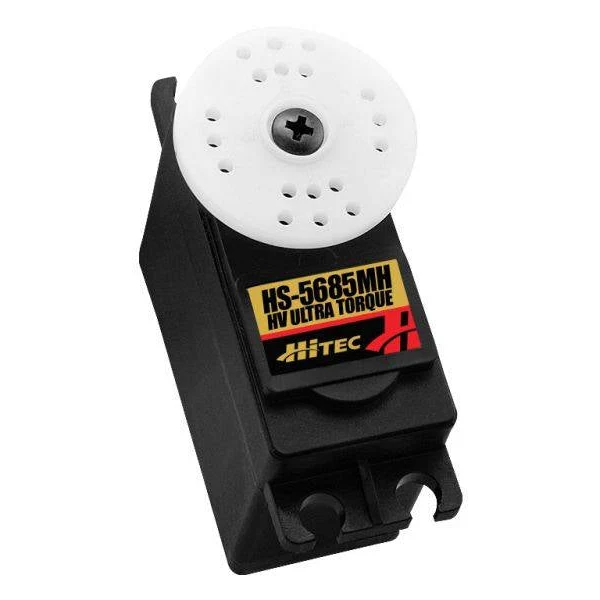

Hitec HS5685MH Standard Digital Cored Servo 57g 12.9kg/0.17s 6.0V - 7.4V 2217640

Hitec HS-5685MH Standard Digital Cored Servo 57g 12.9kg/0.17s 6.0V - 7.4V 2217640

An affordable yet powerful programmable digital sport servo

The HS-5685MH High Torque HV Metal Gear servo was designed to run on a 2-cell 7.4V LiPo battery to give you extra torque and speed. Featuring a heavy-duty metal gear train and our exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications.

Our affordable digital sport servos are the perfect companion for 1/10th to 1/8th scale on- and off-road vehicles, as well as larger sport helicopters and large scale aerobatic aircraft up to 25-percent.

The upgraded version of this servo is now available : D645MW

Features:

• Alloy servo arm included.
• Programmable digital circuit heavy-duty metal gear train (MK first gear).
• Dual ball bearing supported output shaft.
• Programmable features include: dead band width, direction of rotation, speed of rotation (slower), end points, neutral points, fail-safe on / off, fail-safe point.
• Spline: 24 Tooth

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Specifications:

Performance Specifications
Operating Voltage Range (Volts DC)	6.0V ~ 7.4V
Speed (Second @ 60°)	0.20 ~ 0.17
Maximum Torque Range oz. / in.	157 ~ 179
Maximum Torque Range kg. / cm.	11.3 ~ 12.9
Current Draw at Idle	7 mA
No Load Operating Current Draw	350 mA
Stall Current Draw	2,600 mA
Dead Band Width	4 µs



Physical Specifications

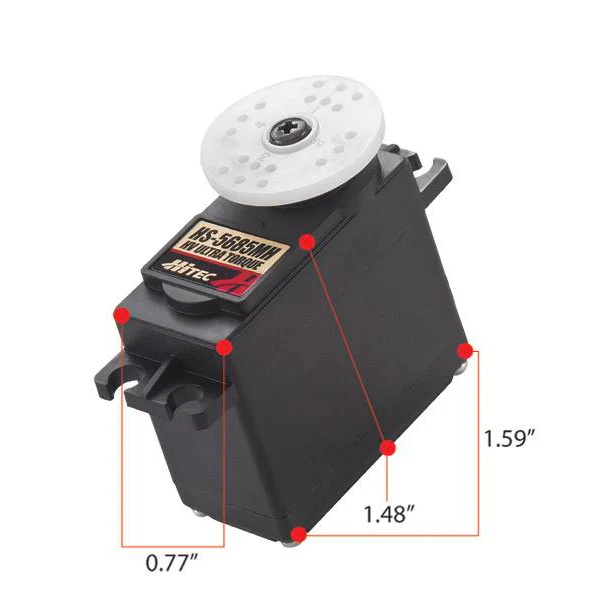

Dimensions (Inches)	1.59 x 0.77 x 1.48
Dimensions (Metric)	40.6 x 19.8 x 37.8
Weight (Ounces)	2.01
Weight (Gram)	57.0
Circuit Type	G1 Programable Digital
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	22 / 60
