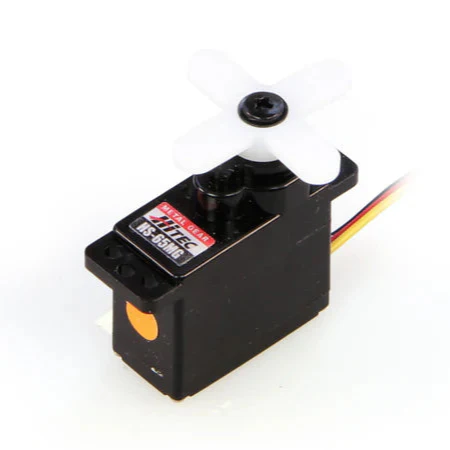

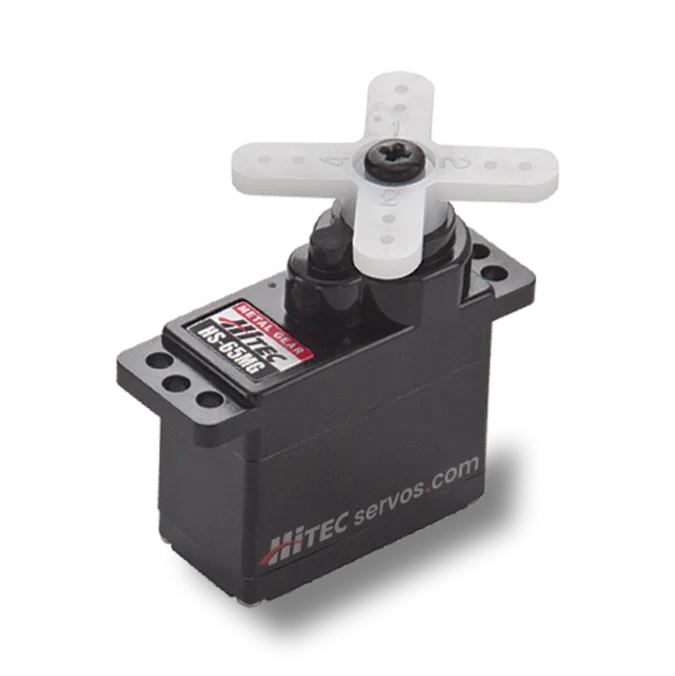

Hitec HS-65MG Ultra Micro Analogue Cored Servo 11.9g 2.2kg/0.11s 4.8V - 6.0V 2212110
Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centring, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Features:
- Top Selling Metal Gear Feather Servo
- High Performance Three-Pole Motor
- Rugged Metal Gear for Added Durability
- Ball Bearing-Supported Output Shaft
- Four metal gears with one ball bearing
- High efficiency Nd magnet motor
- Spline: 25 Tooth
Specifications:
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.14 ~ 0.11 |
| Maximum Torque Range oz. / in. | 25 ~ 31 |
| Maximum Torque Range kg. / cm. | 1.8 ~ 2.2 |
| Current Draw at Idle | 8 mAh |
| No Load Operating Current Draw | 220 mAh |
| Stall Current Draw | 1200 mAh |
| Dead Band Width | 5 µs |
| Physical Specifications | |

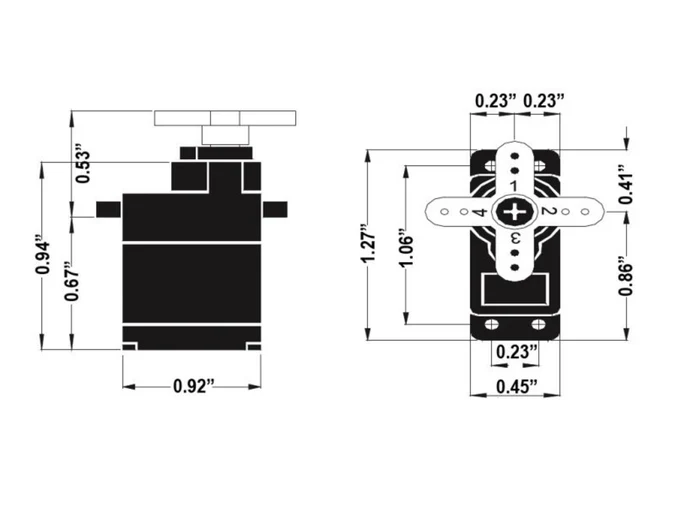

| Dimensions (Inches) | 0.92 x 0.45 x 0.94 |

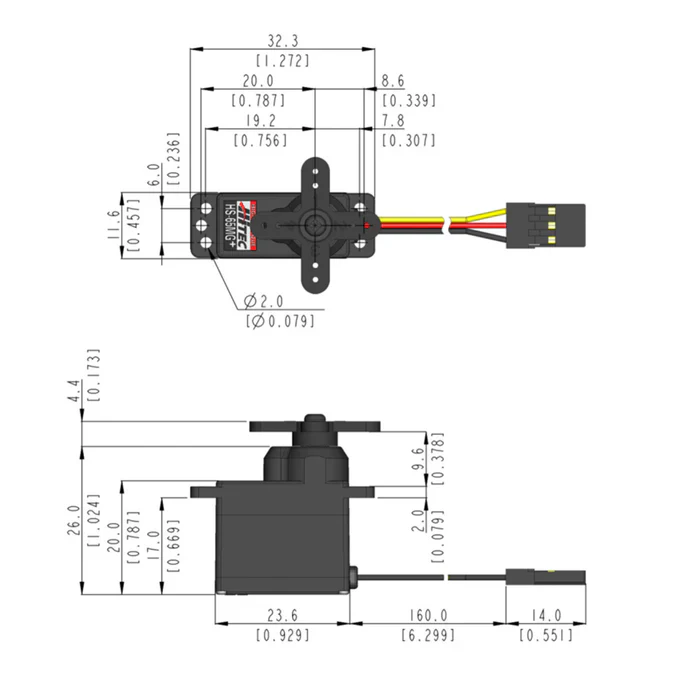

| Dimensions (Metric) | 23.6 x 11.6 x 24.0 |
| Weight (Ounces) | 0.42 |
| Weight (Gram) | 11.9 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Neodymium |
| Gear Material | Metal |
| Bearing Type | Top Ball Bearing |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
