Hitec HS7115TH Slim Wing Digital Cored Servo 20g 3.60kg/0.10s 6.0V - 7.4V 2216564

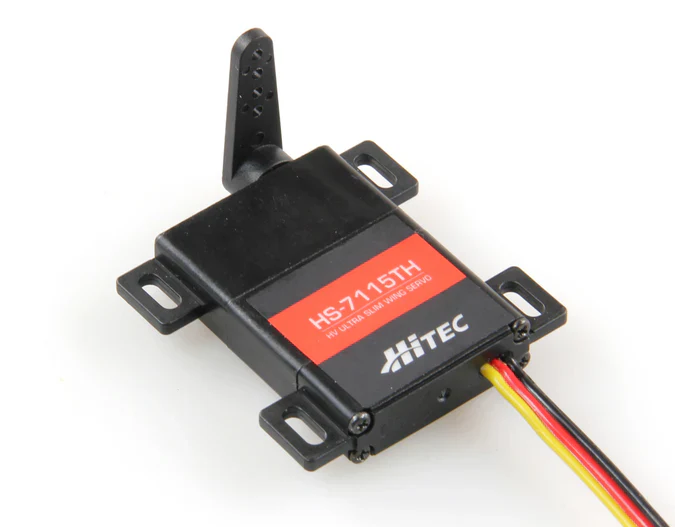

Hitec HS-7115TH Slim Wing Digital Cored Servo 20g 3.60kg/0.10s 6.0V - 7.4V 2216564

A high voltage, titanium gear, ultra slim, premium wing servo

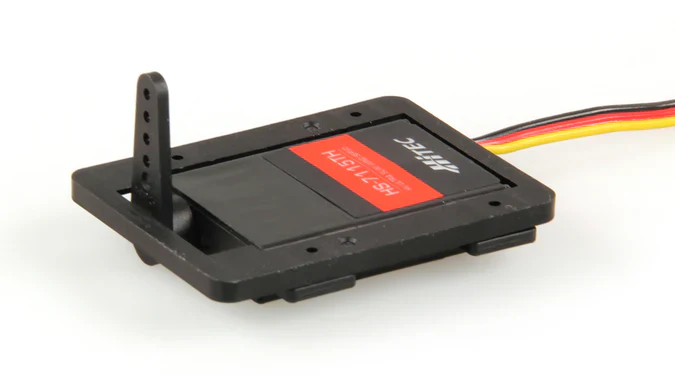

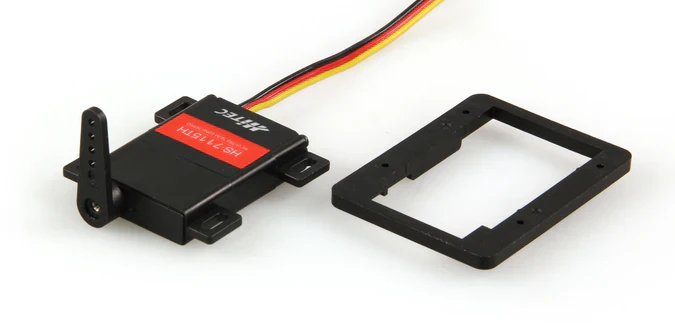

You can never be too rich or too thin! That's our philosophy with our new HS-7115TH Slim Wing servo: rich engineering in a thin design! The HS-7115TH will fulfil every pilot's dream when it comes to flying slim-wing aircraft. With its efficient, powerful three pole, metal-brushed motor and mighty titanium gear train, this servo brings the ultimate in high performance to your sailplanes, pylon racers and smaller scale models. The extremely thin, 8mm case with included mounting bracket allows it to fit into the tightest wings and most compact spaces. Constructed with dual ball bearings, the high voltage HS-7115TH provides an impressive 50 oz-in of torque at 7.4 volts.

Features:

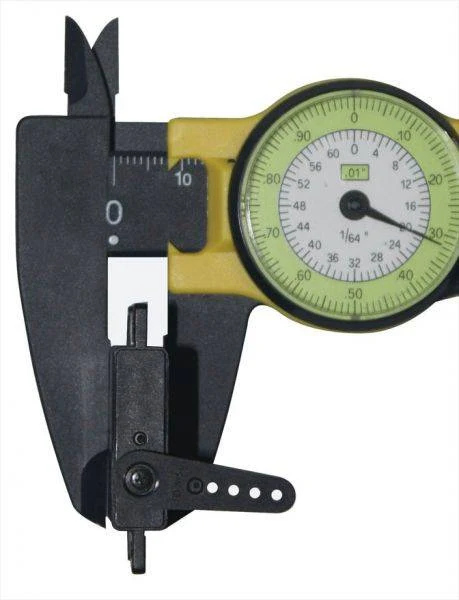

• Slim 8mm thickness fits the thinnest of wings
• Durable titanium alloy metal gears
• Dual ball bearings
• Strong three pole ferrite motor
• 7.4V 2-cell LiPo capability
• End Point programming
• Direction programming
• Fail-safe programming
• Dead band programming
• Speed reduction programming
• Overload protection programming


Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Overload Protection
• Data Save / Load
• Program Reset

Specifications:

Performance Specifications
Operating Voltage Range (Volts DC)	6.0V ~ 7.4V
Speed (Second @ 60°)	0.12 ~ 0.10
Maximum Torque Range oz. / in.	44 ~ 54
Maximum Torque Range kg. / cm.	3.2 ~ 3.9
Current Draw at Idle	10 mA
No Load Operating Current Draw	130 mA
Stall Current Draw	1,500 mA
Dead Band Width	1 µs



Physical Specifications

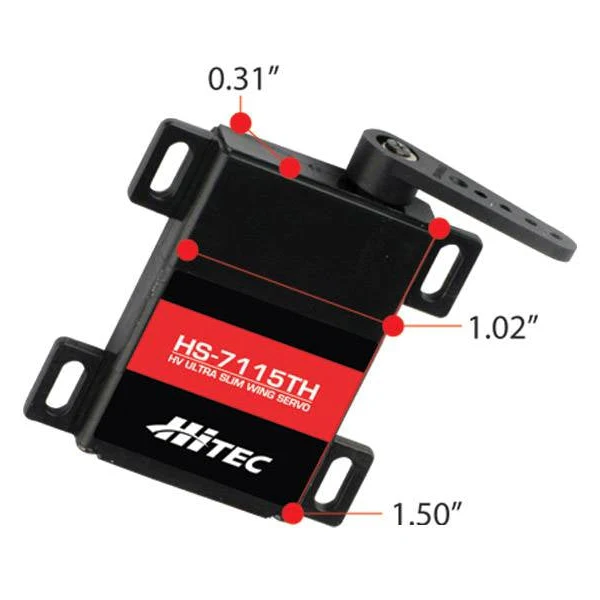

Dimensions (Inches)	1.02 x 0.31 x 1.50

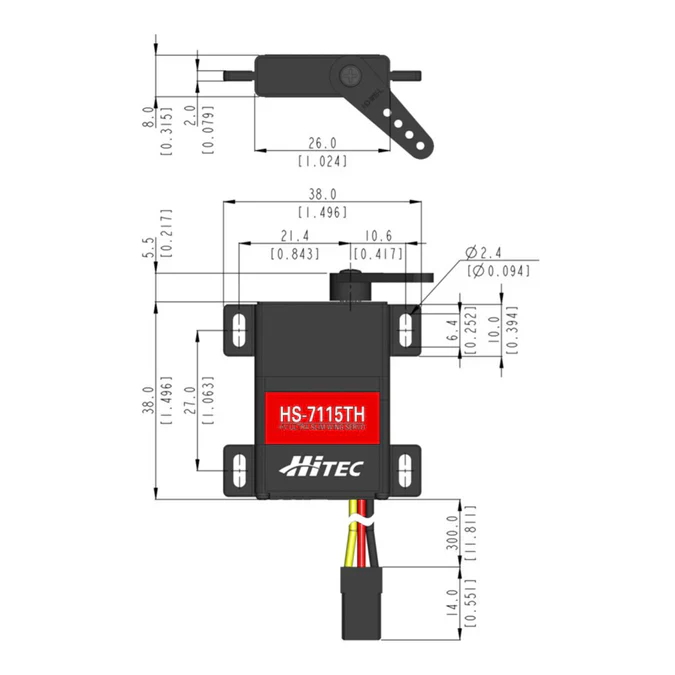

Dimensions (Metric)	26.0 x 8.0 x 38.0
Weight (Ounces)	0.71
Weight (Gram)	20.0
Circuit Type	G2 Programable Digital
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Titanium
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	Feather 15
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	22 / 40
