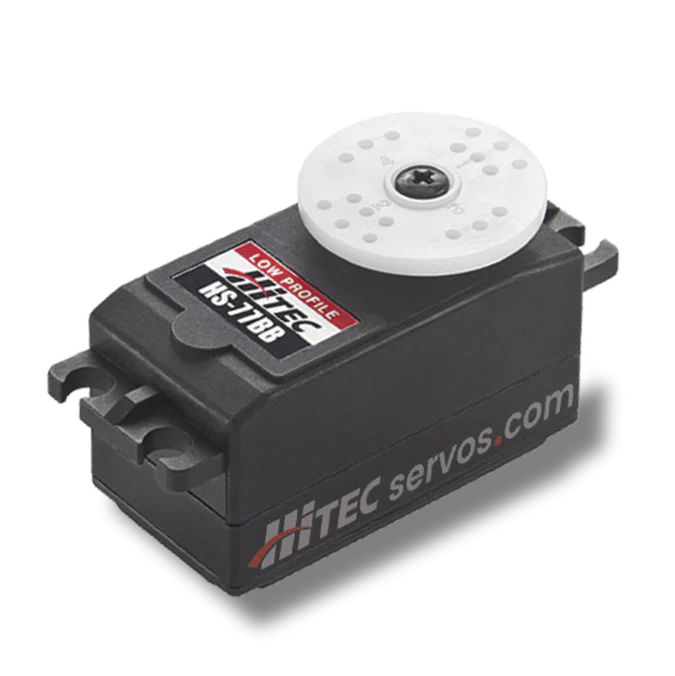

Hitec HS77BB Low Profile Analogue Cored Servo 35g 5.5kg/0.14s 4.8V - 6.0V 2212127

Hitec HS-77BB Low Profile Analogue Cored Servo 35g 5.5kg/0.14s 4.8V - 6.0V 2212127

With its low profile design and strong standing torque, the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servos strength and compact size.

Features:

• Low profile compact design
• High torque three-pole ferrite motor
• Durable nylon gears
• Top ball bearings

Specifications:

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.18 ~ 0.14
Maximum Torque Range oz. / in.	61 ~ 76
Maximum Torque Range kg. / cm.	4.4 ~ 5.5
Current Draw at Idle	8 mA
No Load Operating Current Draw	250 mA
Stall Current Draw	800 mA
Dead Band Width	8 µs
Physical Specifications
Dimensions (Inches)	1.73 x 0.90 x 0.98
Dimensions (Metric)	44.0 x 23.0 x 25.0
Weight (Ounces)	1.23
Weight (Gram)	35.0
Circuit Type	HT7003 Analog SMT
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Nylon
Bearing Type	Top Ball Bearing
Output Shaft (type / Ømm)	Standard 24
Case Material	Plastic
Dust / Water Resistance	Splash Proof
Connector Gauge (AWG) / Strand Count	25 / 40
