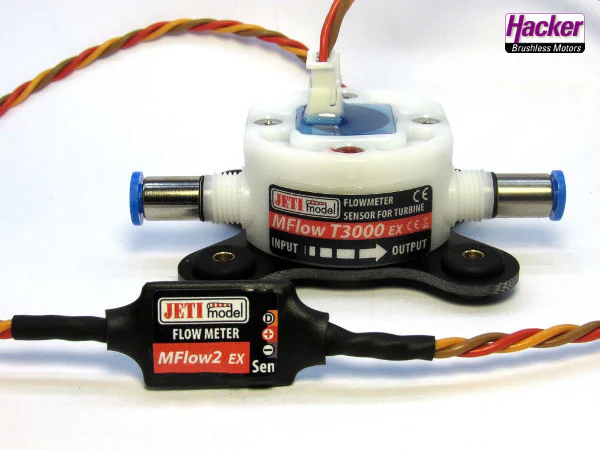

Jeti 2.4EX MFlow2 Turbine 3000 80001323
MFlow2-T3000 for larger Turbines
This telemetry sensor measures the flow of jet fuel from the tank to the turbine and can thus display the tank level reliably.
The MFlow2-T3000 is suitable for models with larger turbine drive.
- The sensor is compatible with the EX-BUS system
- configuration with the device manager of the JETI DC/DS Tx
- reset switch at the DC/DS Tx possible
- EX telemetry values: Actual flow, and tank level
- Adjustable parameters by the user, such as Tank volume, alarm at minimum level
- Firmware update via Jeti USBa
Specifications MFlow turbine:
Measuring range [ml / min]: 50-3000
Measuring tolerance [%]: ± 2
Hose connection [mm]: 2x 4mm Festo
Dimensions [mm]: 77x41x30
Weight [g]: 40
Voltage range [V]: 5-8.4
Operating Temperature [° C]: -20 to 80
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Jeti 2.4EX MFlow2 Turbine 3000 80001323
MFlow2-T3000 for larger Turbines
This telemetry sensor measures the flow of jet fuel from the tank to the turbine and can thus display the tank level reliably.
The MFlow2-T3000 is suitable for models with larger turbine drive.
- The sensor is compatible with the EX-BUS system
- configuration with the device manager of the JETI DC/DS Tx
- reset switch at the DC/DS Tx possible
- EX telemetry values: Actual flow, and tank level
- Adjustable parameters by the user, such as Tank volume, alarm at minimum level
- Firmware update via Jeti USBa
Specifications MFlow turbine:
Measuring range [ml / min]: 50-3000
Measuring tolerance [%]: ± 2
Hose connection [mm]: 2x 4mm Festo
Dimensions [mm]: 77x41x30
Weight [g]: 40
Voltage range [V]: 5-8.4
Operating Temperature [° C]: -20 to 80
