The Story

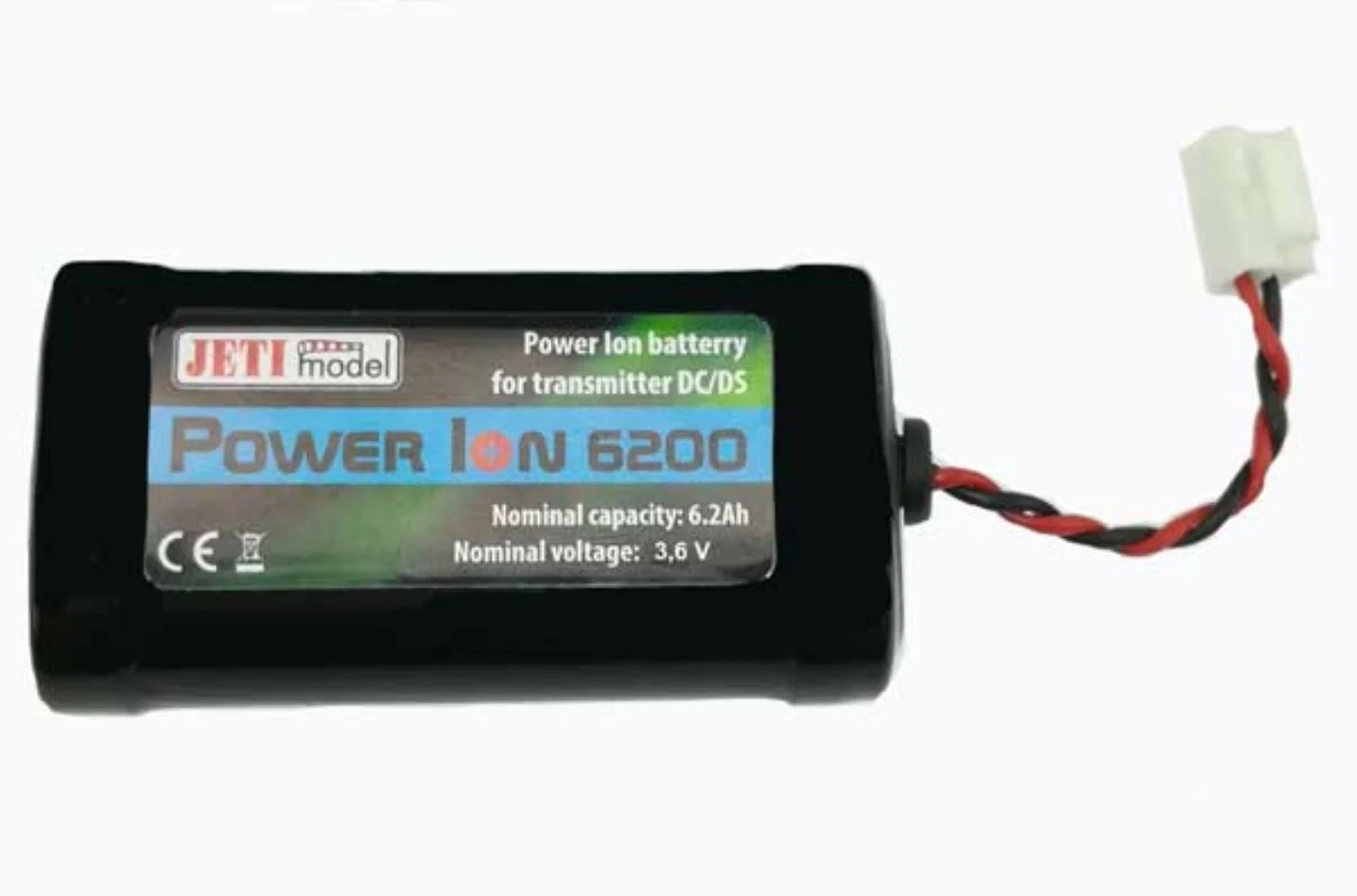

Jeti 6200 TX Battery Pack for DC-DS JETI Transmitters PI-6200-TX 80001661
Power-Ion 6200 Battery Pack is designed to power Jeti model Transmitter of the DC and DS range. The Battery is equipped with a plug to install in the Transmitter. The charging is done via the Transmitter, with either the mains charger or the 12Volt car.
Battery replacement:
- Make sure that the transmitter is turned off.
- Remove the back cover of the transmitter.
- Disconnect the original battery, loosen the Velcro.
- Replace the battery, secure it with the Velcro.
- Connect the battery to the transmitter using the connector.
- Reinstall the back cover of the transmitter.
- Then charge with you chosen charger
|
Weight [g] |
100 |
|
Dimensions [mm] |
75 x 37 x 20 |
|
Cell type |
LiIon |
|
Capacity [mAh] |
6200 |
|
Rated voltage [V] |
3.6 |
|
Max. cell voltage [V] |
4.2 |
|
Max. battery voltage [V] |
4.2 |
