The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box 210 offers maximal unreduced power for each servo (servo outputs do not have overload protection).

The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 210. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.

Attributes

• Central Box 210 has unreduced power for each servo (without fuses)
• Support of DITEX telemetry servos
• Possibility to connect up to 3 receivers with serial interface
• Built-in Expander function for up to 3 sensors
• Input for magnetic switch or RC switch
• 2x MPX battery input connectors
• 100Hz mode of servo outputs (10ms period)
• Supports EX telemetry (voltage, current, capacity, temperature measurement, …)

  Optional over current protection

  The Central Box 210 is not equipped with the built-in overload protection of the servo slots. To protect critical servos such tow coupling servos, retractable landing gears or spoiler servos, the optional overload protection DPSI OCP (Accessories tab) can be used.

  Comparison table Central Box 210/220

  Feature	Central Box 210	Central Box 220
  Servo outputs	15	15
  Protected servo outputs (for servos with up to 30kg/cm)	---	11
  Protected servo outputs (for servos with up to 30kg/cm)	---	4
  Receiver inputs	up to 3	up to 3
  Satellite receiver support	Yes	Yes
  Telemetry	Yes	Yes
  DITEX servo telemetry	Yes	Yes
  Battery inputs	2	2
  Supply voltage [V]	4 up to 8.4	4 up to 8.4
  Voltage regulator	No	No
  Permanent current [A]	20	20
  Peak current (approx. 2 seconds) [A]	90	90
  Idle current [µA]	180	180
  Operating temperature [°C] ([°F])	-20 to 75 (-4 to 167)	-20 to 75 (-4 to 167)
  Abmessungen [mm] ([in])	66 x 42 x 18 (2.6 x 1.65 x 0.71)	66 x 42 x 18 (2.6 x 1.65 x 0.71)
  Gewicht [g] ([oz])	59 (2.08)	64 (2.26)

  Delivery contents

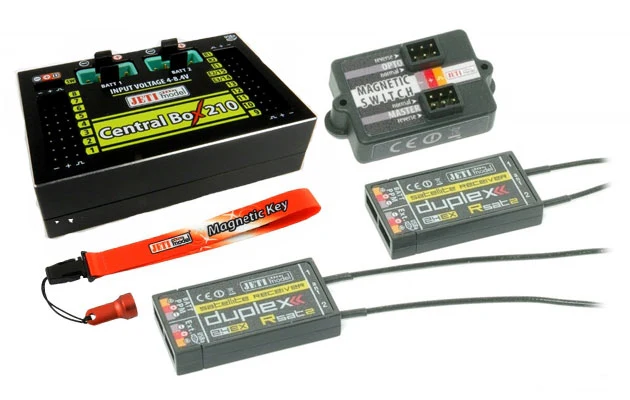

  1 JETI Duplex 2.4EX Central Box 210, 1 magnetic switch, 1 magnetic key, 2 JETI Duplex 2.4EX RSat2 receivers and 3 patch cables.

  Important Note

  If the Cortex pro is operated on a CentralBox, please be sure to use an additional patch cable for +/- supply. See the detailed bavarianDEMON CORTEXpro Instructions.
