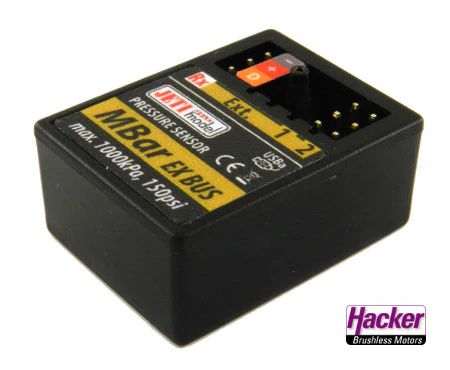

Jeti Duplex 2.4EX MBar JEX-MB 80001321
Duplex MBar Air Pressure Sensor
The Mbar high pressure sensor (Up to 150 psi/ 10 bar). No more damaged airplanes, creating logical condition in your Jeti Radio and using this sensor you can simply set up air retract failsafe function. New sensor is fully compatible with Jeti EX Bus digital communication protocol or can be used as standalone telemetry input.
Technical data MBar EX
Dimensions 30x23x13mm
Weight 7g
Measuring accuracy of absolute pressure ±2%
Resolution of measured pressure 0,1kPa
Measurement range 0÷1000kPa (150psi, 10bar)
Operating temperature -10÷85°C
Recommended supply voltage 3.5 ÷ 8.4V
Maximum supply voltage 16V
Consumption 15mA
Diameter of the extension 2mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Jeti Duplex 2.4EX MBar JEX-MB 80001321
Duplex MBar Air Pressure Sensor
The Mbar high pressure sensor (Up to 150 psi/ 10 bar). No more damaged airplanes, creating logical condition in your Jeti Radio and using this sensor you can simply set up air retract failsafe function. New sensor is fully compatible with Jeti EX Bus digital communication protocol or can be used as standalone telemetry input.
Technical data MBar EX
Dimensions 30x23x13mm
Weight 7g
Measuring accuracy of absolute pressure ±2%
Resolution of measured pressure 0,1kPa
Measurement range 0÷1000kPa (150psi, 10bar)
Operating temperature -10÷85°C
Recommended supply voltage 3.5 ÷ 8.4V
Maximum supply voltage 16V
Consumption 15mA
Diameter of the extension 2mm
