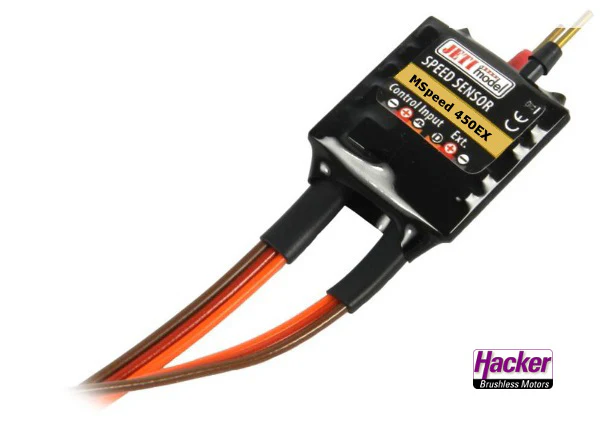

Jeti Duplex 2.4EX MSPEED 450 JEX-MS-450 80001318
The duplex 2.4EX MSpeed ​​450 sensor measures the speed by means of the dynamic pressure technology by pitot tube.
Compared to the previous MSpeed ​​sensor of this Senor is suitable for higher speeds up to 450km / h.
The measured data are transmitted via the telemetry system and can be made visible with a mini Jetibox or Jetibox or displayed in the Jeti transmitter of the DC / DS series.
Specifications MSPEED 450:
Dimensions base unit [mm]: 22x25x13

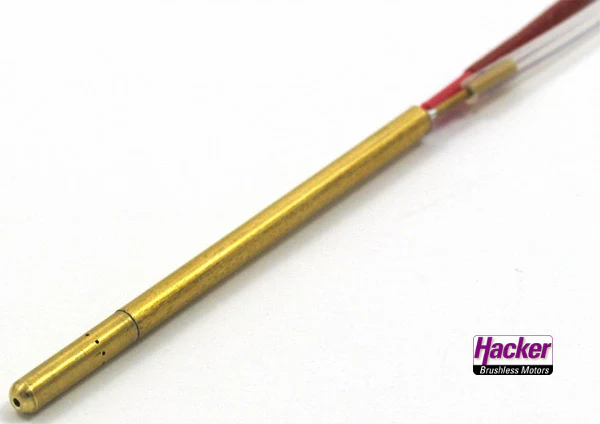

Pitot tube dimensions [mm]: 54x3
Weight (complete): 21g
Accuracy: 5 km / h
Range: 80-450km / h
Operating temperature: 0-85 ° C
Supply voltage: 3,5 - 8,4 V
Power consumption: 10mA
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Jeti Duplex 2.4EX MSPEED 450 JEX-MS-450 80001318
The duplex 2.4EX MSpeed ​​450 sensor measures the speed by means of the dynamic pressure technology by pitot tube.
Compared to the previous MSpeed ​​sensor of this Senor is suitable for higher speeds up to 450km / h.
The measured data are transmitted via the telemetry system and can be made visible with a mini Jetibox or Jetibox or displayed in the Jeti transmitter of the DC / DS series.
Specifications MSPEED 450:
Dimensions base unit [mm]: 22x25x13
Pitot tube dimensions [mm]: 54x3
Weight (complete): 21g
Accuracy: 5 km / h
Range: 80-450km / h
Operating temperature: 0-85 ° C
Supply voltage: 3,5 - 8,4 V
Power consumption: 10mA
