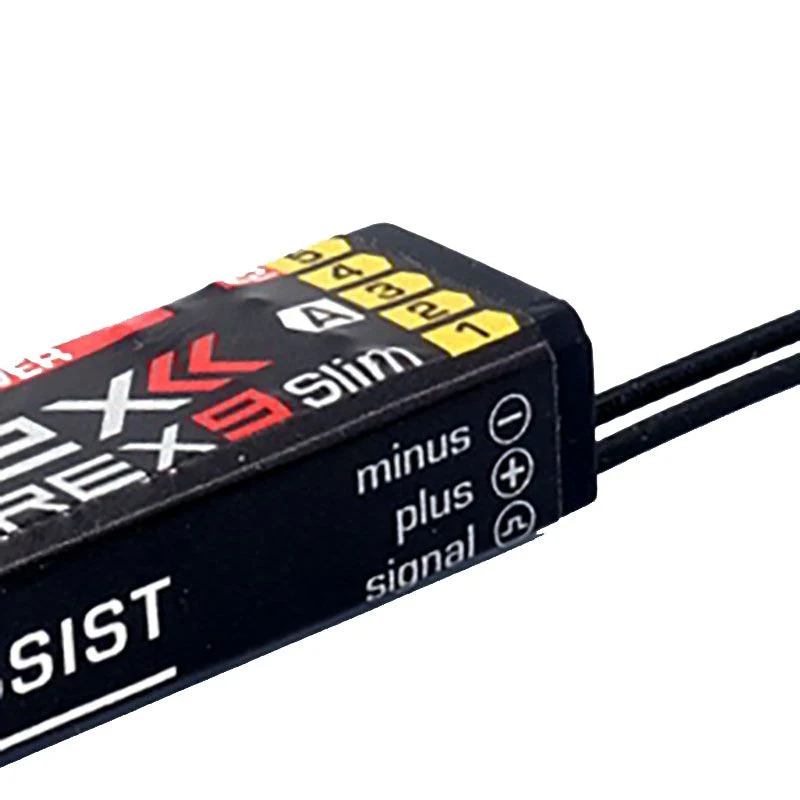

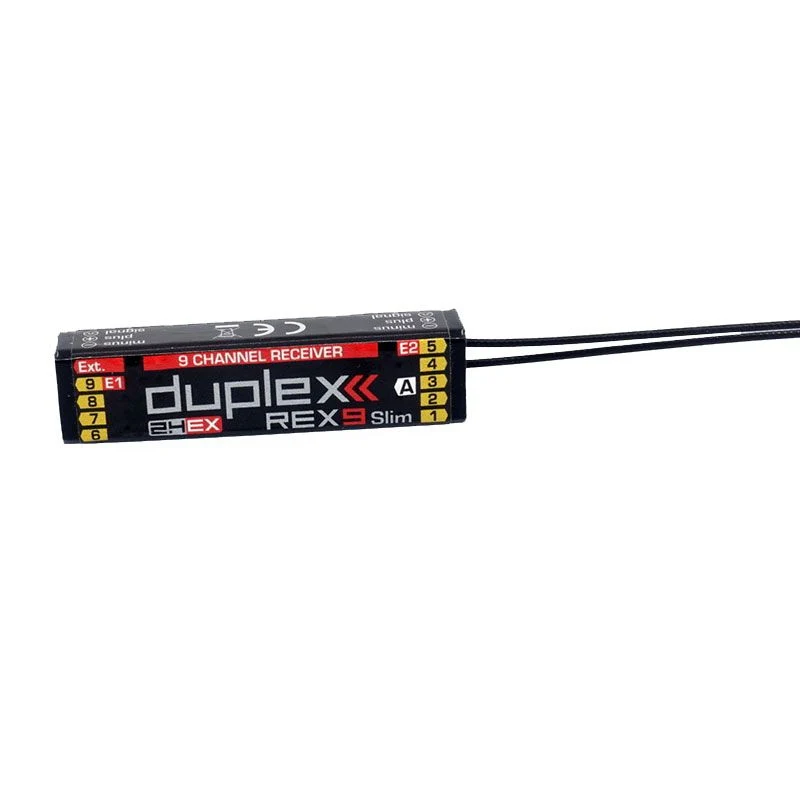

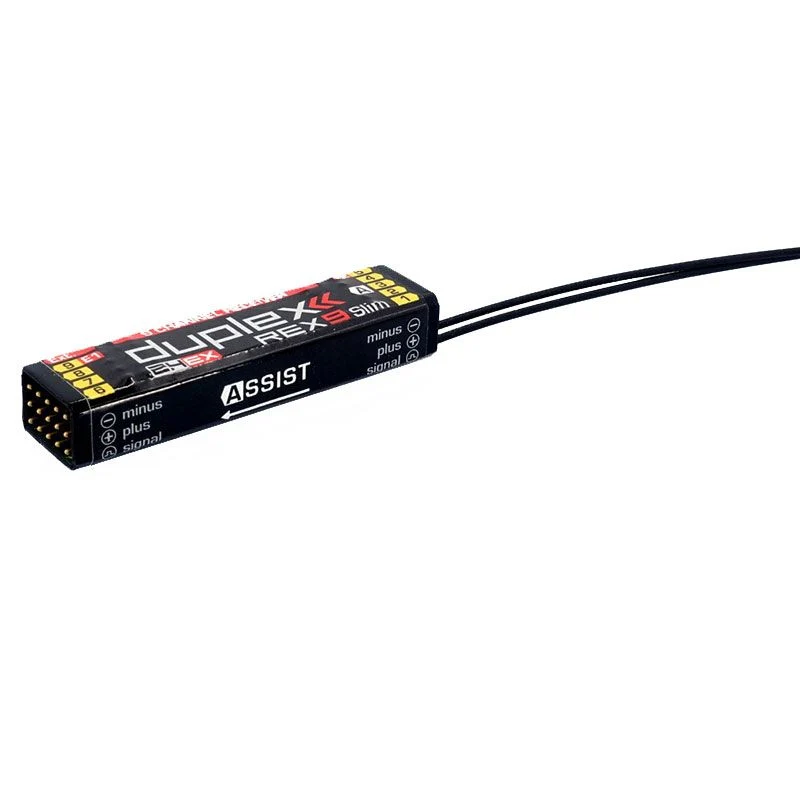

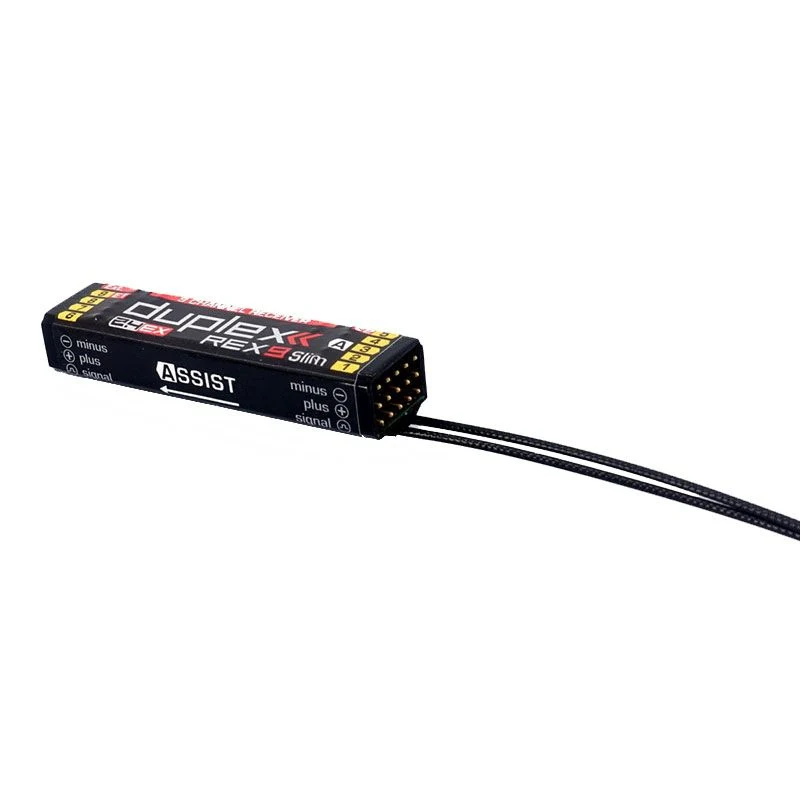

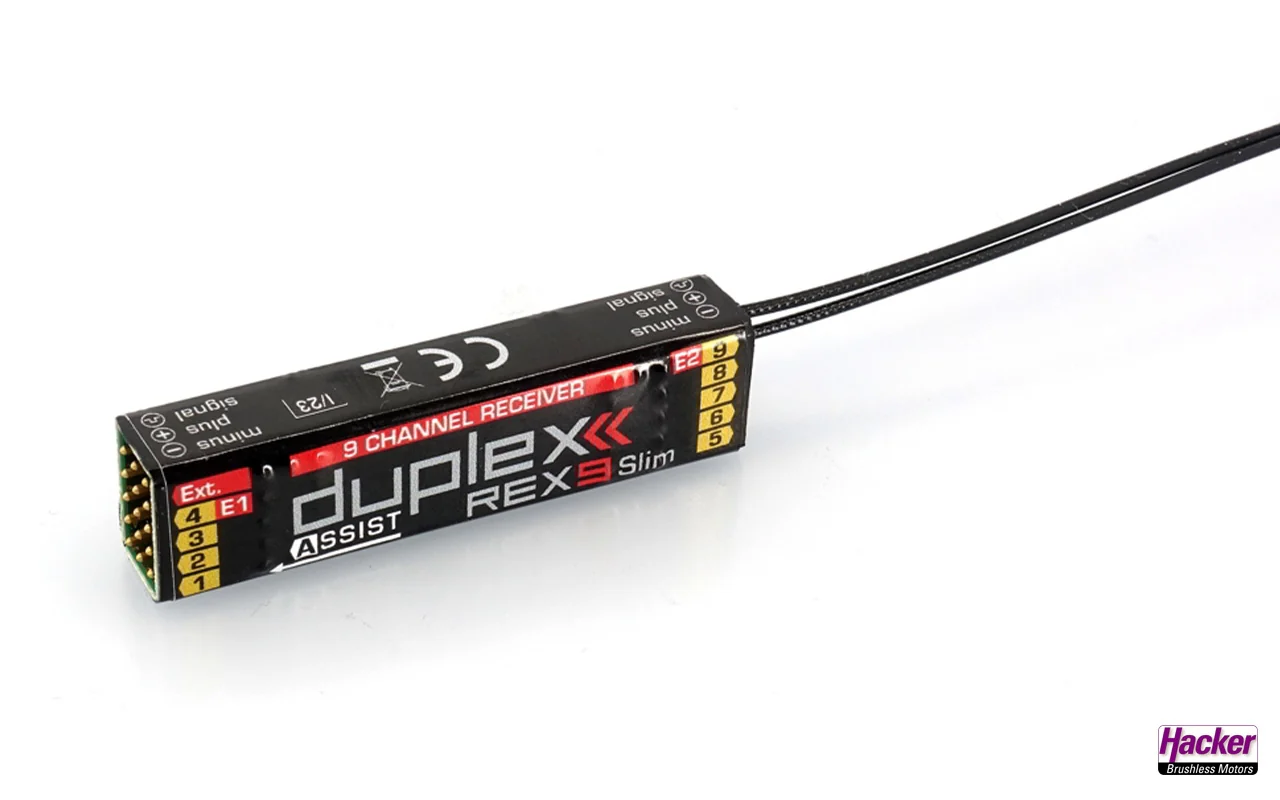

Jeti Duplex REX 9 SLIM Assist Receiver with Factory Vario Update JDEX-RR9S-A-Vario

Jeti Duplex REX 9 SLIM Assist Receiver with Factory Vario Update JDEX-RR9S-A-Vario

The DUPLEX 2.4EX Receiver REX 9 Slim is a completely new type of receiver from the REX SLIM series with 9 servo slots. The receivers are specially designed for models with very narrow fuselages (e.g. F3J, F5J, etc.).

The REX Slim receivers offer all the features of the well-known REX receiver series with a minimal cross-section.

- supported protocols: PPM, EX BUS, EX Telemetry, S.Bus
- freely programmable channel assignment of the slots
- compact dimensions
- full range
- wireless programmable via the device overview of the Duplex DC/DS transmitters
- programmable via the JETIBOX

- integrated ASSIST stabilisation system with damping, heading hold, trainer mode...
- additional, integrated telemetry: rotation angle on 3 axes, G-Force, temperature
- for fixed-wing models and multicopters
- can output stabilised EX bus signal for e.g. CentralBoxes
- of course also suitable for delta and flying wing models

Technical data
Dimensions: 15 x 12.5 x 60mm
Weight: 12 g
Supply voltage: 3.5 - 8.4V
Telemetry: Yes
Stabilisation ASSIST: Yes, with REX7 Slim Assist and REX 9 Slim Assist
Servo slots: 9
Antenna length: 2x 200 mm

Scope of delivery
1 DUPLEX 2.4EX Receiver REX 9 Slim Assist

Please note these receivers have the pinouts set with the signal wire down

Before using the "SLIM" receivers you will need to update your Transmitter with the latest Device files by running the latest update in Jeti Studio
