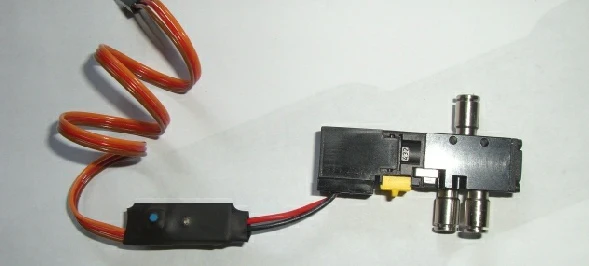

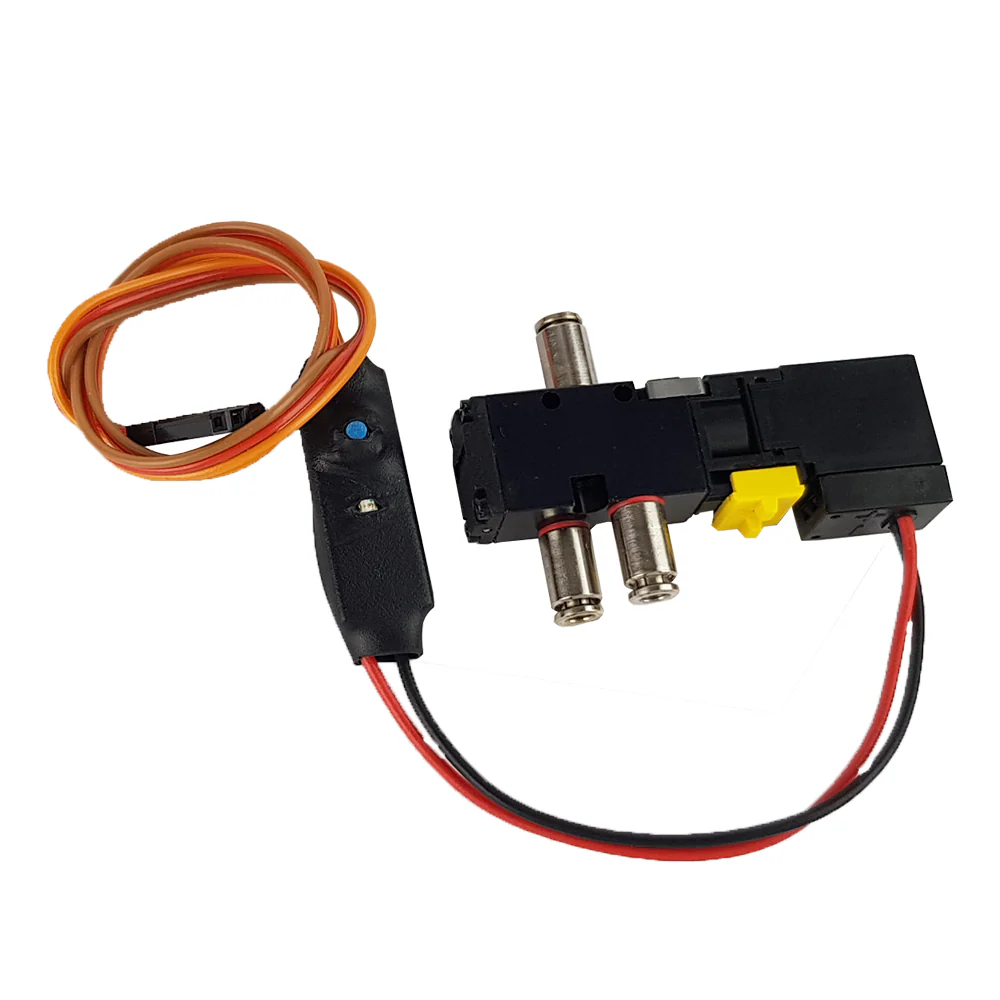

HF-Valve (High Flow) JetTronics Double / Dual High Flow Valve from Jet-Tronics for large retracts
The "Jet-Tronics Doublevalve High Flow" is a compact and light special valve with high air throughput matching for bigger cylinders allowing a larger volume of air to move quickly to help a heavy undercarriage move.
This Jet Tronic Single valve is attached directly to the receiver to control undercarriages with spring loaded single acting cylinders
4mm version also available on request.
Please see the Information Steet Below.
The HF-valve needs a minimum pressure of 1 to 2 bar to operate.
Adjusting switching point:
-
Switch on transmitter/receiver.
-
Transmitter function to "Gear DOWN".
-
Push button 1 x and wait 2 seconds.
-
ransmitter function to "Gear UP"
-
Push button 2 x and wait 2 seconds.
-
Check function.
-
In case the electronic board is in the PWM Mode (Rattling noise) because the button was pushed during power up, please perform following steps:
-
Keep button pressed.
-
Turn on receiver.
-
Wait 2 Seconds, release button
(Important for all adjustments: All button sequences must be carried out within 2 seconds.
Push button underneath heat shrink.
Use Allen Wrench for fasten the connectors. Do not push the Allen Key up against the end, it could hurt one of the O-rings inside the valve)
|
Technical data |
|
|
Supply voltage |
3,5 V - 7,5 V |
|
Current consumption |
100 mA |
|
Pressure range |
0 - 10 bar |
|
Measurements (L/W/H) |
53 x 18 x 10 mm |
|
Weight |
30 g |
|
Connection |
Push fit connectors for 3mm outer diameter tube 4mm version also available |
