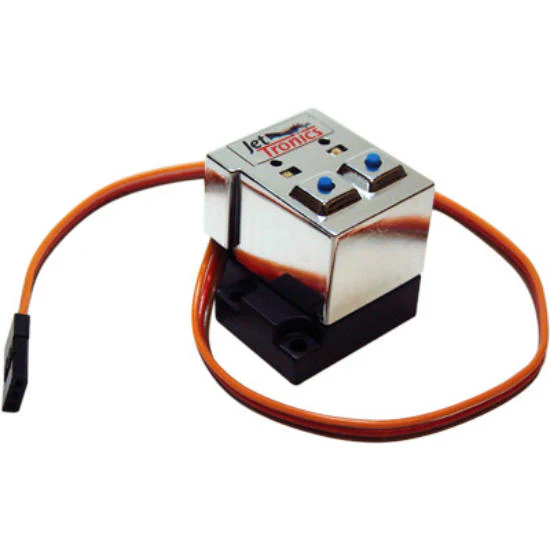

JetTronics Double Electronic Valve Jd-Ventil from Jet-Tronics for retracts Doors & Air Brake Rams

JetTronics Double Electronic Valve 3F8-RT from Jet-Tronics for retracts Doors & Air Brakes Dual Air - Air Systems Jd-Ventil

This ultra-light Jet-Tronics Double-Valve switches double action pneumatic cylinders. It has a speed control function for gear IN and OUT as well as an "Air-Fail-Safe" function and a manual control possibility. It is attached directly to the receiver to control undercarriages with double acting cylinders and or Doors/ Air Brakes.

These valves are equipped with new digital microcontrollers, making their handling even more convenient: Ease programmable brake thresholds for compatibility with all R/C receivers.

The valve is simply connected to a receiver- or controller-output just like you would connect a servo. This allows precise and easy programming of the switching points with the help of a small push-buttons on the valve.

Two LED's informs you about the current switching state.

Technical data
Supply voltage	3,5 V - 7,5 V
Current consumption	100 mA bei 5 V
Pressure range	0 - 10 bar
Dimensions (L/W/H)	29 x 28 x 29 mm
Weight	32 g
Connection	Universal connectors for tubes from 2.5 to 4 mm outside diameter
