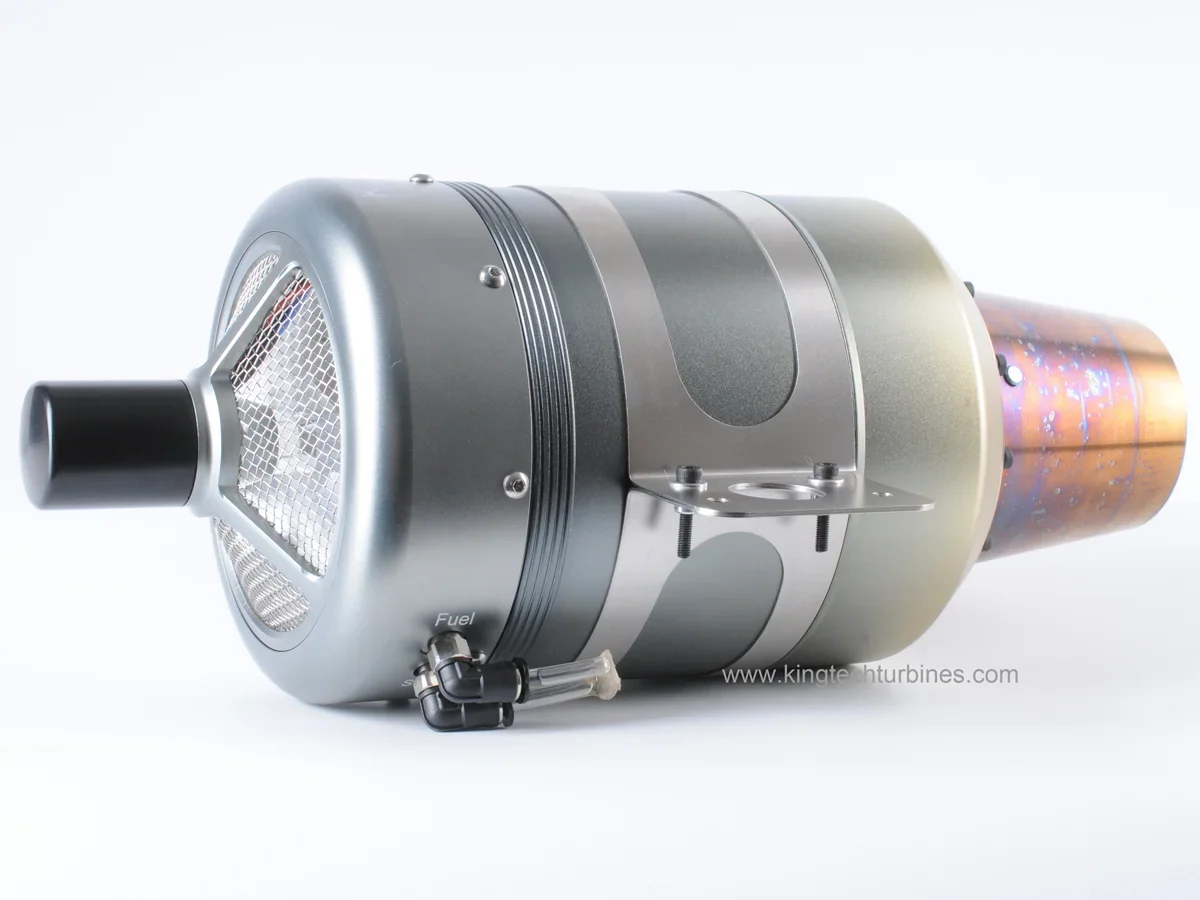

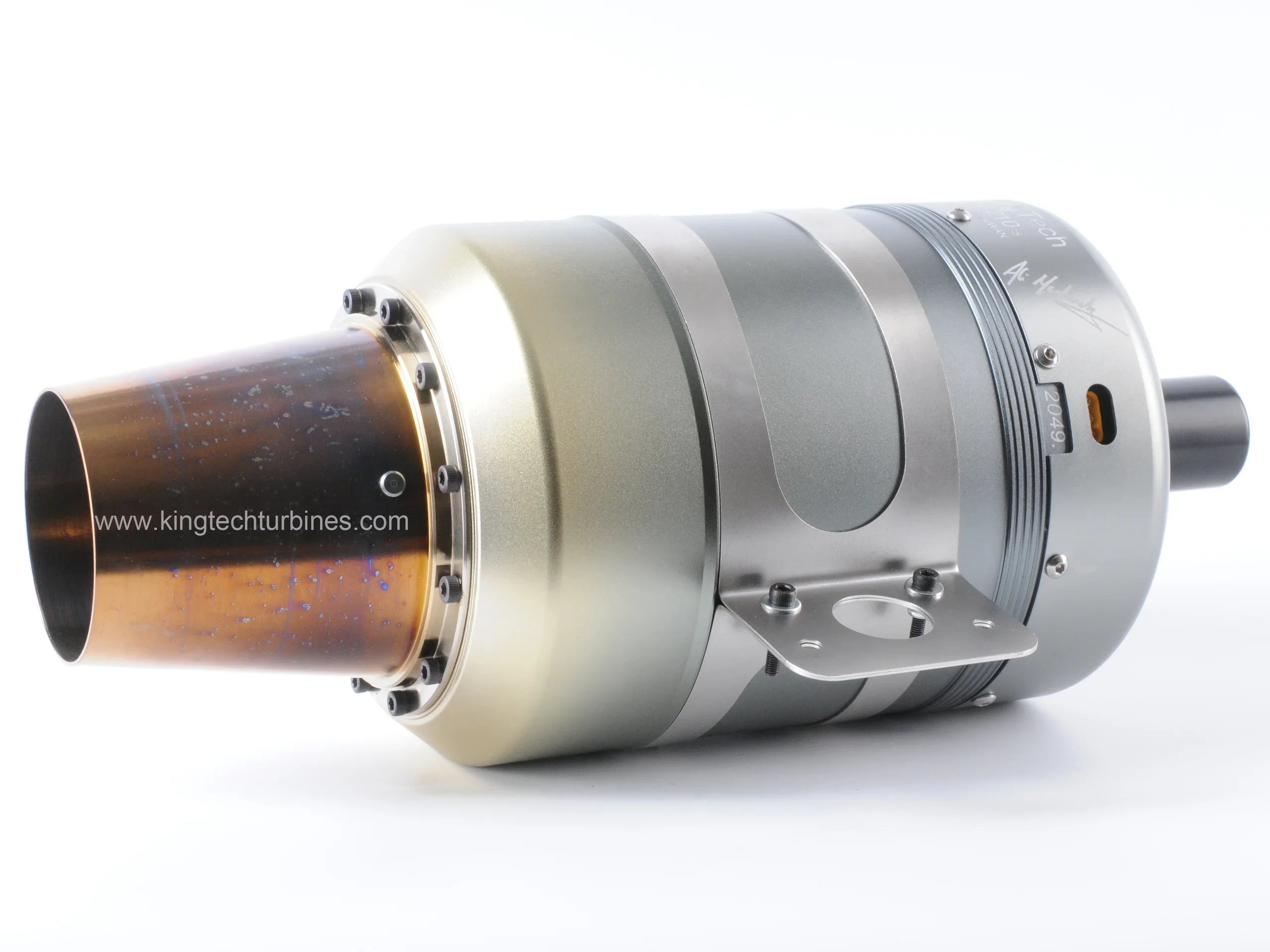

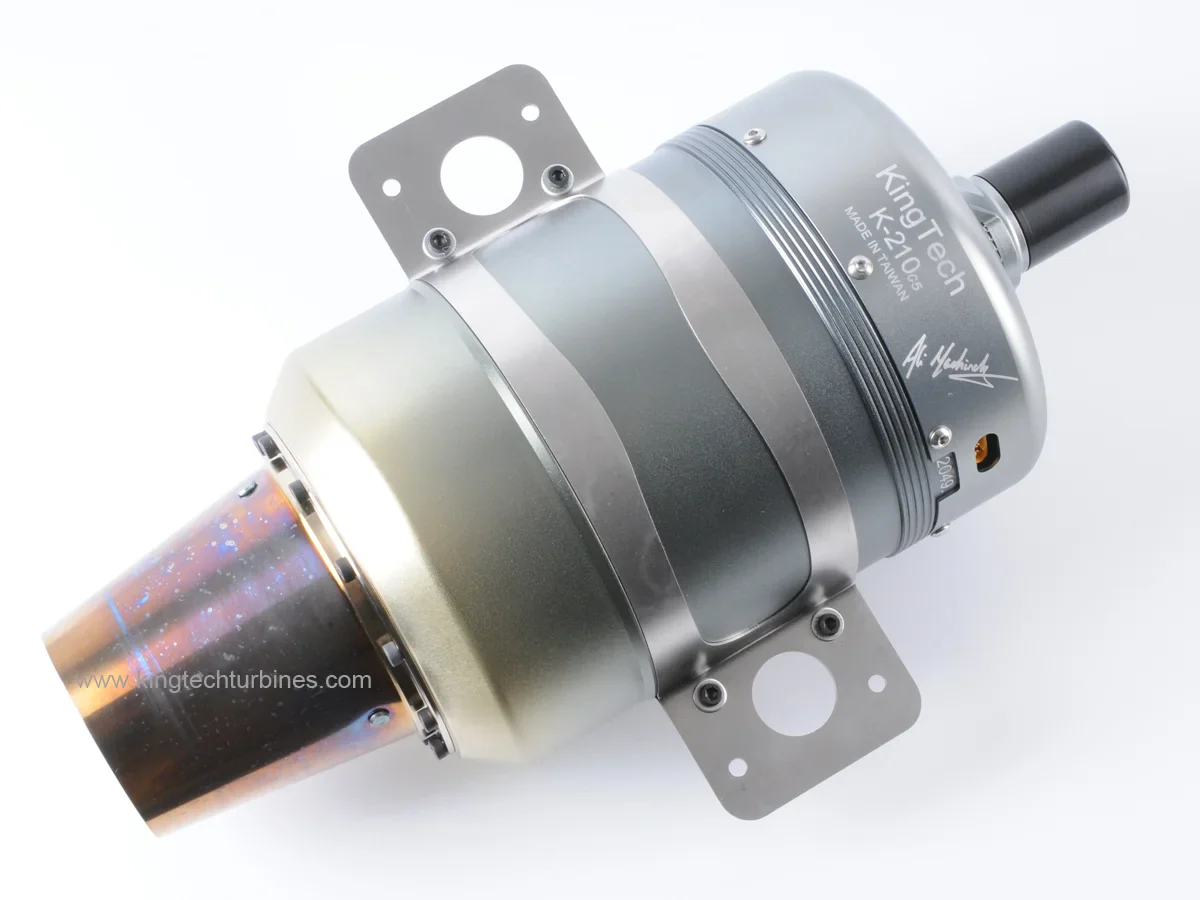

KingTech K210G5 Turbine Engine

KingTech K210G5 Turbine Engine

New G5 Fifth Generation
The G5 turbines have the KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter.

FEATURES:
KingTech G5 utilizes SBus data transmission.
Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
The G5 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
 After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K-210G5 SPECIFICATIONS

Diameter: 112.6mm / 4.43”

Length: 280mm / 11.02”

Weight: 1740g / 3.83lb

Maximum RPM: 121000

Thrust: 21kg @ max RPM / 46.3 lb @ max RPM

EGT: 750°C max

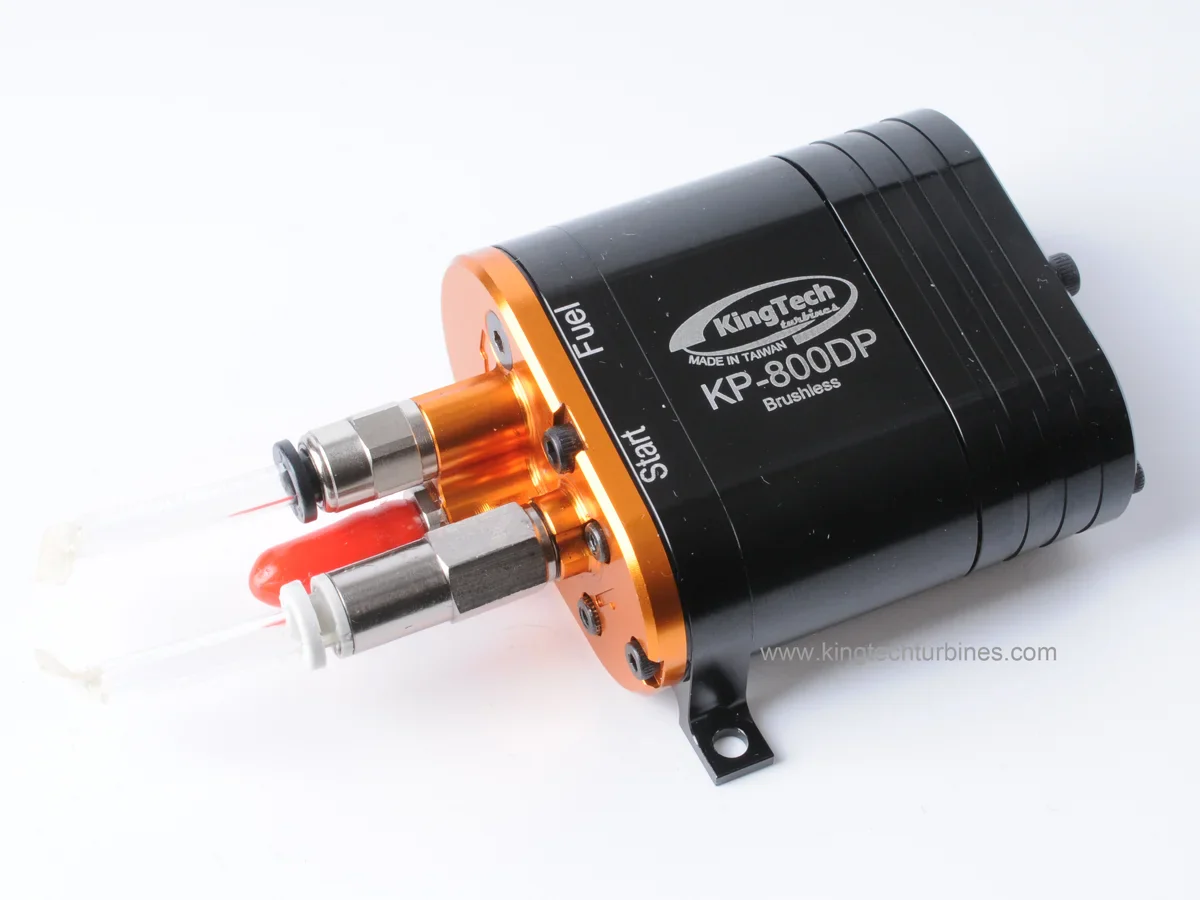

Pump type: Digital sbus brushless pump KP800DP

Battery:11.1v Lipo ( At least 2200mah 35C )

Start time: 10~15 seconds

Fuel consumption: 590g / min ( 20.81oz )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr US$300

G5 MODEL COMPONENTS LIST

• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

• Digital Sbus brushless pump KP800DP

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
