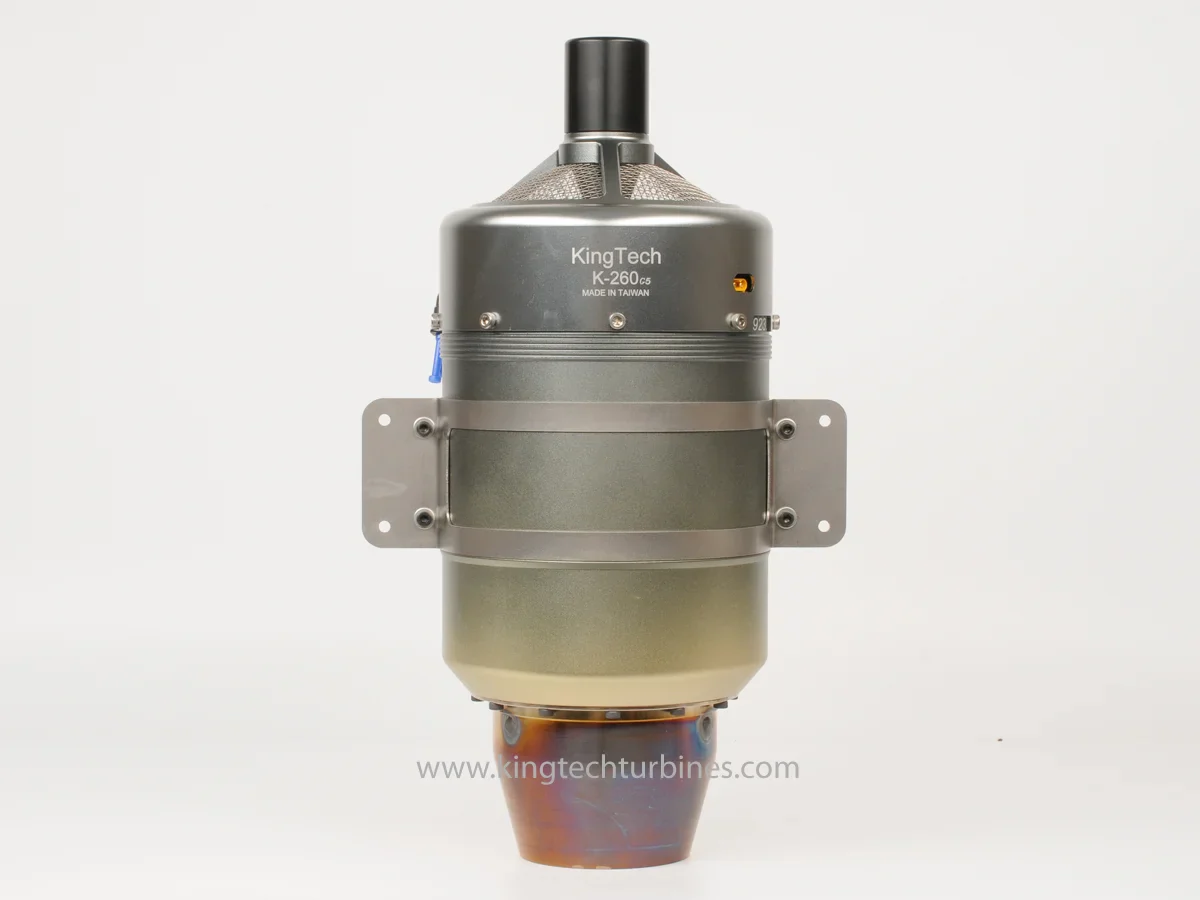

KingTech K260 G5 Turbine Engine K260 G5

The New Generation 5 K260 G5 Turbine Engine

The G5 versions what's new:

Very fast starting behaviour between 9-15 seconds depending on the turbine.
Fast restart in the event of a flameout.
New electronics, new pump.
G5 is operated with Lipo 3S.

K-260 G5 SPECIFICATIONS

Diameter: 120mm / 4.72”

Length: 299mm / 11.77”

Weight: 2200g / 4.85lb

Maximum RPM: 112,000RPM

Max Thrust: 26kg ±0.5 ( 57lb )

EGT: 750°C max

Pump type: Digital sbus brushless pump KP1000DP

Battery:11.1v Lipo ( At least 2200mah 35C )

Start time: 10~15 seconds

Fuel consumption: 760g / min ( 26.80oz )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr

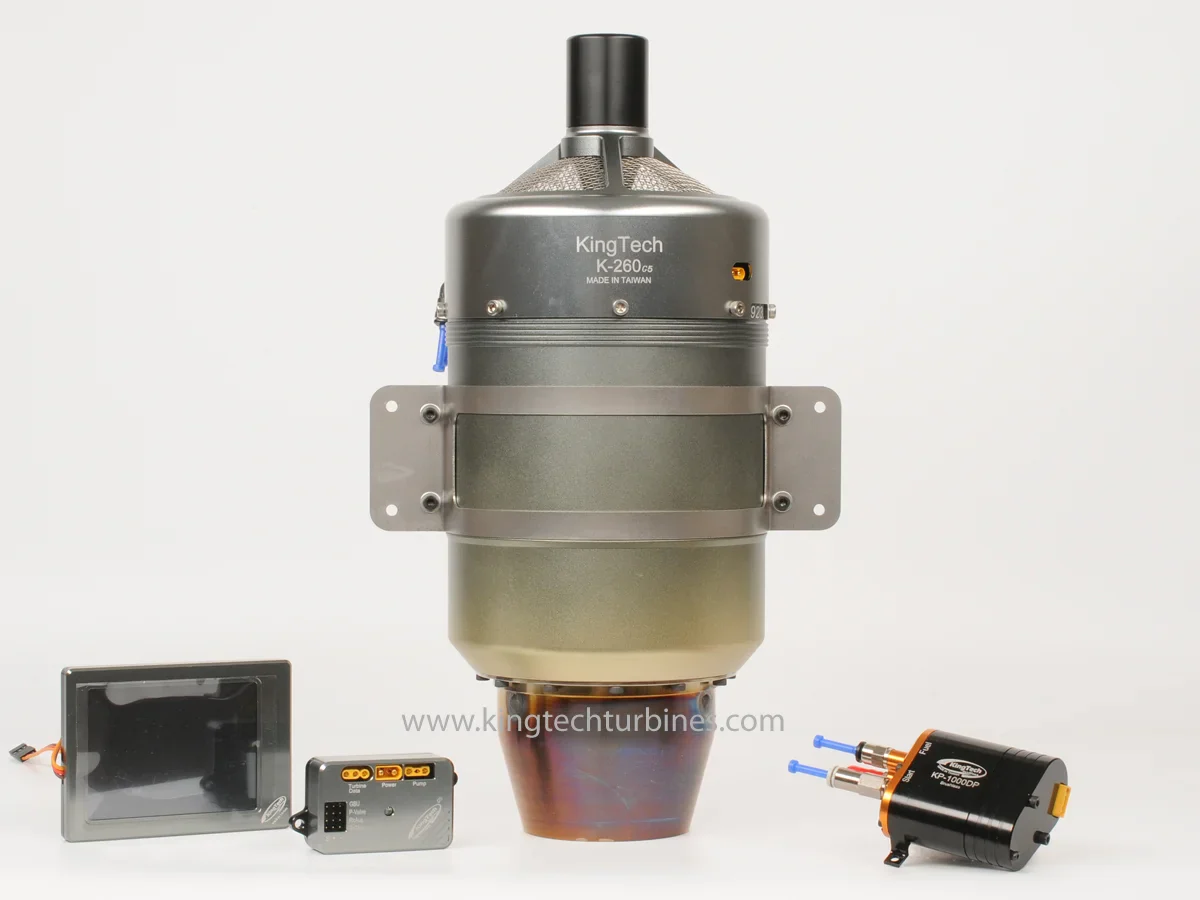

G5 MODEL COMPONENTS LIST

• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

• Digital Sbus brushless pump KP1200DP

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
