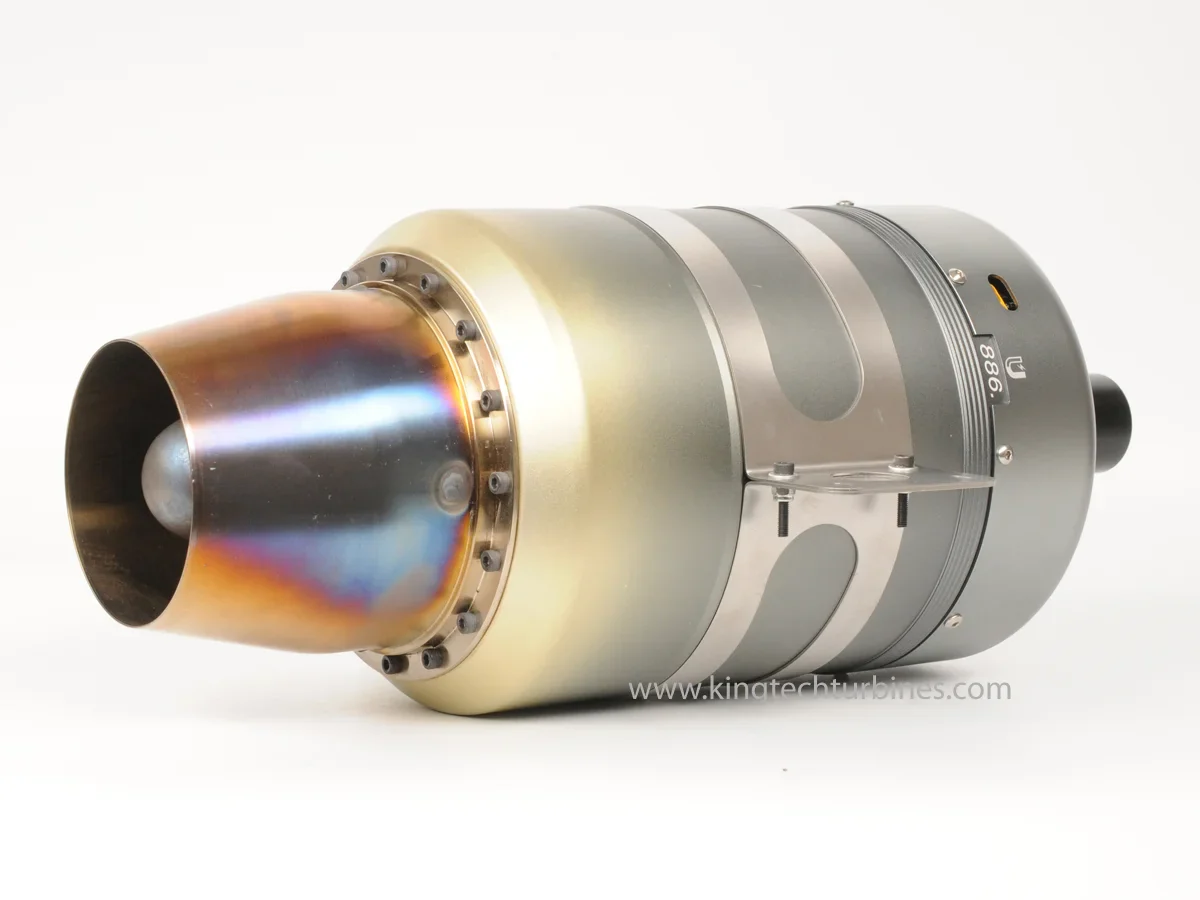

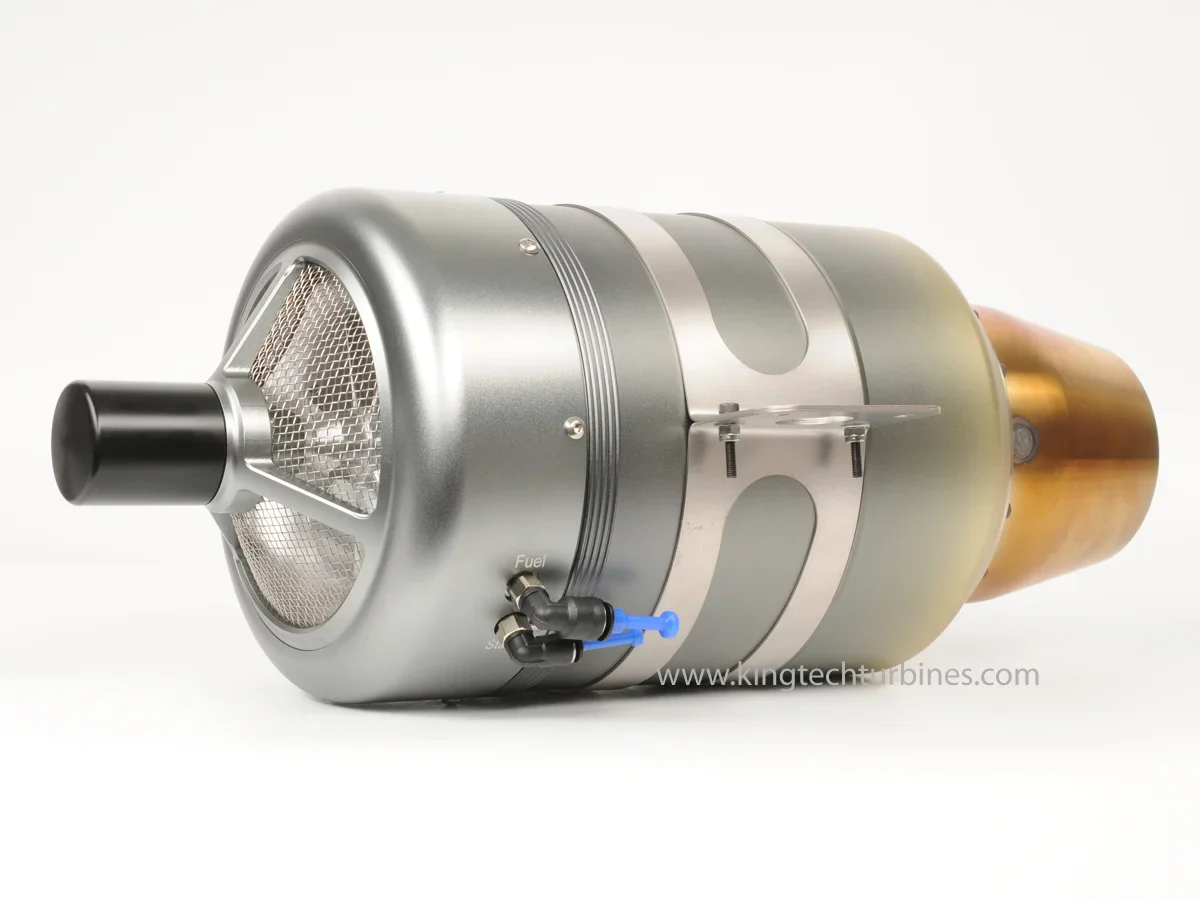

KingTech K320 G5 Turbine Engine K320G5

The New Generation 5 K320 G5 Turbine Engine

The G5 versions what's new:

Very fast starting behaviour between 9-15 seconds depending on the turbine.
Fast restart in the event of a flameout.
New electronics, new pump.
G5 is operated with Lipo 3S.

K-320 G5 SPECIFICATIONS

Diameter: 132.5 mm

Length: 335 mm

Weight: 2.9 kg

Max, RPM: 100,000

Max Thrust: 32 kg @ 15° C

EGT: 730°C max

Pump type:Digital sbus brushless pump(KP1200DP)

Battery:11.1v Lipo(At least 35C)

Start time: 10~15sec

Fuel consumption: 870 g / min

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr

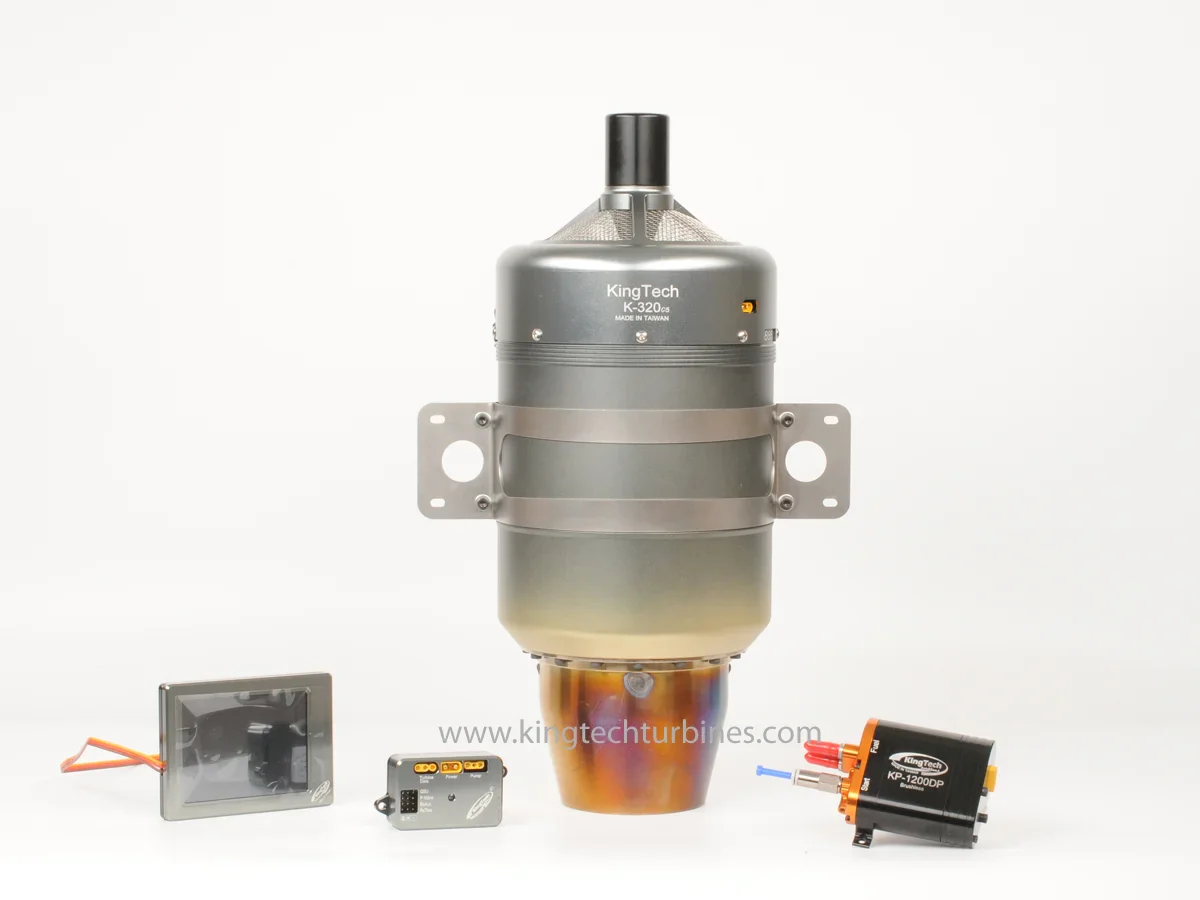

G5 MODEL COMPONENTS LIST

• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

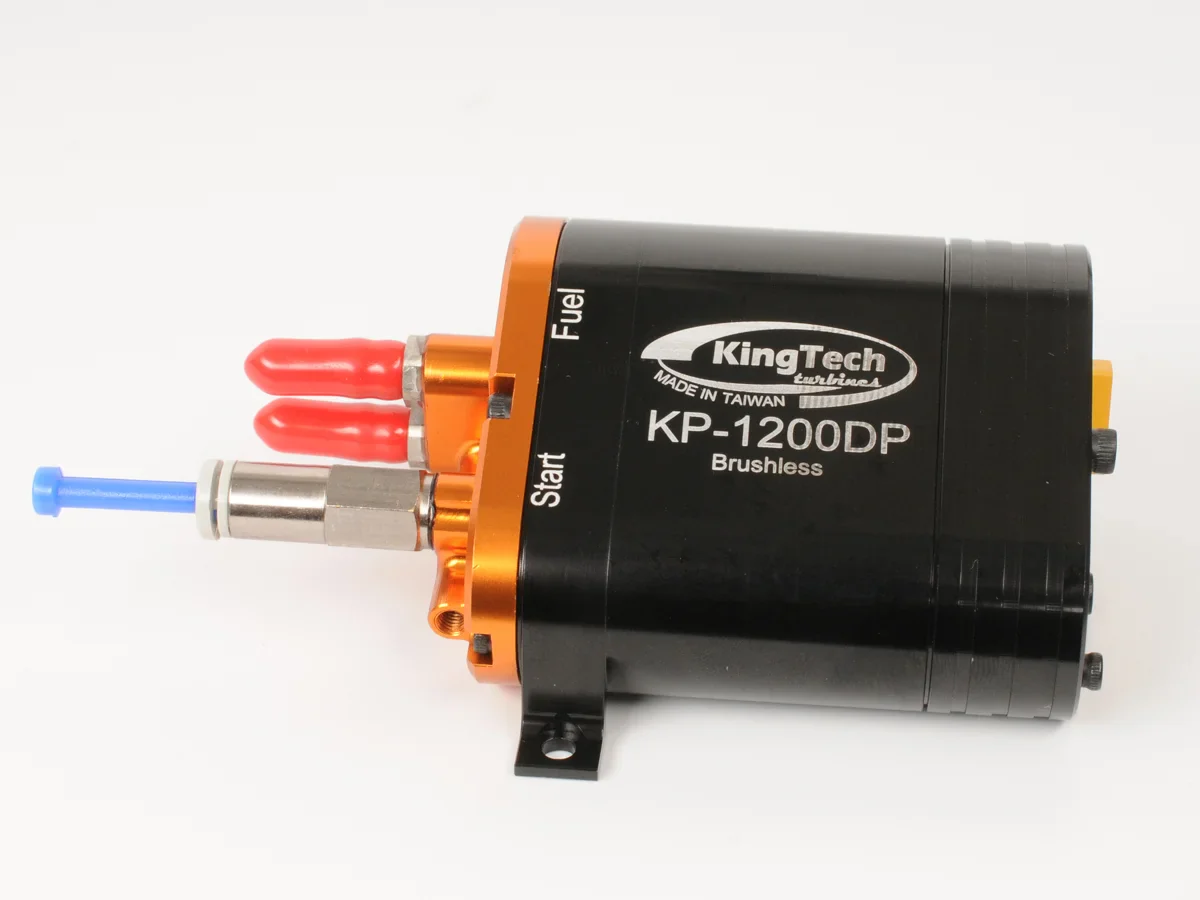

• Digital Sbus brushless pump KP1200DP

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
