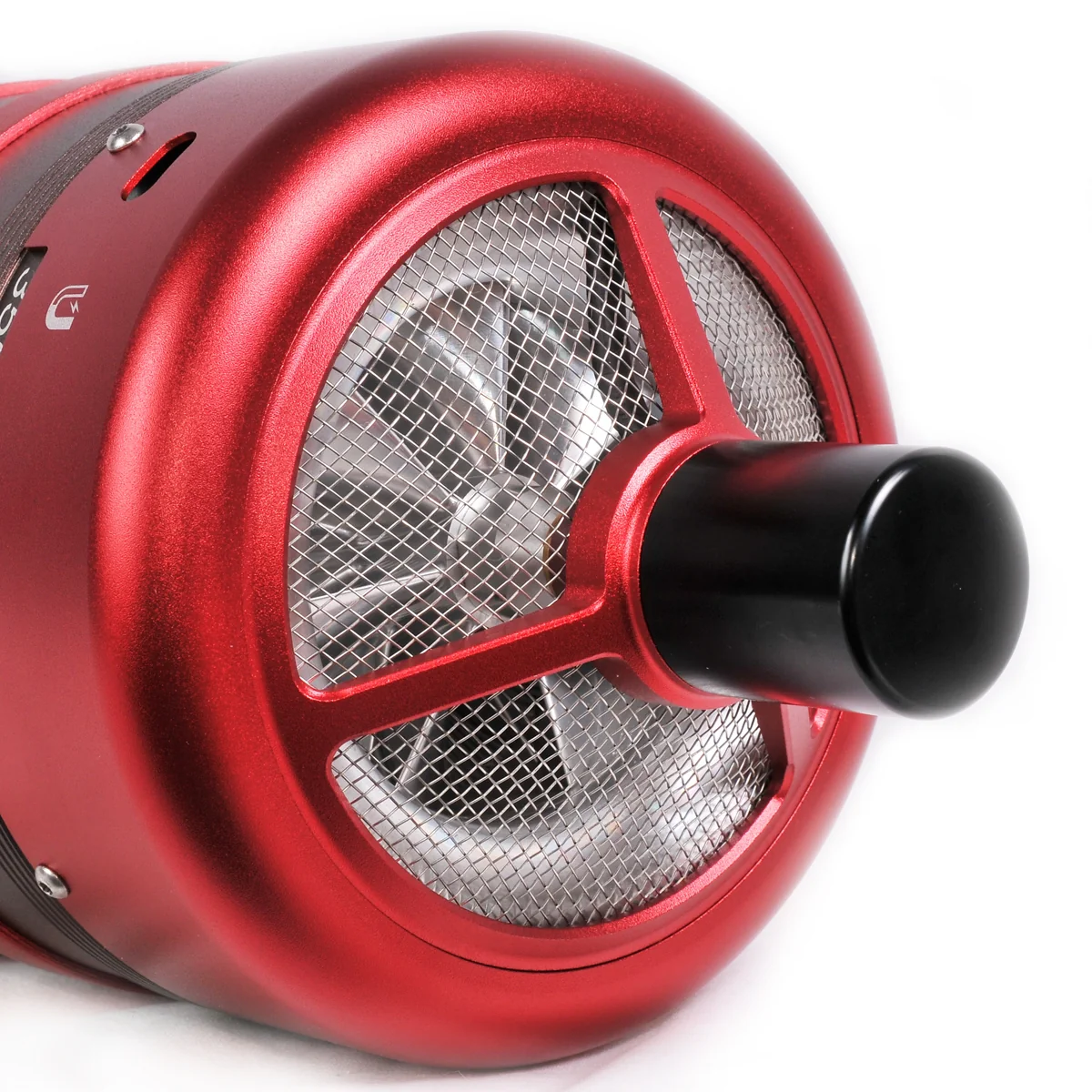

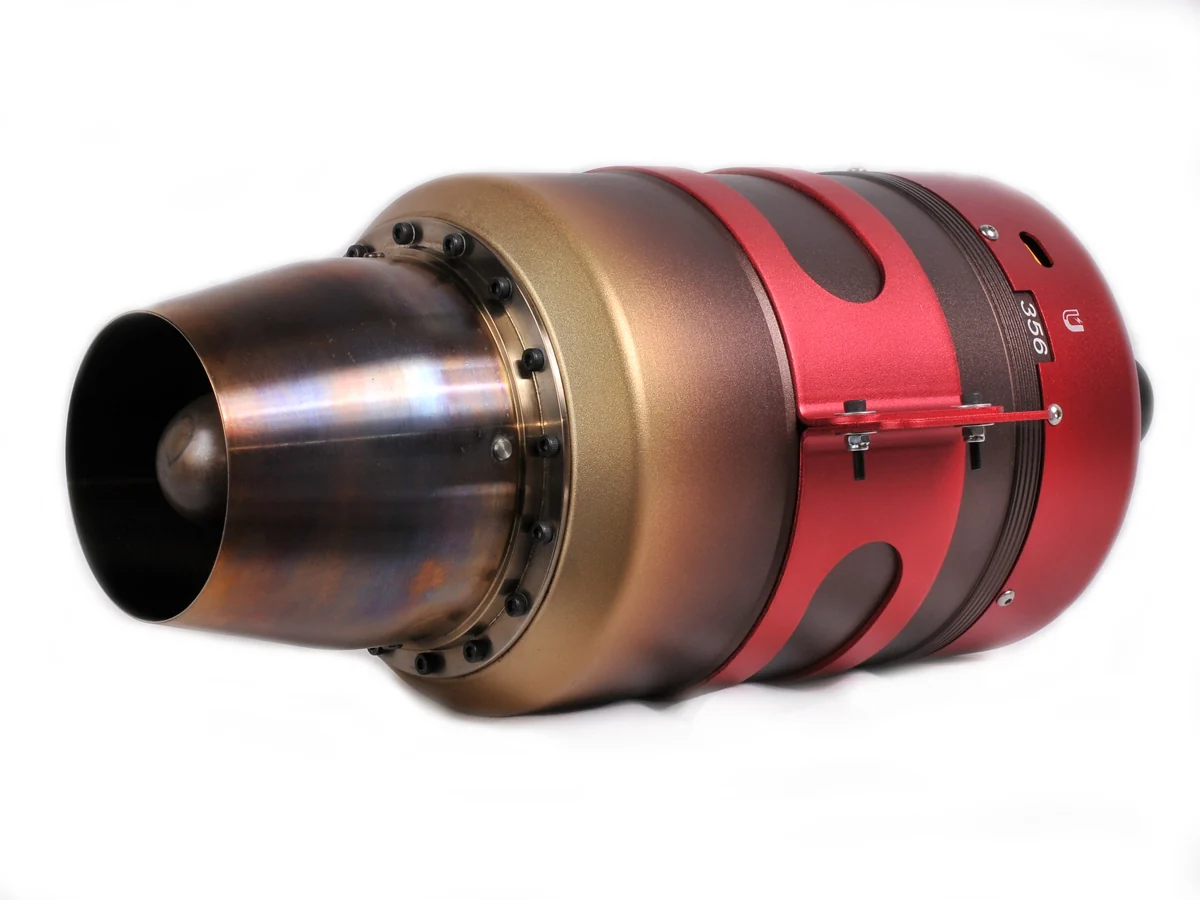

KingTech K320G4 Turbine Engine

KingTech K320G4 Turbine Jet Engine

The KingTech G4 fourth generation is a true Fuel Start turbine, will start and run on Diesel, Kerosene and JetA. The G4 turbines now have a KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter, new features, app * for Android and IOS, ECU mainboard, all parameters and timers integrated in the RPM sensor in the turbine.
Data relay module (DRM) integrated in the turbine, DRM transmits data, signals and power distribution, bluetooth, USB connection for upgrades and later planned features.

G series have both solenoid valves built into the front cover, with a single fuel feed that eliminates at least 8 fuel connections upstream to the turbine, making a clean engine install a very simple task.

The KingTech K-320G4 turbine engine is made in Taiwan.

Specifications:
Diameter: 132.5 mm ( 5-1/4? )
Length: 330 mm ( 13-1/4? )
Weight: 2.8 kg ( 6.4 lb )
RPM Range: up to 30,000-100,000RPM
Max Thrust: 32 kg ( 71 lb )
EGT: 700°C max
Fuel consumption: 870 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%

K320G4 set includes KingTech ECU, GSU, ECU cable, pump, cable set, fuel filter, 4mm connection assortment pack and 4mm shout-off valve
