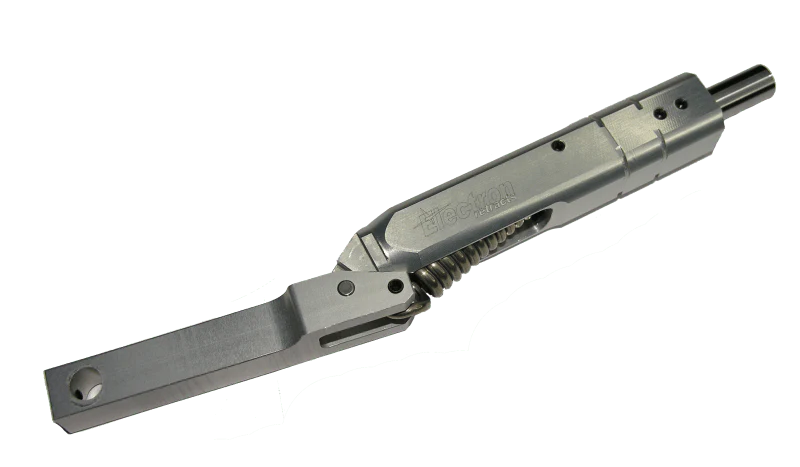

Electron Main Leg Pair 129mm Long 8mm Pin (without wheel) from Electron Retracts
HomeStore

Electron Main Leg Pair 129mm Long 8mm Pin (without wheel) from Electron Retracts

Electron Main Leg Pair 129mm Long 8mm Pin (without wheel) from Electron Retracts

$121.25
Electron Main Leg Pair 129mm Long 8mm Pin (without wheel) from Electron Retracts—
$121.25

The Story

Main Leg Pair 129mm Long 8mm Pin (without wheel) from Electron Retracts but other legs are available to order. Please see info below.


All Electron legs are made with 7075 T6 aluminium, anodised, and laser engraved the Electron logo.

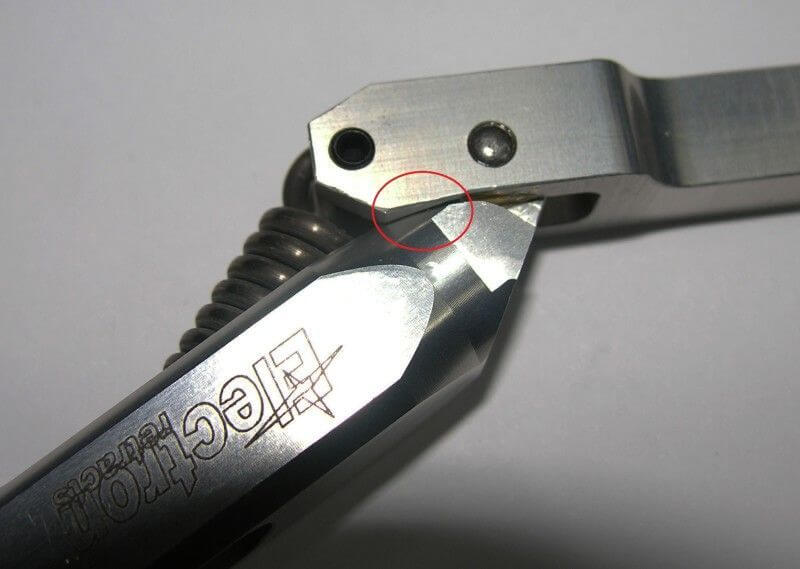

The legs are provided with two flat surfaces to limit how much the lower arm can flex in a heavy landing, thus also assuring that the spring always stays within its elastic limitations and avoiding spring fatigue.


Electron provide the correct size legs with each combo, however the following list shows all available struts should your model require any different sizes.


* The axle hole has a tolerance of +0.03 / +0.05


Weight approximate for each leg:
ER-40 leg: 110gr
ER-50 leg: 140gr


Main legs dimensions





Main legs dimensions
ER30 ER40 ER50
Conection pin diameter (mm) Axle wheel diameter (mm) Conection pin diameter (mm) Axle wheel diameter (mm) Conection pin diameter (mm) Axle wheel diameter (mm)



6 5
– –



6 6
8 6



10 8
– –
ER30 ER40 ER50
Lenght (mm) Offset (mm) Lenght (mm) Offset (mm) Lenght (mm) Offset (mm)



110 14
129 20
122 12
141 22
132 17
151 25
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –



110 19
112 15
115 9
117 2
121 21
123 16
125 11
126 9
127 4
128 2
132 22
136 11
138 5
138 21
146 17
147 no
147 6
148 23
153 11
155 2
163 13
165 5
168 21
173 2
173 10
183 6
183 17
193 11



150 16
153 no
160 22
163 2
166 16
168 2
170 17
175 21
174 1
178 5
180 22
184 5
190 16
193 2
200 21
204 2
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
ER40 ER 40 ER50 ER 50
