Orbit PowerJack 7014 for Futaba R7014SB / R7114SB / R7214SB / R7314SB Receivers by Evojet

Orbit PowerJack 7014 for Futaba R7014SB / R7114SB / R7214SB / R7314SB Receivers by Evojet 2714

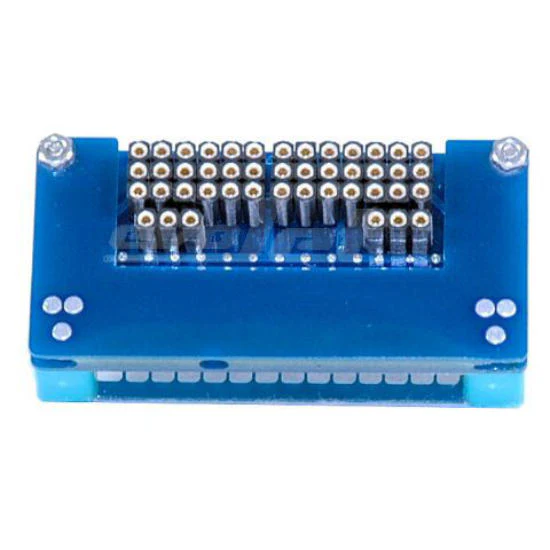

The Orbit PowerJack 7014 is a 14 channel Servobox with double voltage regulators for all 7014 style receivers. It will be plugged directly by tight precision contacts onto the 7014. The power will be supplied via two MPX high amp connectors from the battery(ies) or the switch harness(es). Because of its small and lightweight construction, the Power-Jack 7014 is particular suited for middle and large models with long wiring and digital servos.

Servobox: 14 ch 5 V impulse out
Power Supply: single or double battery 4.8V - 8.5 V HV for the servos
Rating: up to 30 Amps
Connections: JR / Uni / Futaba with Gold pins
Dimensions: 57 x 28 x 16 mm
Weight: 20 g

Package includes: PowerJack 7014 and two MPX connectors (suitable power switch harness see Item: [2714])

Instructions PDF
