The Story

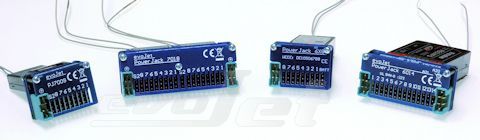

The PowerJack 7018 is a 16 channel Servobox for a double 7008SB (6308SB) type receiver set. 2718B
They are plugged directly by tight precision contacts onto the 7018.

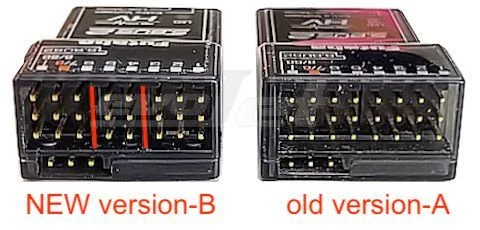

Please Note: Futaba have changed the case design on the later 7008 recievers and these will not fit this Powerjack. The new receiver has a plastic bar between the servo plugs in the center. All older 7008's fit perfectly.
The power will be supplied via two MPX high amp connectors from the battery(ies) or the switch harness(es).
Because of its small and lightweight construction, the PowerJack 7018 is particular suited for middle and large models with long wiring and digital servos.
- Servobox: 16 ch 5 V impulse out plus 2 ch SBUS2 out
- Power Supply: single or double battery 4.8V - 8.5 V HV for the servos
- Rating: up to 30 Amps
- Connections: JR / Uni / Futaba with Goldpins
- Dimensions: 72 x 27 x 16 mm
- Weight: 26 g
- Package includes: PowerJack 7018 and two MPX connectors (suitable power switch harness see Item: [2222])
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The PowerJack 7018 is a 16 channel Servobox for a double 7008SB (6308SB) type receiver set. 2718B
They are plugged directly by tight precision contacts onto the 7018.
Please Note: Futaba have changed the case design on the later 7008 recievers and these will not fit this Powerjack. The new receiver has a plastic bar between the servo plugs in the center. All older 7008's fit perfectly.
The power will be supplied via two MPX high amp connectors from the battery(ies) or the switch harness(es).
Because of its small and lightweight construction, the PowerJack 7018 is particular suited for middle and large models with long wiring and digital servos.
- Servobox: 16 ch 5 V impulse out plus 2 ch SBUS2 out
- Power Supply: single or double battery 4.8V - 8.5 V HV for the servos
- Rating: up to 30 Amps
- Connections: JR / Uni / Futaba with Goldpins
- Dimensions: 72 x 27 x 16 mm
- Weight: 26 g
- Package includes: PowerJack 7018 and two MPX connectors (suitable power switch harness see Item: [2222])
