Phoenix Models JDF02 Sea Hawk 1600mm 1: 6.25 EDF 120mm
Collect from Northampton or Glasgow but delivery is possible for an extra cost
Semi-scale British jet trainer aircraft for the drive blower with a diameter of 120 mm with an AC motor and 12s Li-poly battery experienced for pilots "jets".

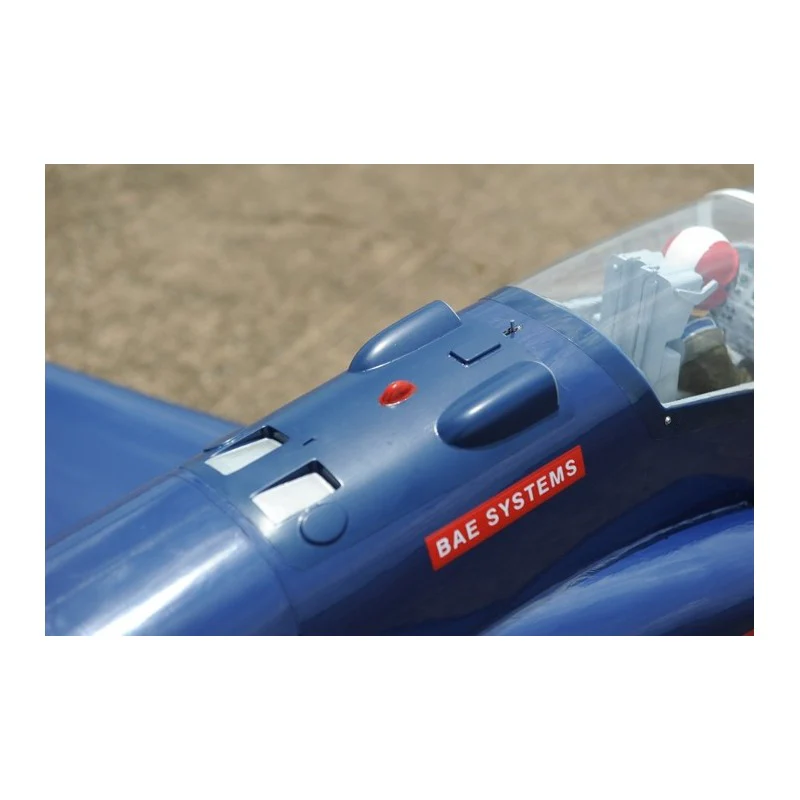

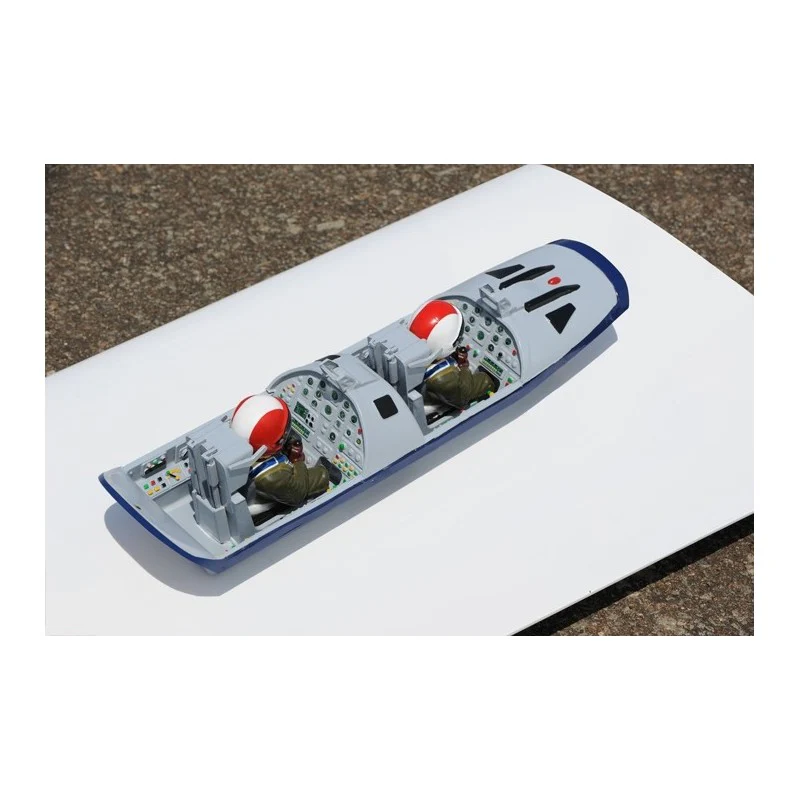

The fuselage of the model is the classic design of lightweight balsa and plywood with a detachable cockpit cover and covers the underside of the fuselage access allowing to the blower and on-board electronics. Supply "pipe" leading to the blower and the outlet nozzle of the laminate.
Wing with thin semi-directional "jet" is a two-part profile of a classic balsa construction torsion box with a rigid cover. Wing deployed on the side of the trio carbon tube joints. The ailerons and flaps are controlled by micro servos classified in the wing using the short straight rods.

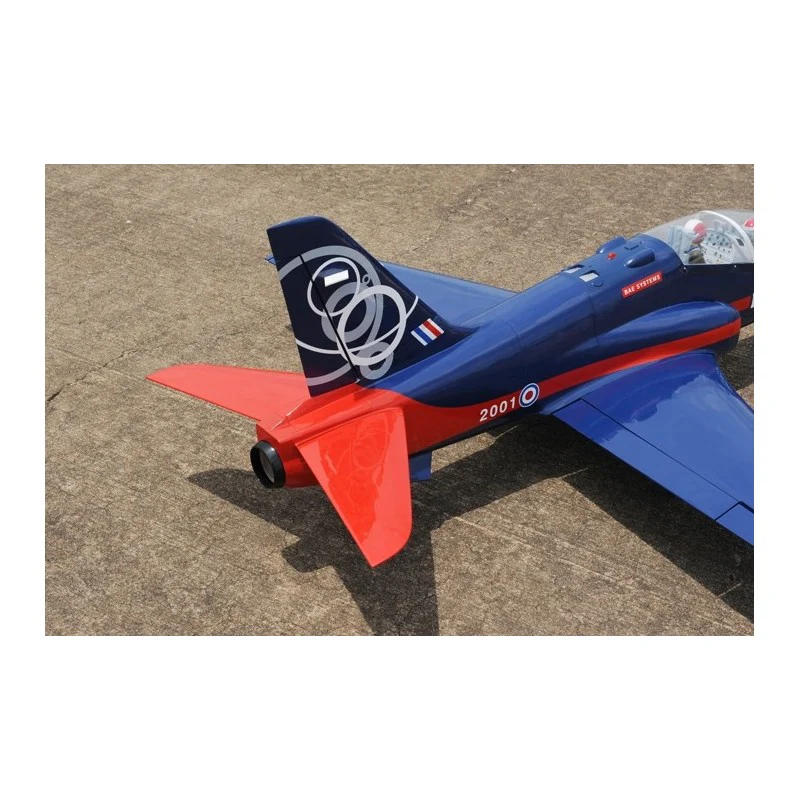

The tail surfaces are balsa, horizontal tail surface is a two-piece; the halves are pushed on a pipe joint. Servo control halves of the elevator are located in the fuselage; rudder servo is is the hardened in keel.

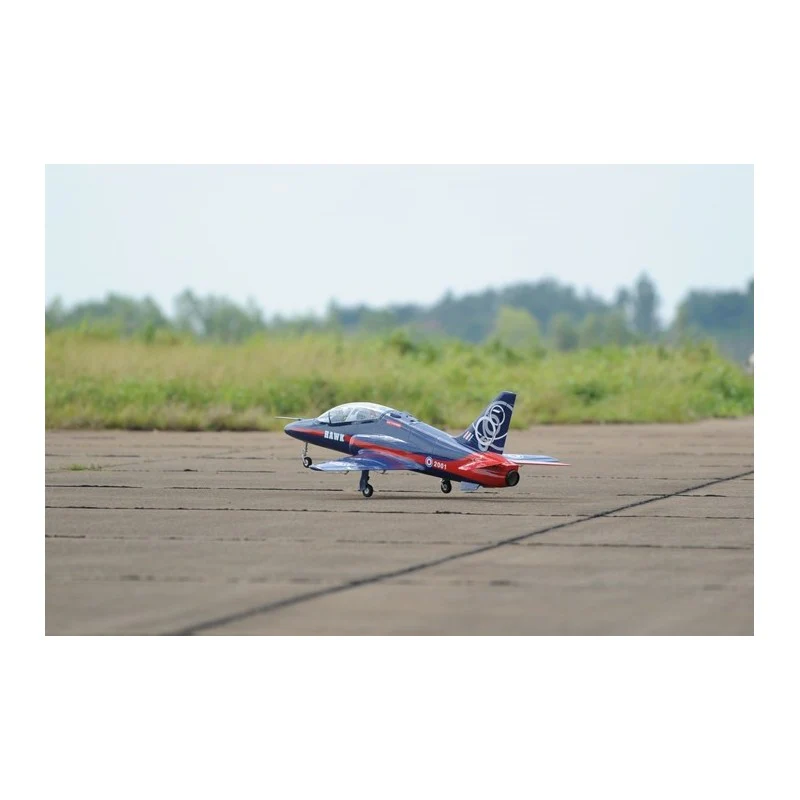

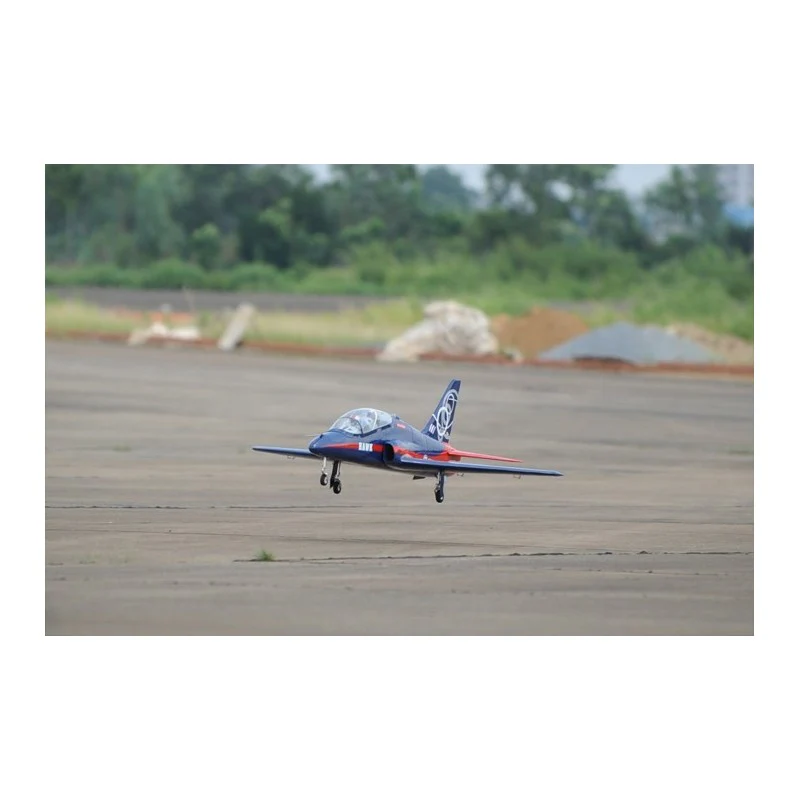

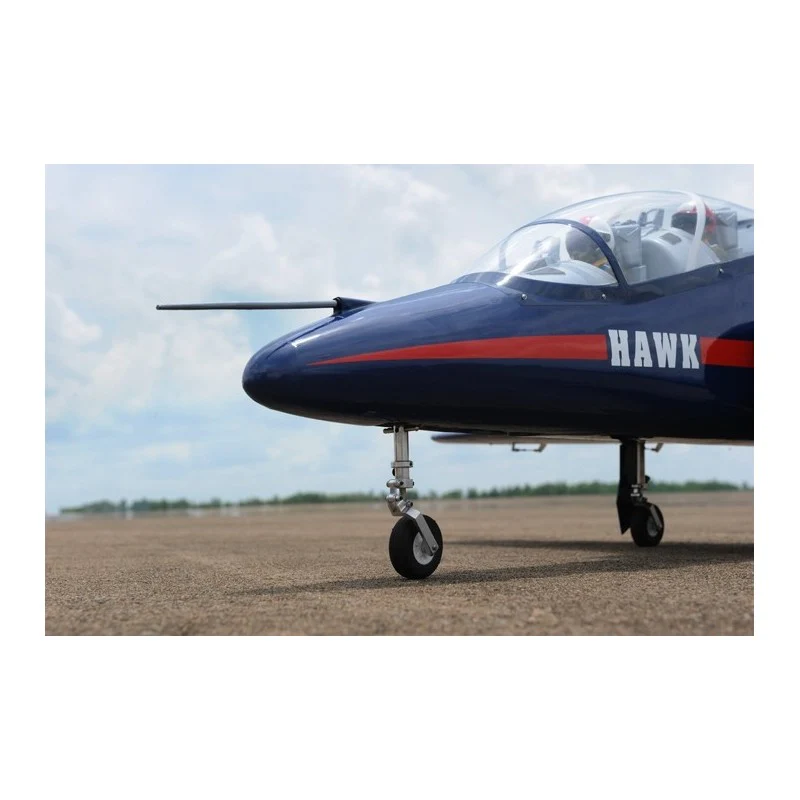

Landing gear consists of a pneumatic tricycle landing gear with a steerable bow legs, which can be found in the kit, including model sprung legs and wheels.
The model comes in a flashy blue-red colour combination; the whole model is coated with iron-on transfer Oracover.
To drive you need a 120 mm fan with a AC powerful motor with a thrust of at least 7 kg and 12S Li-poly battery 5000-6000 mAh capable of at least carrying 50C.

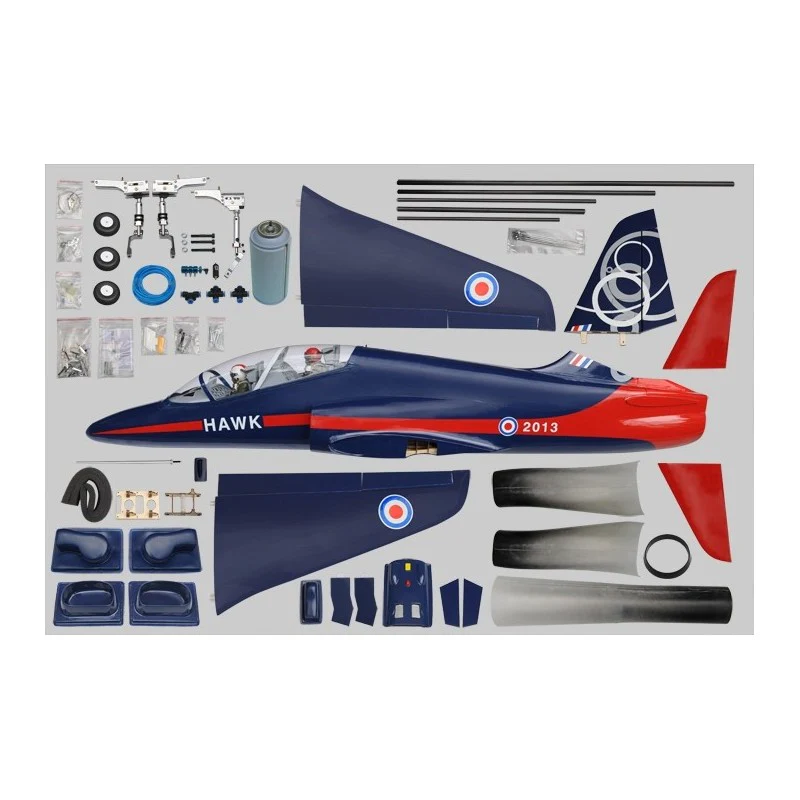

Kit includes: coated fuselage, wing and tail surfaces, fiberglass supply "pipes" and nozzle, pneumatic retractable landing gear, a set of small accessories and image guidance.
| Margin [mm] | 1600 |
| Length [mm] | 1700 |
| Weight [g] | 6800 - 7000 |
| Wing area [dm 2] | 48 |
| Controlled Functions | S, V (2), K (2), M, P, F (2), bow leg |
| Building Insti | S3 |
| Difficulty piloting | P3, P4 |
Recommended drive and RC equipment:
| Engine | 120 mm fan with an AC motor with a thrust of at least 7 kg |
| Regulator | 150-160 OPTO |
| The battery | 12S 5000-6000 mAh min 50C |
| Propeller | - |
| Servo | 9x HS-645MG |
| Servo digi | 9x D645MW |
| RC rig | Min. Channel 7 computer, the optimum is 9 or more channels |
