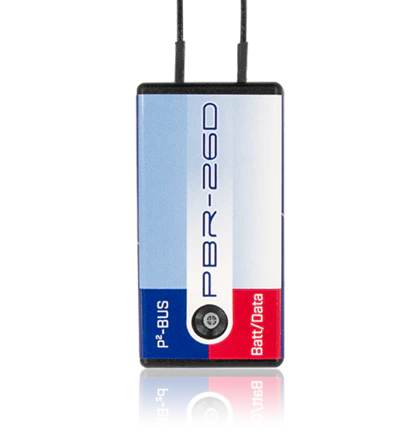

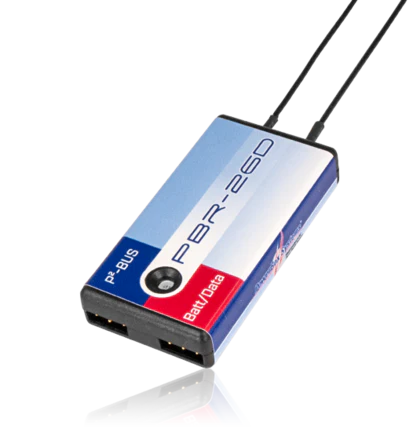

PowerBox PBR-26D 26 Channel 2.4GHz Receiver for CORE & ATOM 8240

PowerBox PBR-26D 26 Channel 2.4GHz Receiver for the Core Radio System 8240 Idea for connecting to a Powerbox SRS Units.

This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.

Features:

• 26 Channel 2.4GHz Receiver
• Two independent redundant receiver circuits
• Extreme interference rejection
• Ultra-long range
• No servo outputs; intended as receiver unit for PowerBox or FBL systems
• Option of integral iGyro
• Integral telemetry / servo bus (P²BUS)
• High-performance real-time telemetry
• Reception quality and airborne battery voltage available via telemetry as standard
• Auxiliary output can be configured as serial interface (S.BUS or SRXL)
• Parameters for all functions can be set from the transmitter

Technical Data:

Operating voltage	4.0V - 9.0V
Supported RC systems	CORE
Channels	26
Servo sockets	26
Servo signal resolution	4096 Bit
Integral gyro system	optional
Gyro sensor type	MEMS
Number of sensor axes	3
