PowerBox PBR-5S 5 Channel 2.4GHz Micro-Receiver for CORE & ATOM 8230

PowerBox PBR-5S 5 Channel 2.4GHz Micro-Receiver for CORE & ATOM Radio System 8230

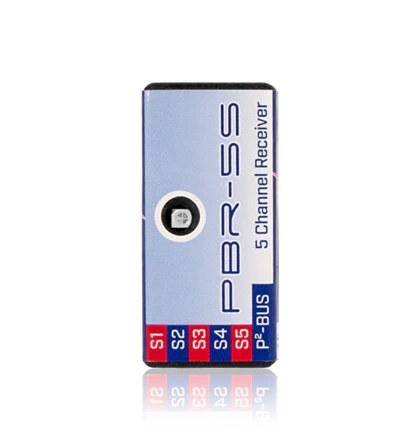

This is a five-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models. Output 5 can be set to S.BUS, SRXL or PPM signal from the transmitter; typical applications include use with flybarless systems or flight simulators

Features:

• 5 Channel 2.4GHz Micro-Receiver
• Extreme interference rejection
• ultra-long range
• Integral telemetry / servo bus (P²BUS)
• High-performance real-time telemetry
• Reception quality and airborne battery voltage available via telemetry as standard
• Output 5 selectable as FastTrack, PWM,S.BUS, SRXL or PPM12
• Parameters for all functions can be set from the transmitter

Technical Data:
Operating voltage: 4.0V - 9.0V
Current drain Power-on state: 60mA
Supported RC systems: ATOM/CORE
Channels: 26
Servo sockets: 5
Programmable servo outputs: SRXL, S.BUS, PPM12, PWM
Servo signal resolution: 4096 Steps
Signal frame rate: 12ms, 15ms, 18ms, 21ms
Supported telemetry systems: P²BUS
Dimensions: 44 x 20 x 12 mm
Weight: 7g
Temperature range: -30°C to +85°C
