$89.82
PowerBox PBR-7S 7 Channel 2.4GHz Receiver for CORE & ATOM 8220—
$89.82
The Story

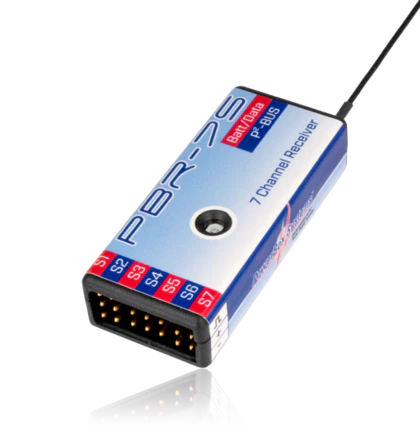

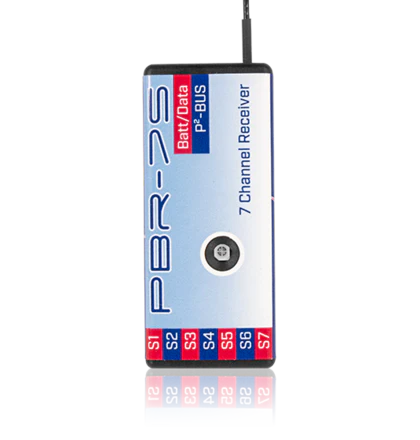

PowerBox PBR-7S 7 Channel 2.4GHz Receiver for the Core Radio System 8220
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.
Features:
- 7 Channel 2.4GHz Receiver
- Extreme interference rejection
- Ultra-long range
- Option of integral iGyro
- Integral telemetry / servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and airborne battery voltage available via telemetry as standard
- Auxiliary output can be configured as Channel 8 or as serial interface (S.BUS or SRXL)
- Parameters for all functions can be set from the transmitter
Technical Data:
| Operating voltage | 4.0V - 9.0V |
| Supported RC systems | CORE |
| Channels | 26 |
| Servo sockets | 7 (8) |
| Servo signal resolution | 4096 Bit |
| Integral gyro system | optional |
| Gyro sensor type | MEMS |
| Number of sensor axes | 3 |
| Supported telemetry systems | P²BUS |
| Dimensions | 52 x 22 x 12 mm |
| Weight | 12g |
| Temperature range | -30°C to +85°C |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
PowerBox PBR-7S 7 Channel 2.4GHz Receiver for the Core Radio System 8220
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.
Features:
- 7 Channel 2.4GHz Receiver
- Extreme interference rejection
- Ultra-long range
- Option of integral iGyro
- Integral telemetry / servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and airborne battery voltage available via telemetry as standard
- Auxiliary output can be configured as Channel 8 or as serial interface (S.BUS or SRXL)
- Parameters for all functions can be set from the transmitter
Technical Data:
| Operating voltage | 4.0V - 9.0V |
| Supported RC systems | CORE |
| Channels | 26 |
| Servo sockets | 7 (8) |
| Servo signal resolution | 4096 Bit |
| Integral gyro system | optional |
| Gyro sensor type | MEMS |
| Number of sensor axes | 3 |
| Supported telemetry systems | P²BUS |
| Dimensions | 52 x 22 x 12 mm |
| Weight | 12g |
| Temperature range | -30°C to +85°C |
