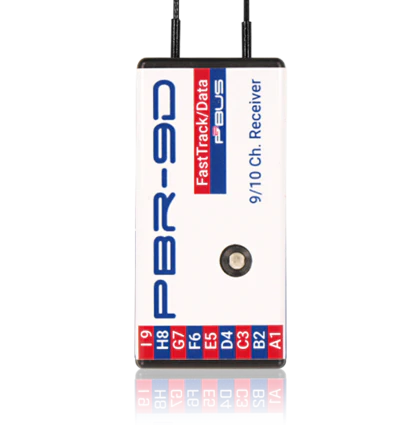

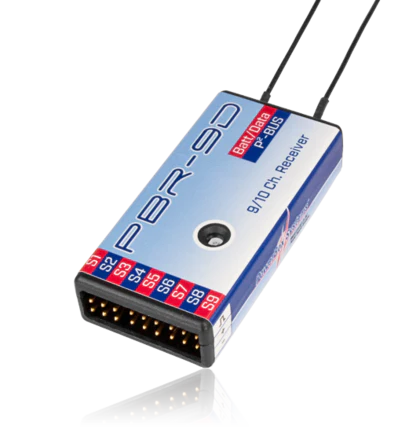

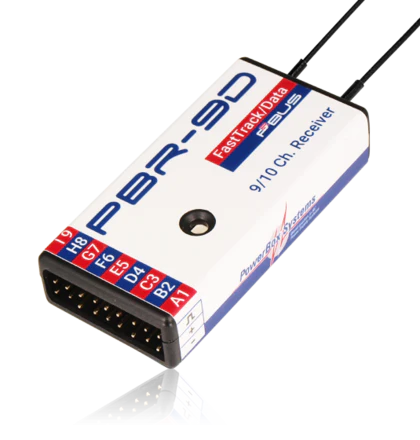

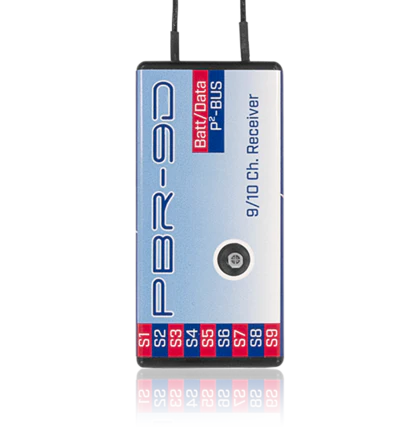

PowerBox PBR-9D 9 Channel 2.4GHz Receiver for the Core Radio System 8210
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.
Features:
- 9 Channel 2.4GHz Receiver
- Two independent redundant receiver circuits
- Extreme interference rejection
- Ultra-long range
- Option of integral iGyro
- Integral telemetry / servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and airborne battery voltage available via telemetry as standard
- Auxiliary output can be configured as Channel 10 or as serial interface (S.BUS or SRXL)
- Parameters for all functions can be set from the transmitter
Technical Data:
| Operating voltage | 4.0V - 9.0V |
| Supported RC systems | CORE |
| Channels | 26 |
| Servo sockets | 9 (10) |
| Servo signal resolution | 4096 Bit |
| Integral gyro system | optional |
| Gyro sensor type | MEMS |
| Number of sensor axes | 3 |
| Supported telemetry systems | P²BUS |
| Dimensions | 57 x 27 x 12 mm |
| Weight | 17g |
| Temperature range | -30°C to +85°C |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
PowerBox PBR-9D 9 Channel 2.4GHz Receiver for the Core Radio System 8210
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.
Features:
- 9 Channel 2.4GHz Receiver
- Two independent redundant receiver circuits
- Extreme interference rejection
- Ultra-long range
- Option of integral iGyro
- Integral telemetry / servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and airborne battery voltage available via telemetry as standard
- Auxiliary output can be configured as Channel 10 or as serial interface (S.BUS or SRXL)
- Parameters for all functions can be set from the transmitter
Technical Data:
| Operating voltage | 4.0V - 9.0V |
| Supported RC systems | CORE |
| Channels | 26 |
| Servo sockets | 9 (10) |
| Servo signal resolution | 4096 Bit |
| Integral gyro system | optional |
| Gyro sensor type | MEMS |
| Number of sensor axes | 3 |
| Supported telemetry systems | P²BUS |
| Dimensions | 57 x 27 x 12 mm |
| Weight | 17g |
| Temperature range | -30°C to +85°C |
