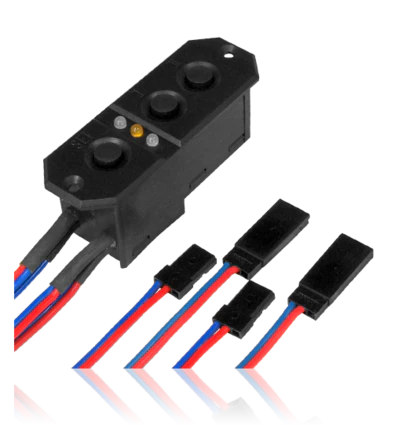

PowerBox Sensor Switch 7.4v JR/JR 6311 Replaced by the V3 6330

PowerBox Sensor Switch 7.4v 6311 with JR Connectors Replaced by the V3 6330

For those modellers that want to use a high voltage 2s system but want a switch that will work at those voltages safely and with a regulated 7.4 volt supply giving consistent servo speed.



This fantastic Powerbox Switch is not just a switch.



It combines a pair of independent regulated 5 amp receiver outputs all mounted in a neat twin switch housing with battery leds.



•Power handling up to 5.0 Amps (according to heatsink)



• Power supply: ◦2 x 2-cell LiPo battery, 7.4 Volt



◦2 x 5-cell NiCd or NiMH batteries



◦2 x 2-cell LiFePo battery (A123)



•Two independent linear voltage regulators, supplying 5.90 Volts •Two independent electronic switches •Two volt controller ( in 4 steps ) for each battery NEW •Two Low voltage memory for both batteries NEW •SET button for On / Off switching protection •LED indicators for both power circuits •Operating voltage range 4.0 to 9.0 Volts •Temperature range -10° to +75° C •Voltage loss approx. 0.35 Volts •Weight only 35 grammes incl. all cables



Operating voltage	4.0V - 9.0V
Power supply	2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state	30mA
Current drain Standby	5µA
Maximum load current	Peak 2x4A
Drop-out voltage	0.3V
Output voltage	7.4V regulated
Dimensions	65 x 23 x 26 mm



Please follow this link for the manual. http://www.powerbox-systems.com/shared/download/bedienungsanleitungen/PowerBox_Sensor_englisch_f.pdf

6311
