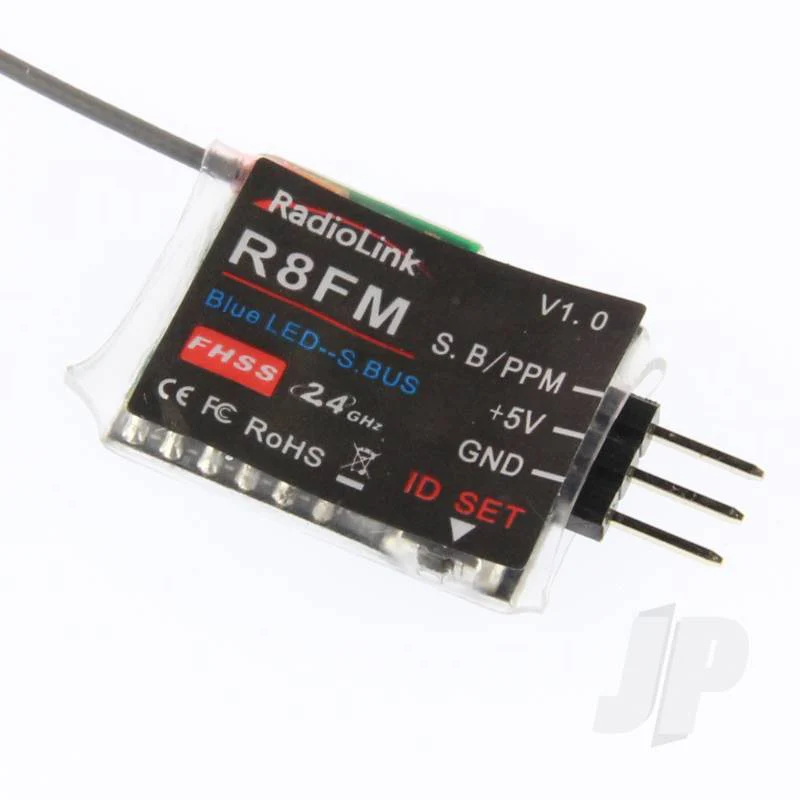

RadioLink R8FM 2.4GHz 8-Channel Mini Receiver RLKR081006
2000 Meters Control Distance
Same FHSS* spread spectrum algorithm as AT9S Pro and 67-channel pseudo-random frequency hopping help reduce overall signal interference.
2000 meters (1.24 Miles) * range enables all possible RC fun.
* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.
* Maximum range is tested in an unobstructed area free of interference.
SBUS or PPM Signal Output
8 channels of SBUS/PPM signal output.
Compatible with PIXHWAK, MINI PIX, TURBO PIX, and APM flight controllers which support SBUS or PPM signal.
Weight of 2.5g(0.09oz) and small size of 30*17.5mm (1.18"*0.69") make R8FM is tiny enough even for mini racing drone and glider.
â‘ How to output RSSI value from receiver R8SM/R8FM to FPV when connect to Betaflight F4/F7:Â https://www.radiolink.com/newsinfo/504919.html
② How to output RSSI value from receiver R8SM/R8FM to FPV when connect to the Mini Pix/TURBO PiX/PIXHAWK: https://www.radiolink.com/newsinfo/504912.html
Key Features:
- Compatibility: T8S, T8FB
- Channels: 8 channel
- Working voltage: 4.8 - 6v
- Working current: 30mA (input voltage 5v）
- 2048 section precision: 0.5us per section
- Control distance: about 300m ground and 600m air, actually control distance depends on the environment being used
- Output: S-Bus & PPM
Â
Receiver Technical Specifications:
Weight:Â 2.5g 0.09oz
Size: 30*17.5mm (1.18"*0.69")
Channels Qty: 8 channels
Signals: SBUS/PPM
Operating Voltage: 3~6VÂ
Operating Current: 38-45mA@5V
Antenna Length: 85mm
Section Precision: 4096, 0.25us per sectionÂ
Control distance: 2000 meters (1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).Â
Compatible transmitter:Â T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS(must work with flight controller)
Great for use with the RadioLink PPM Wireless Trainer Cable (RLKA001006) to help link with the RadioLink T8FB-BT 2.4GHz 8-Channel Transmitter and another Transmitter to help teach a budding pilot to learn to fly with minimal pressure. More details on the listing for the RadioLink PPM Wireless Trainer Cable.
Click here for User Manual
