SAVOX HV Digital Mini Size Servo 12kg/0.055s@7.4v SV1260MG Now Approved HV 8.4v

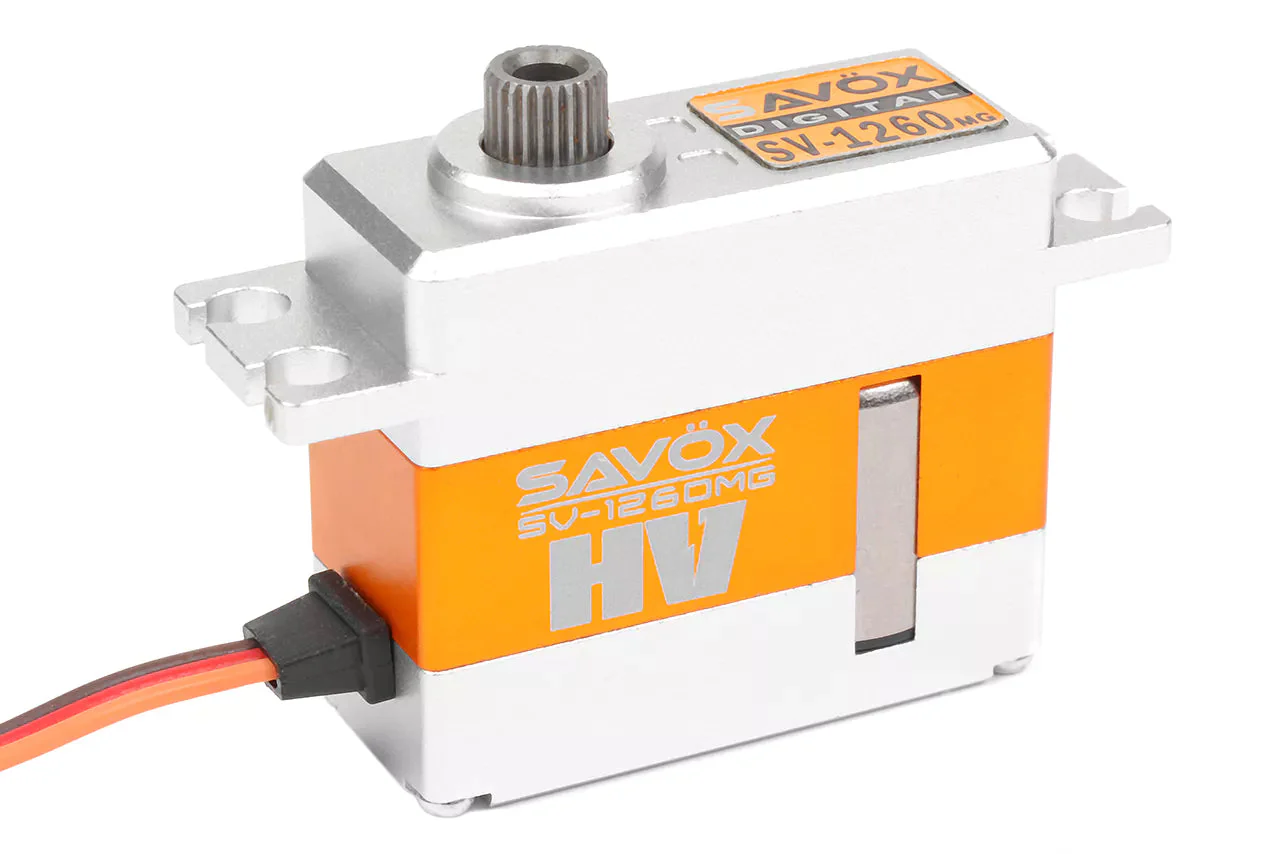

The SV-1260MG is a mini-sized, digital, high voltage, metal-geared servo with an all aluminium case and metal gearset, making it one of the strongest and fastest mini servos available. FEATURES Metal gear train provide durability against heavy use. Capable of HV operation. All aluminium case provides strength and cooler operating temperatures.

SPECIFICATIONS:
Torque @6v - 8.0kg/111.1oz-in
Torque @7.4v - 12.0kg/166.6oz-in
Speed @6v - 0.065 sec/60 deg
Speed @7.4v - 0.055 sec/60 deg

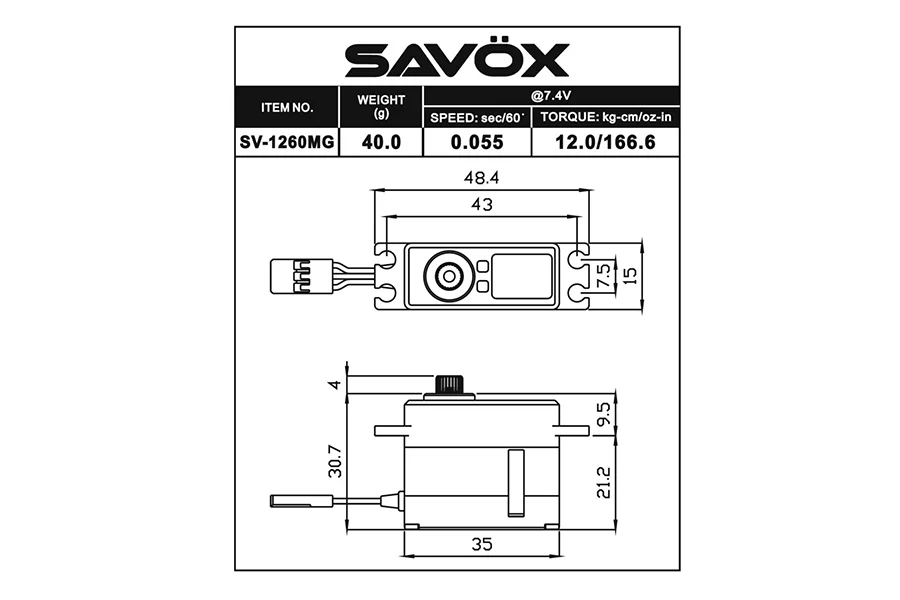

Dimensions L x W x H (mm): 35.0 x 15.0 x 30.7
Weight: 40.0g

TECHNICAL DETAILS:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 180mA @7.4V
Stall Current (at locked): 4000mA @6.0 V, 4700mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V

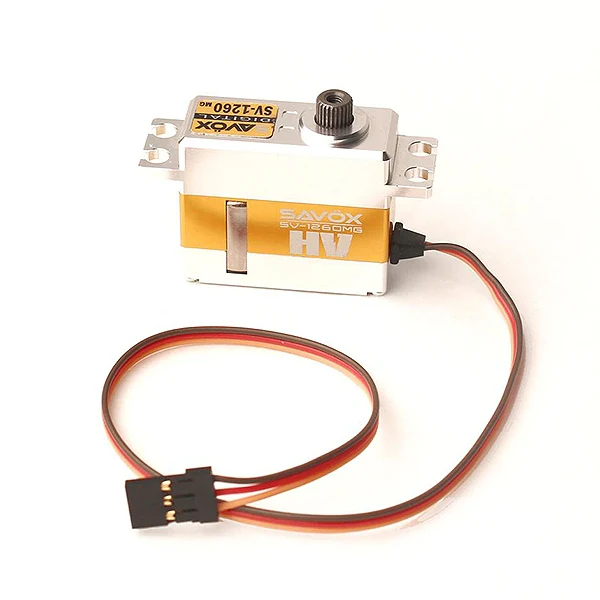

Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ
Second Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 165° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
