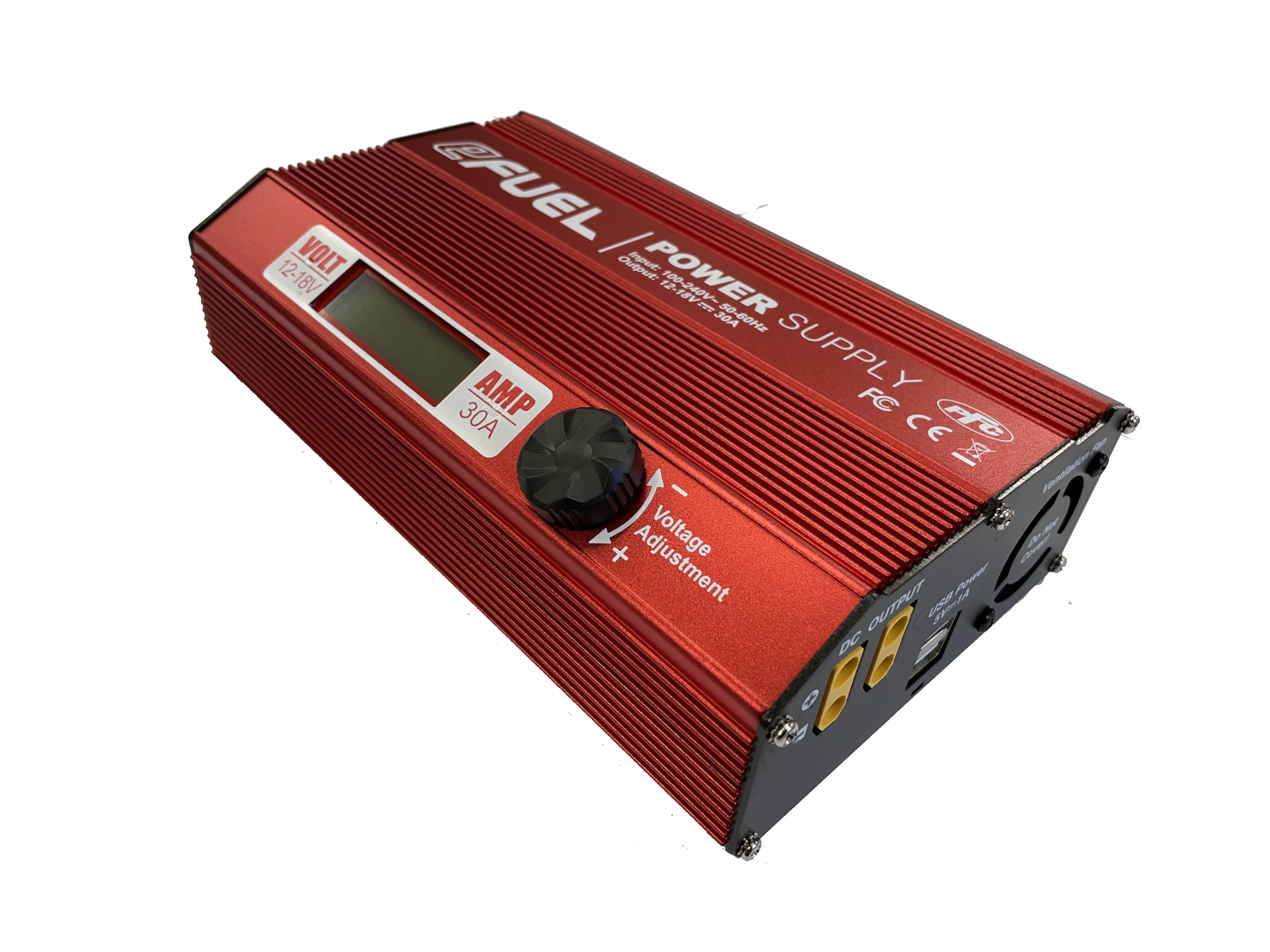

SkyRC eFuel 30A 540W Power Supply SK-200013-01

SkyRC eFuel 30A 540W Power Supply SK-200013-01

Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipment's that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.

Features

• Two DC power outputs, up to 30 amperes XT90 Connectors
• Output voltage adjustable 12-18V
• Large LCD indicates voltage and current amperes output
• Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
• Smart cooling fan
• Over temperature protection
• Over loading protection
• Short circuit protection

Specifications:
Voltage - 100-240V AC
Input AC Frequency - 50-60Hz
Output Voltage - 12-18V DC±0.5V
Output Current - 30A±1A
Current Overload Protection - =31A 500MS
Input Fuse - 10A Fuse
LCD Display - Voltage Precision ±0.3V
Output Voltage Ripple - < 150mV
Power Efficiency - 89%
Power Factor - > 0.98
Over Temperature Protection - <65?
Cooling Method - Cooling Fan
Operating Temperature - 0-40?
Operating Humidity - 0-90%
Dimensions (LxWxH) - 218x139x59.5mm
Net weight - 1.62kg Sky RC
