The Story

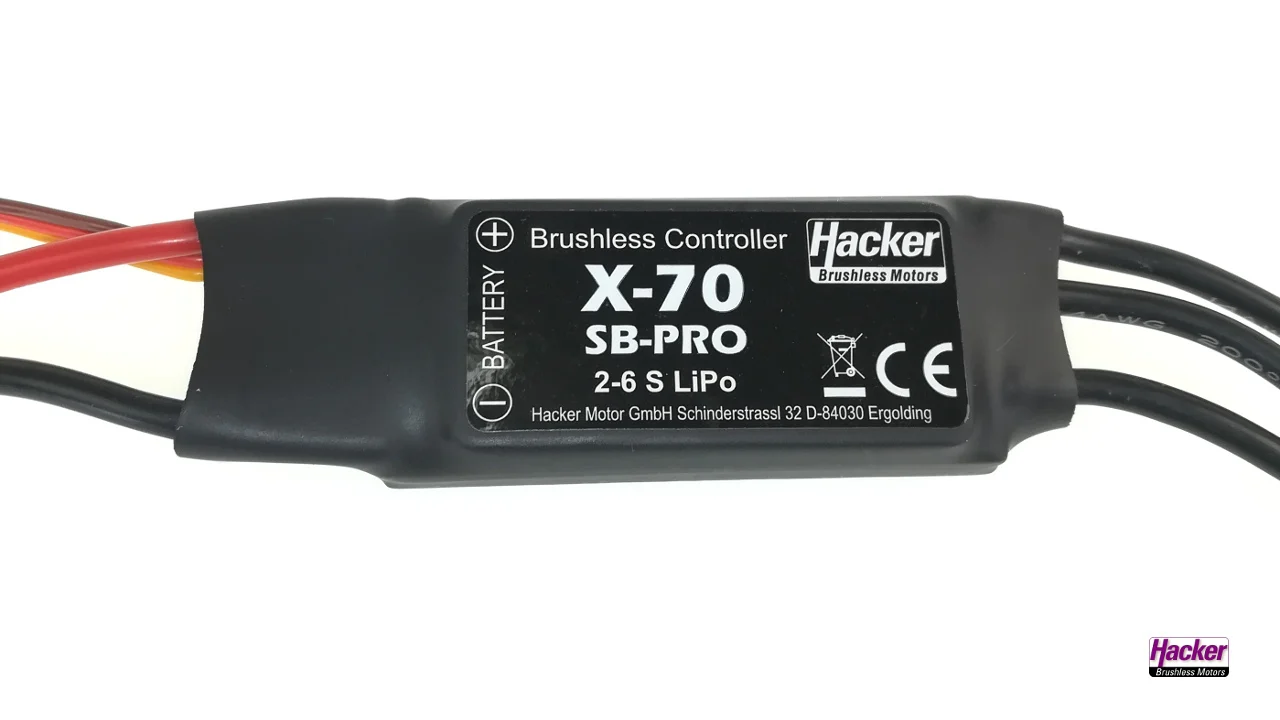

Speed Controller X-70-SB-Pro 2 to 6s ESC from Hacker 87200006
The Hacker X-Pro series is a sensor-less speed specially controller developed for brushless motors. All variants are paternity by high and stable performance, compact design and low weight. The switching BEC is set to 5.5 volts and can be operated with 2-6 servos. From the X-7-Pro.10.201n, the speed controllers can be programmed via the separately available USB interface V2. You will find this in the Accessories tab, among others. X-Pro controller speed can also be programmed via the remote control. The various adjustable operating modes make X-Pro speed controllers suitable for all flight applications such as powered flight, electric Gliders and helicopters.
Standard settings for fixed-wing models as delivered
- Brake / brake: Off / off
- Battery type / battery type: LiPo
- Undervoltage detection / recognition of undervoltage: 3.2V / cell* / 3.2V / cell*
- Undervoltage / behaviour under voltage behaviour: reducing power
- Acceleration (gas acceptance) / acceleration: fast / fast
- Timing: Car
- Frequency / frequency: 8KHz
Scope of delivery
1x Speed Controller X-70-SB-Pro 2..6S, 1x manual
| Specifications | |
| Operating range [Cells] | 2-6 |
| Permanent current [A] | 70 |
| BEC Voltage [V] | 5.5 |
| Permanent current BEC [A] | 3 |
| Dimensions and weight | |
| Dimensions LxWxH [mm] | 78x28x14 |
| Weight with cables [g]/[oz] | 80 |
| Delivery contents | |
| Settings | Transmitter / USB Interface |
| Plug to battery | XT90 |
| Socket to motor | 3.5 |
Description
Speed Controller X-70-SB-Pro 2 to 6s ESC from Hacker 87200006
The Hacker X-Pro series is a sensor-less speed specially controller developed for brushless motors. All variants are paternity by high and stable performance, compact design and low weight. The switching BEC is set to 5.5 volts and can be operated with 2-6 servos. From the X-7-Pro.10.201n, the speed controllers can be programmed via the separately available USB interface V2. You will find this in the Accessories tab, among others. X-Pro controller speed can also be programmed via the remote control. The various adjustable operating modes make X-Pro speed controllers suitable for all flight applications such as powered flight, electric Gliders and helicopters.
Standard settings for fixed-wing models as delivered
- Brake / brake: Off / off
- Battery type / battery type: LiPo
- Undervoltage detection / recognition of undervoltage: 3.2V / cell* / 3.2V / cell*
- Undervoltage / behaviour under voltage behaviour: reducing power
- Acceleration (gas acceptance) / acceleration: fast / fast
- Timing: Car
- Frequency / frequency: 8KHz
Scope of delivery
1x Speed Controller X-70-SB-Pro 2..6S, 1x manual
| Specifications | |
| Operating range [Cells] | 2-6 |
| Permanent current [A] | 70 |
| BEC Voltage [V] | 5.5 |
| Permanent current BEC [A] | 3 |
| Dimensions and weight | |
| Dimensions LxWxH [mm] | 78x28x14 |
| Weight with cables [g]/[oz] | 80 |
| Delivery contents | |
| Settings | Transmitter / USB Interface |
| Plug to battery | XT90 |
| Socket to motor | 3.5 |
