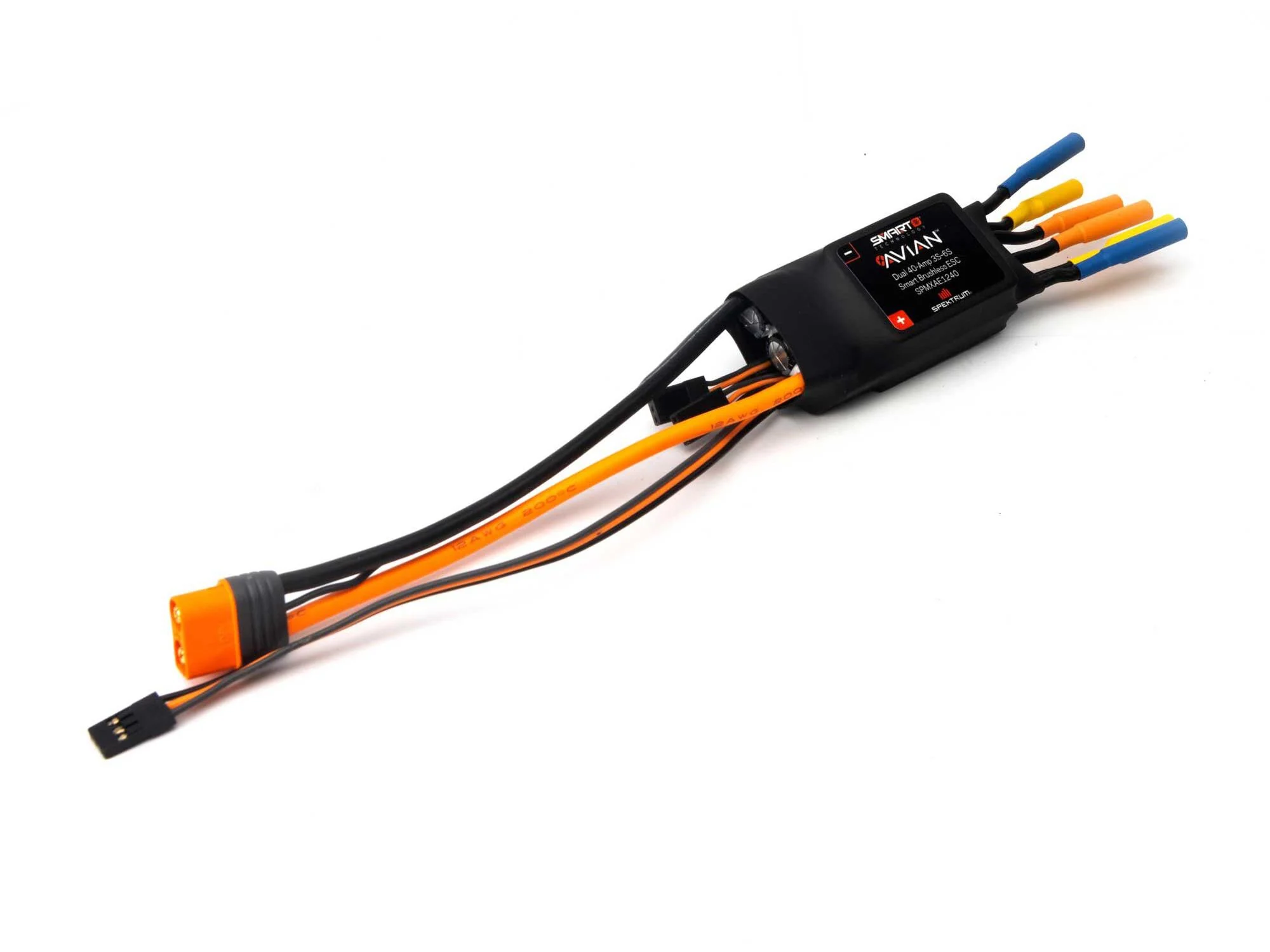

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240
HomeStore

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240

$36.94

Original: $105.53

-65%
Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240

$105.53

$36.94

The Story

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240

The Spektrum Avian Smart 40A Dual Brushless ESC is the perfect upgrade for 3S-6S twin EDF jets and other twin-powered models. Like other Spektrum Avian ESCs, this ESC delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.

SMART TECHNOLOGY OVERVIEW

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Avian Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Product Features

  • Smart all-in-one telemetry
  • 2 x 40 Amp continuous current
  • Fast, powerful 32-bit ARM M4 processor
  • 2 Program wires with multiple programming options:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
    • Compact for easy installation in most applications
    • Heat dissipating design
    • Ready to install — no soldering required
    • High heat-resistant IC5™ connector, is backwards compatible with EC5™ connectors
    • Limited 1-year warranty

Product Specification

Programmable Yes
Programming Options Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Adjustable Timing Yes
Connector Type IC5
ESC Type Brushless
Product Length 2.36" (60 mm)
Amperage 16A - 44A
BEC Type Switch-Mode
Max Input Voltage 22.2V
BEC Maximum Burst Current 20A
BEC Voltage 5.0V / 7.4V Adjustable
Input Voltage 3S-6S LiPo
Motor Output Lead 4mm
Product Application Air
Product Height 0.78" (20 mm)
BEC Yes
Application Air
Auto Cutoff Yes
BEC Continous Current 7
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
Product Weight 105g
Forward Yes
Reverse Yes
Wire Gauge 14 AWG
Maximum Burst Current 60A
Maximum Continuous Current 40A
Battery Input Lead IC5
Product Width 1.37" (35 mm)
Technology Smart

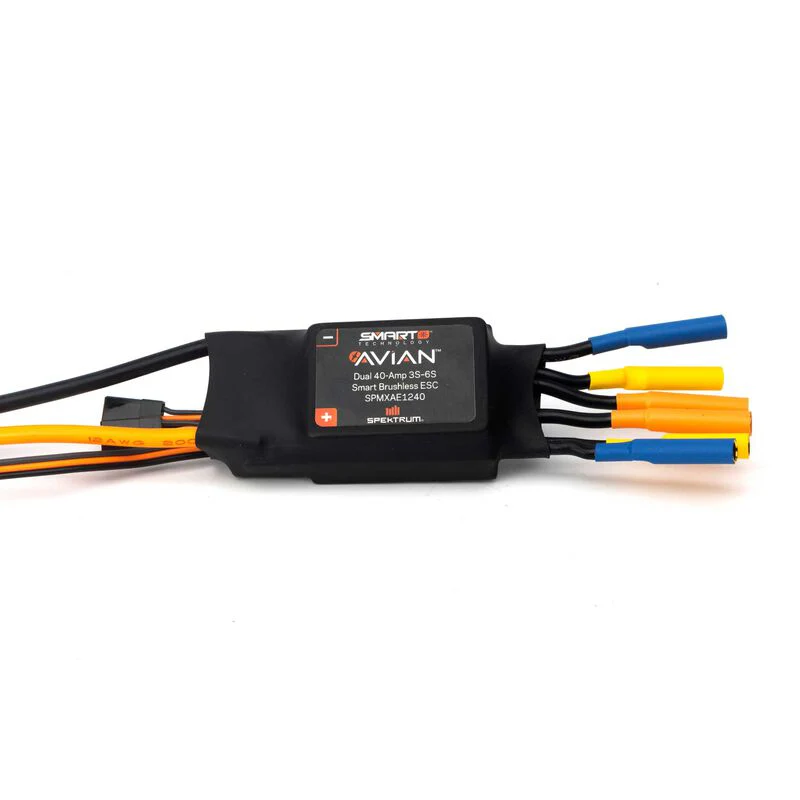

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

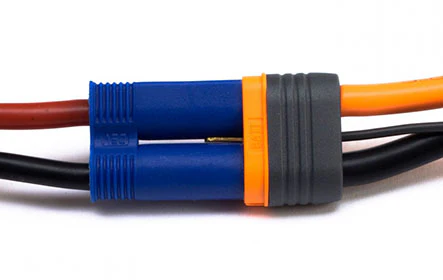

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S SPMXAE1240

The Spektrum Avian Smart 40A Dual Brushless ESC is the perfect upgrade for 3S-6S twin EDF jets and other twin-powered models. Like other Spektrum Avian ESCs, this ESC delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.

SMART TECHNOLOGY OVERVIEW

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Avian Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Product Features

  • Smart all-in-one telemetry
  • 2 x 40 Amp continuous current
  • Fast, powerful 32-bit ARM M4 processor
  • 2 Program wires with multiple programming options:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
    • Compact for easy installation in most applications
    • Heat dissipating design
    • Ready to install — no soldering required
    • High heat-resistant IC5™ connector, is backwards compatible with EC5™ connectors
    • Limited 1-year warranty

Product Specification

Programmable Yes
Programming Options Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Adjustable Timing Yes
Connector Type IC5
ESC Type Brushless
Product Length 2.36" (60 mm)
Amperage 16A - 44A
BEC Type Switch-Mode
Max Input Voltage 22.2V
BEC Maximum Burst Current 20A
BEC Voltage 5.0V / 7.4V Adjustable
Input Voltage 3S-6S LiPo
Motor Output Lead 4mm
Product Application Air
Product Height 0.78" (20 mm)
BEC Yes
Application Air
Auto Cutoff Yes
BEC Continous Current 7
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
Product Weight 105g
Forward Yes
Reverse Yes
Wire Gauge 14 AWG
Maximum Burst Current 60A
Maximum Continuous Current 40A
Battery Input Lead IC5
Product Width 1.37" (35 mm)
Technology Smart
