$20.20
Spektrum Spektrum 2.3gm Performance Linear Long Throw Servo SPMSA2030L—
$20.20
The Story

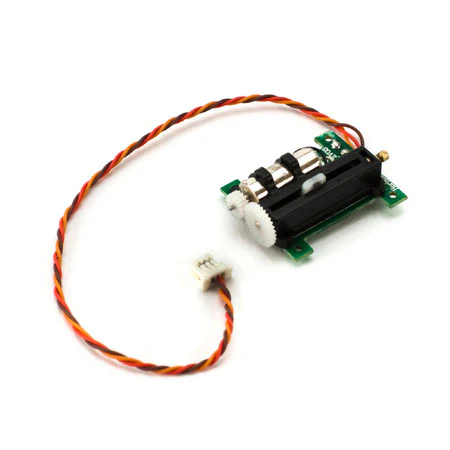

Spektrum Spektrum 2.3gm Performance Linear Long Throw Servo SPMSA2030L
The 2.3-gram Linear Long Throw Offset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 offset from center and can be used with any Spektrum AR6400-series receiver.
Features
- Long throw offset servo is perfect for controlling ailerons on ultra micro models
- Offset provides for built-in differential
- JST-SHR Connector
Application: Airplane
Bearing: Single
Bushing Or Bearing: Bearing
Connector Type: JST-SHR 1.0 mm
Gear Type: Nylon
Input Voltage: 3.2V-4.2V
Maximum Servo Speed: 0.10 @ 4.2V
Maximum Servo Torque: 3.5 oz/in @ 4.2V
Motor Type: Brushed
Product Application: Air
Product Height: 0.33" (8 mm)
Product Length: 0.87" (22 mm)
Product Weight:Â 0.10oz (2.50g)
Product Width: 0.66" (17 mm)
Programmable: No
Servo Operating Voltage: 3.2 - 4.2V
Servo Size Category: Ultra Micro
Servo Type: Analog
Water-Resistant: No
| Spec | Data |
|---|---|
| Speed @ 4.8V |
0.10s/60°
|
| Torque @ 4.8V |
0.10Kg/cm
|
| Weight |
2.3g
|
| Bearings | Single BB |
| Height |
8.2mm
|
| Length |
22.0mm
|
| Width |
16.9mm
|
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Spektrum Spektrum 2.3gm Performance Linear Long Throw Servo SPMSA2030L
The 2.3-gram Linear Long Throw Offset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 offset from center and can be used with any Spektrum AR6400-series receiver.
Features
- Long throw offset servo is perfect for controlling ailerons on ultra micro models
- Offset provides for built-in differential
- JST-SHR Connector
Application: Airplane
Bearing: Single
Bushing Or Bearing: Bearing
Connector Type: JST-SHR 1.0 mm
Gear Type: Nylon
Input Voltage: 3.2V-4.2V
Maximum Servo Speed: 0.10 @ 4.2V
Maximum Servo Torque: 3.5 oz/in @ 4.2V
Motor Type: Brushed
Product Application: Air
Product Height: 0.33" (8 mm)
Product Length: 0.87" (22 mm)
Product Weight:Â 0.10oz (2.50g)
Product Width: 0.66" (17 mm)
Programmable: No
Servo Operating Voltage: 3.2 - 4.2V
Servo Size Category: Ultra Micro
Servo Type: Analog
Water-Resistant: No
| Spec | Data |
|---|---|
| Speed @ 4.8V |
0.10s/60°
|
| Torque @ 4.8V |
0.10Kg/cm
|
| Weight |
2.3g
|
| Bearings | Single BB |
| Height |
8.2mm
|
| Length |
22.0mm
|
| Width |
16.9mm
|
